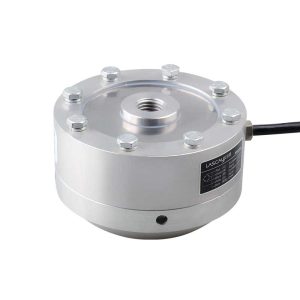

Pancake Force Sensor

The Pancake Force Sensor is a small, precise tool for measuring force. It’s perfect for tight spaces where accuracy matters. The low-profile, disk-shaped design lets you measure force without raising system height much. This makes the sensor great for tight or integrated mechanical setups. You can monitor both tension and compression forces with stable and repeatable performance.

A Pancake load cell finds use in various applications. These include industrial force monitoring, press-fit systems, material testing equipment, and automation lines. The wide loading surface distributes force uniformly across its area. This cuts down on off-axis effects and boosts measurement reliability. Pancake load cells are often made from high-strength alloy steel or stainless steel. This choice ensures they are durable and can resist overload. They also provide long-term stability under constant loads.

Pancake force sensors come in many capacities. They can measure low forces or handle high loads for industrial use. The design allows for easy installation between two flat surfaces. It also works well with control systems, amplifiers, and data acquisition units. Pancake load cells are a top choice for precision force measurement. They offer a compact size, high stiffness, and accurate force feedback. This makes them ideal for tough environments.
