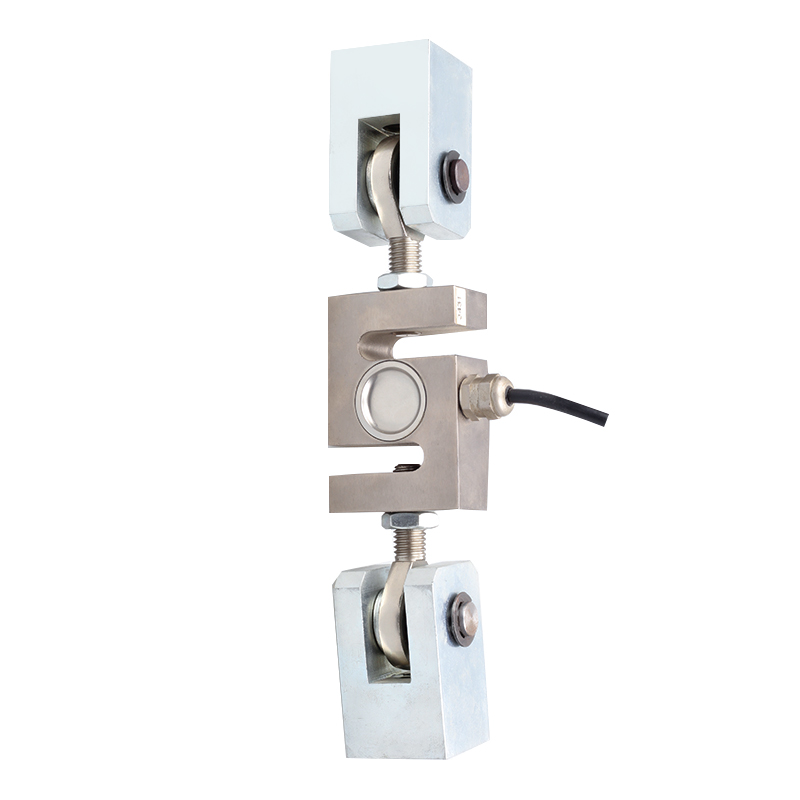

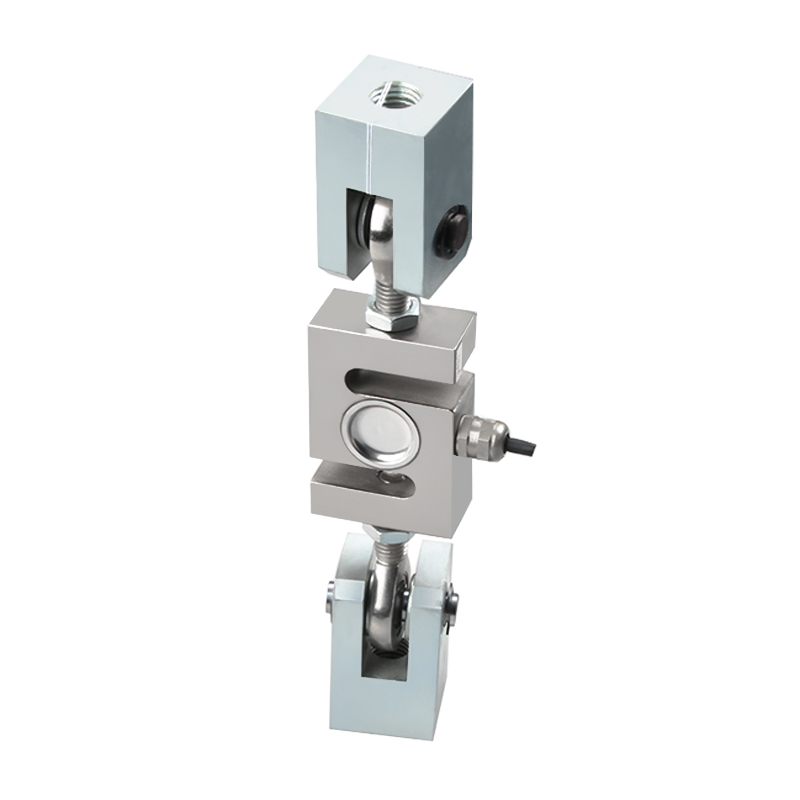

101M S-Type Load Cell for Hoisting and Lifting Weighing
Short Description:
Designed for precise hoisting and lifting measurements, this S-Type load cell is ideal for tank batching process weighing, force control, and various industrial weighing applications.
Payment: T/T, L/C, PayPal
Features:
- High accuracy load cell, High comprehensive precision
- Unique structure, easy to install
- Easy to replace Reducing load cell damage and plant down-time
- Be suitable for tanks and others weighing control
Description:
The 101m weighing module uses STC high quality sensor, high weighing accuracy, good long-term stability, protection grade IP66. Suitable for tank batching process weighing control and other occasions. The 101M weighing module uses the S-type sensor STC, 5kg to 5T optional. Each weighing module comes with a pair of U-shaped connectors and pins, galvanized carbon steel hardware, strong enough to support stable containers, and can be mounted on a wide variety of industrial equipment for use on any hopper or container that provides suspension.
Applications:
Suitable for tank batching process weighing control and other occasions.

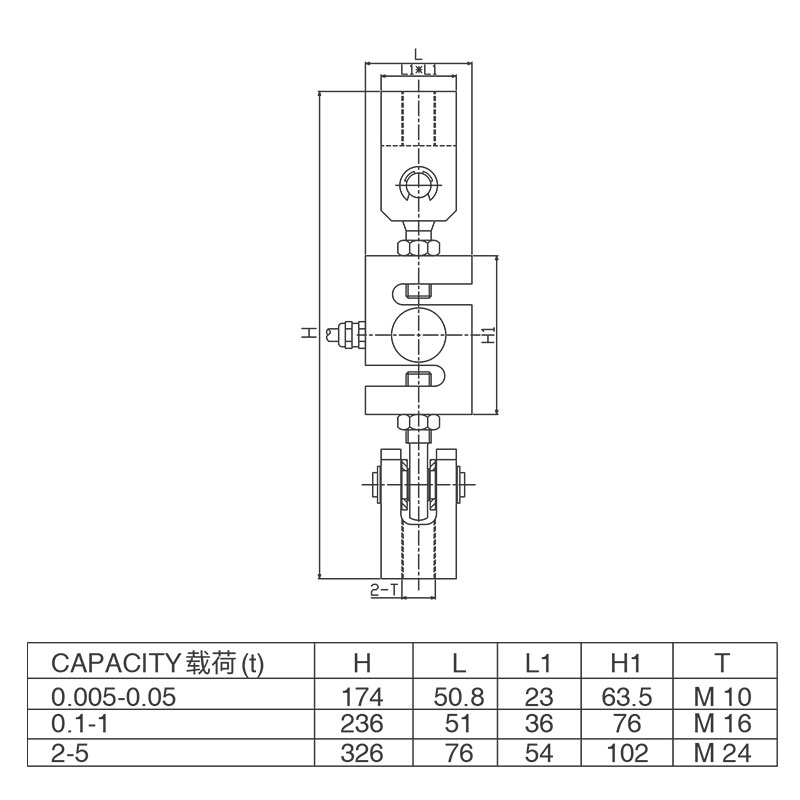

Dimensions:
Parameters:
| Specifications: | ||
| Load Cell | STC | |
| Rated Load(R.C.) | t | 5,10,20,50,100,200,300,500 |
| Rated Output(R.O.) | mV/V | 2.0±0.0050 |
| Safe overload | %R.C. | 50 |
| Ultimate overload | %R.C. | 300 |
| Protection class | IP66 | |
| Ex: | Red:+Black:- | |
| Wiring code | Sig: | Green:+White:- |
| Shield: | Bare | |
