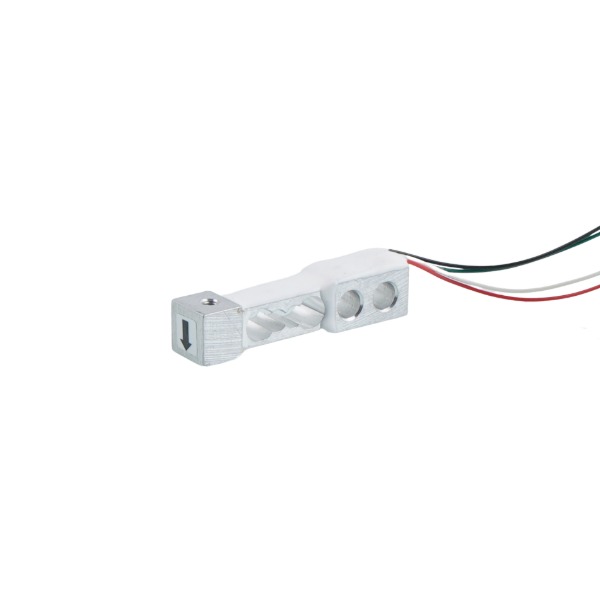

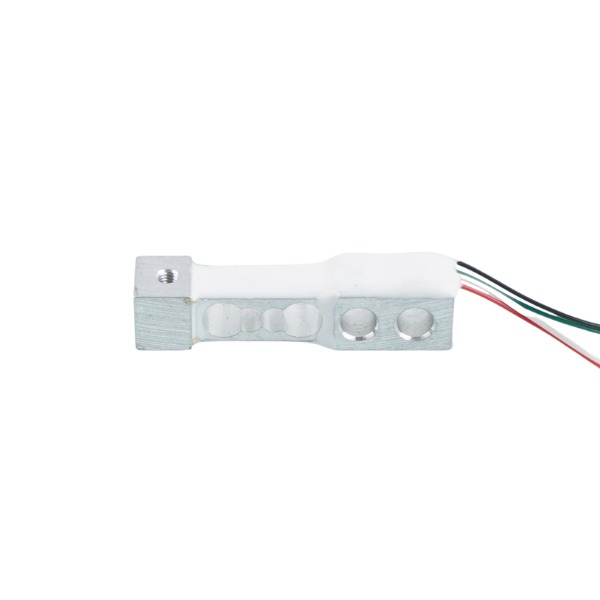

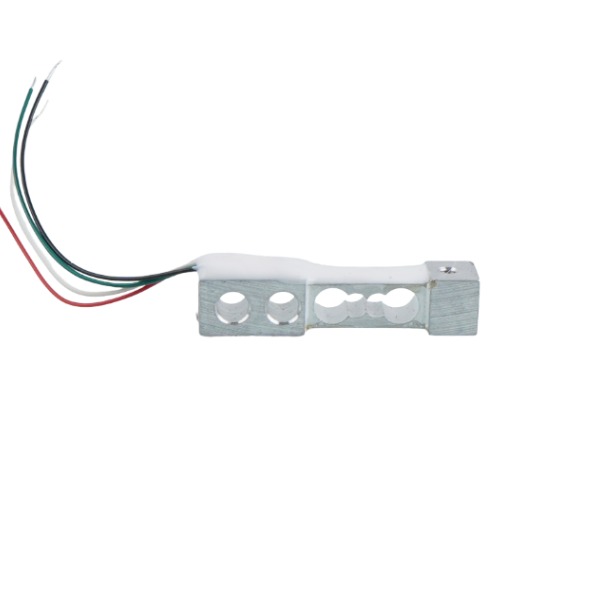

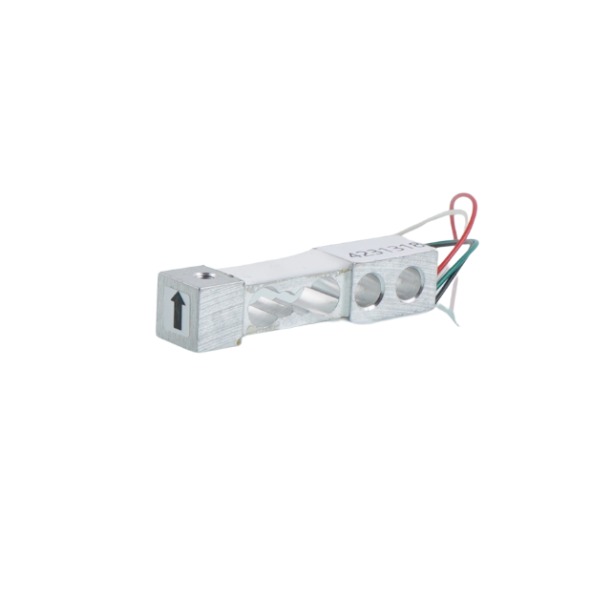

106B Kitchen Scale Load Cell Sensor (Single Point Type)
Short Description:
Our retail kitchen scales use 106B aluminum alloy single-point load cell sensors to deliver high accuracy (≤0.1% error). Available in digital, compact, and hanging designs, they feature durable, waterproof construction, stainless-steel platforms, and easy-clean surfaces for hygienic, long-term use in retail environments.
Features：
Weighing range: 1.5kg
Compact size, stable performance
Simple structure, easy to install
Aluminum alloy material, anodized surface
Applications：
Kitchen scales, electronic scales, retail scales
Packaging machines, filling machines, weaving machines
Description：
106B is a small-range, compact single-point weighing sensor made of aluminum alloy, anodized surface, and IP65 protection grade. This sensor is suitable for electronic scales and small platform weighing applications.

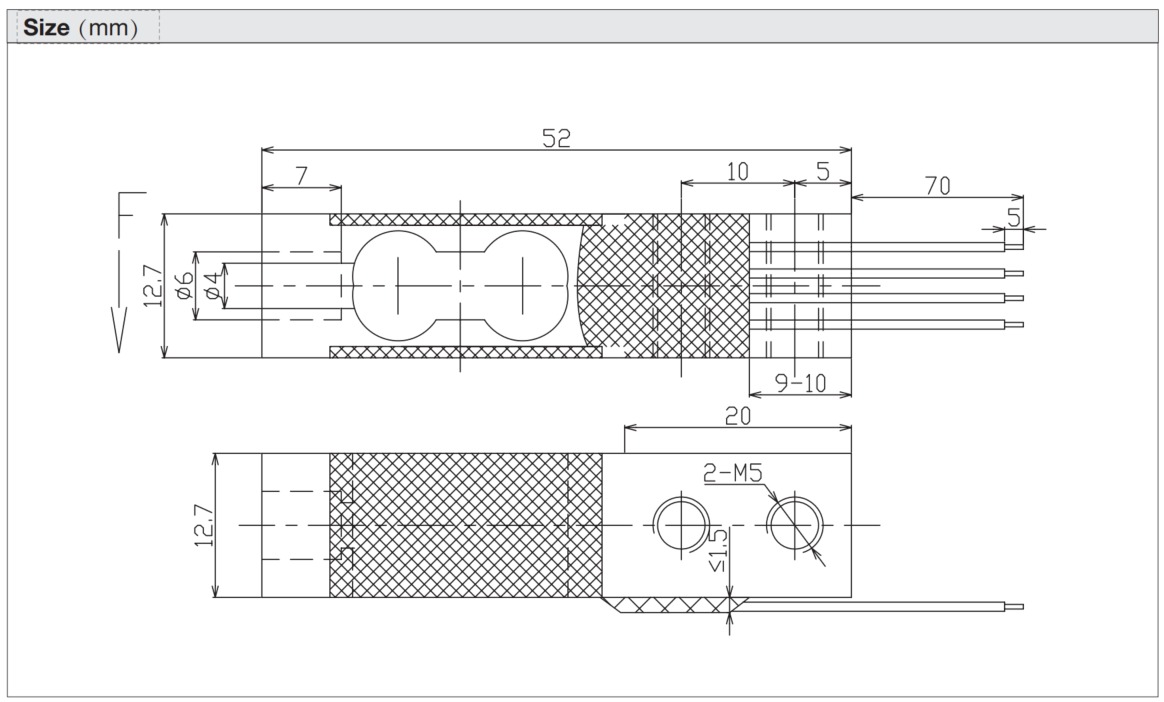

Dimensions：
Parameters：
| Product specifications | ||
| Specification | Value | Unit |
| Rated load | 1.5 | kg |
| Rated output | 1 | mV/V |
| Comprehensive Error | ±0.05 | %R.O. |
| Zero output | ≤0.1 | %R.O. |
| Repeatability | ≤±0.03 | %R.O. |
| Creep (after 30 minutes) | ≤±0.05 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Effect of temperature on zero point | ≤0.1 | %R.O./10℃ |
| Effect of temperature on sensitivity | ±0.05 | %R.O./10℃ |
| Recommended excitation voltage | 5-12 | VDC |
| Input impedance | 350±5 | Ω |
| Output impedance | 350±5 | Ω |
| Insulation Resistance | ≥3000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| Limit overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 70 | mm |
