2808 Single Point Load Cell for Injection Pumps
Short Description:
The 2808 single-point load cell from Labirinth load cell manufacturer is made of aluminum alloy with IP65 protection. Designed for injection pumps, it offers a weighing capacity of 10 kg.
Features：
1. Capacities (kg): 10kg
2. Small size, low range
3. Compact structure, easy to install
4. Anodized Aluminum Alloy
Applications：
1. Infusion pumps
2. Injection pumps
3. Other medical equipment
Description：

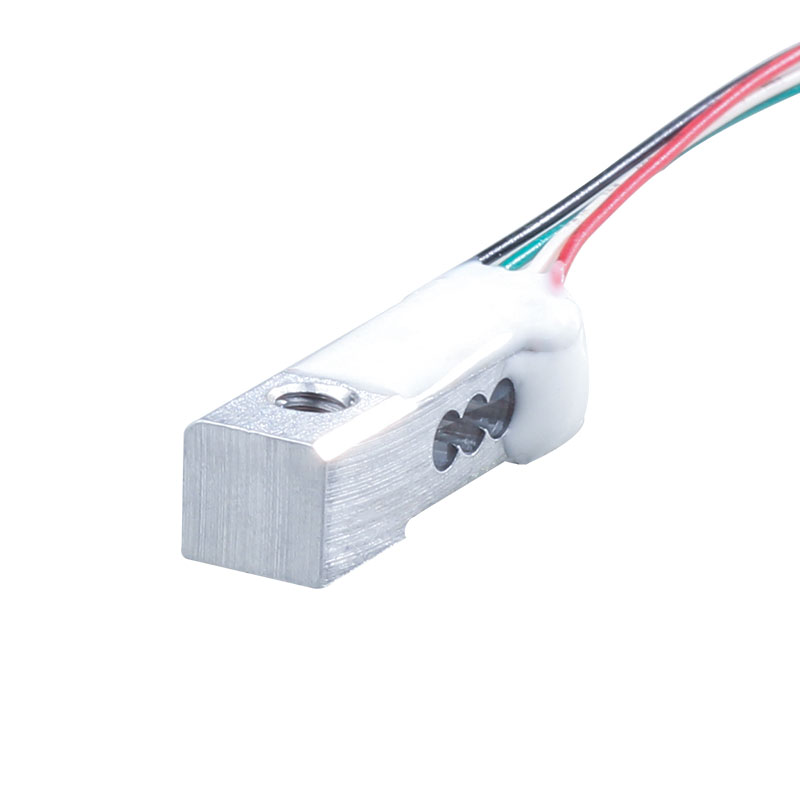

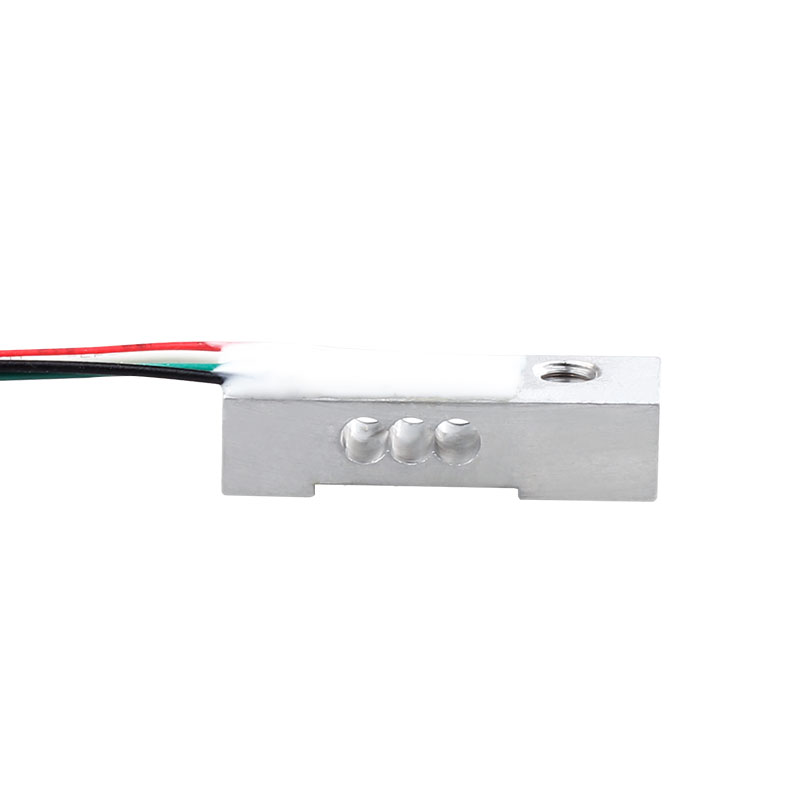

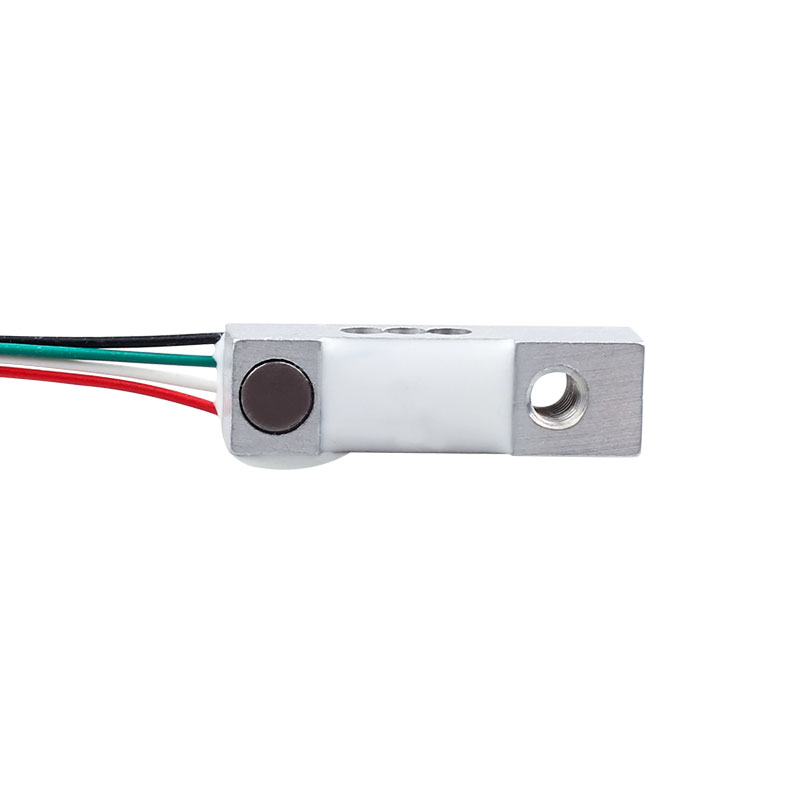

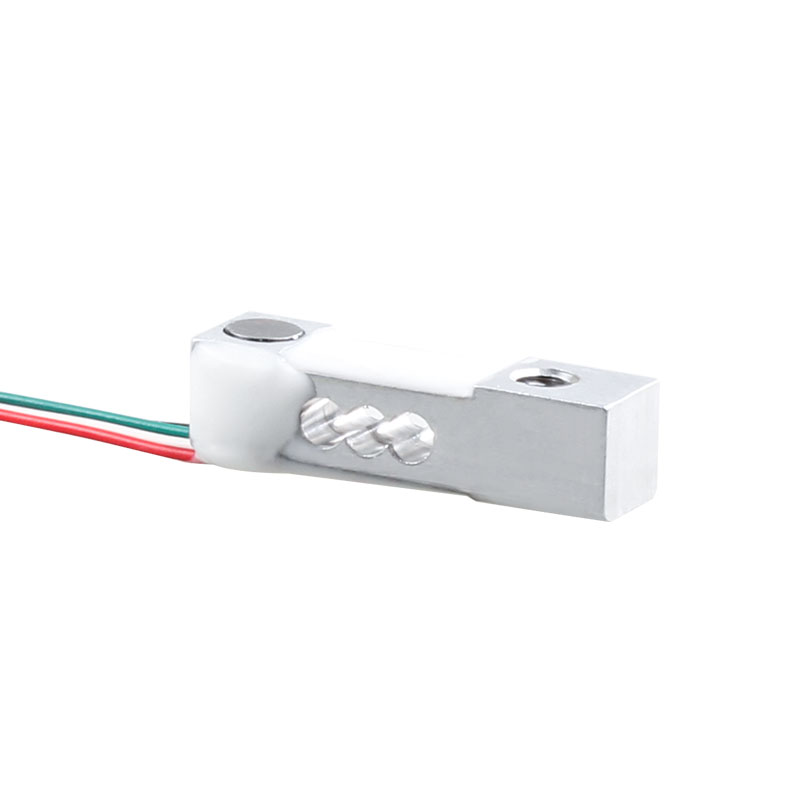

The 2808 load cell is a miniature single point load cell with a rated capacity of 10kg. The material is made of high quality aluminum alloy. The rubber sealing process has adjusted the deviation of the four corners to ensure the accuracy of the measurement. It is suitable for infusion pumps, syringe pumps and other medical equipment, etc.

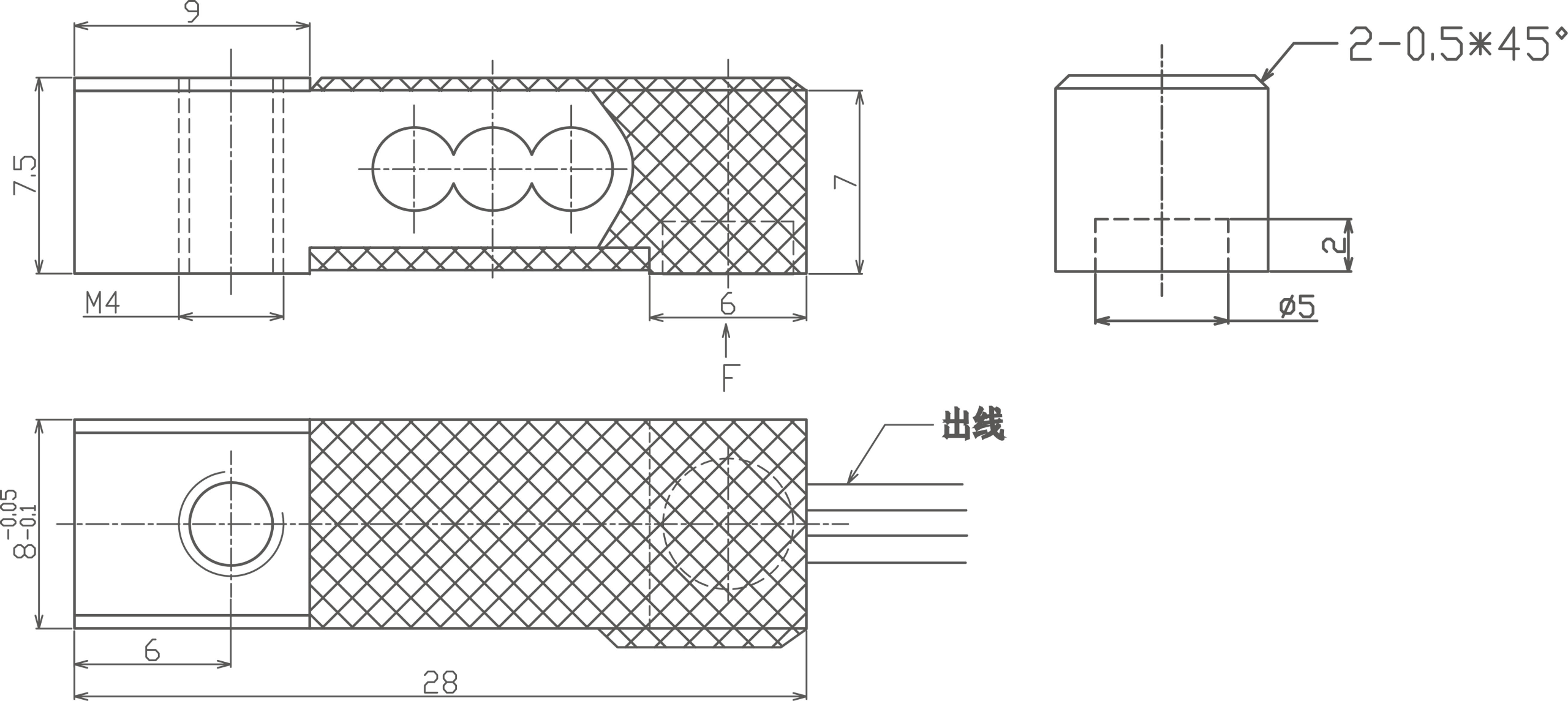

Dimensions：
Parameters:
| Specifications: | ||
| Rated Load | kg | 5,10,20 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep/30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 1 |
| Recommended Platform size | mm | 200*200 |
| Tightening Torque | N·m | 10 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
