3510 Single Point Load Cell for Robotic Arms
Short Description:
We are sourcing 3510 aluminum alloy single-point load cells for robotic arm applications. Products must deliver high accuracy, fast response, and long-term stability, feature IP65 protection, use durable 3510 alloy, and have a compact design for space-limited installations. Load cells must be compatible with strain-gauge systems and digital controllers, and support OEM/ODM services. Suppliers should offer samples, competitive bulk pricing, defined lead times, and demonstrate experience in robotics or industrial automation load cells.
Features：
Weighing range: 10kg
Compact size, stable performance
Simple structure, easy to install
Aluminum alloy material, anodized surface
Applications:
Narrow spaces
Robotic arms
10kg kitchen scales, small kitchen scales, best kitchen digital scales
Description:
The 3510 sensor is a compact, single-point gadget. It provides reliable performance and is ideal for weighing and force measurement. It functions well even in confined spaces. 10kg kitchen scales, mini kitchen scales, top digital kitchen scales.

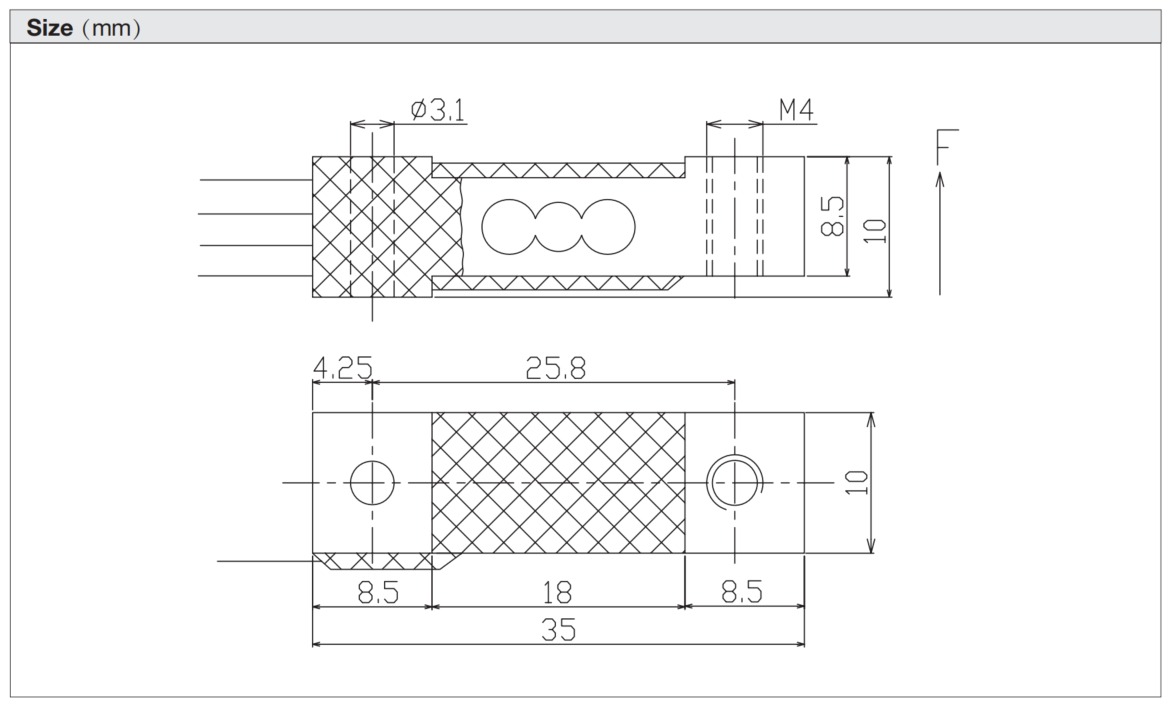

Dimensions:
Parameters:
| Product specifications | ||
| Specification | Value | Unit |
| Rated load | 10 | kg |
| Rated output | 1.4 | mV/V |
| Comprehensive Error | ±0.1 | %R.O. |
| Zero output | +0.1~+0.8 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Effect of temperature on zero point | <0.1 | %R.O./10℃ |
| Effect of temperature on sensitivity | <0.1 | %R.O./10℃ |
| Recommended excitation voltage | 5月12日 | VDC |
| Input impedance | 410±10 | Ω |
| Output impedance | 350±5 | Ω |
| Insulation Resistance | ≥5000(50VDC) | MΩ |
| Safe overload | 150 | %R.C |
| limited overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 150 | mm |
