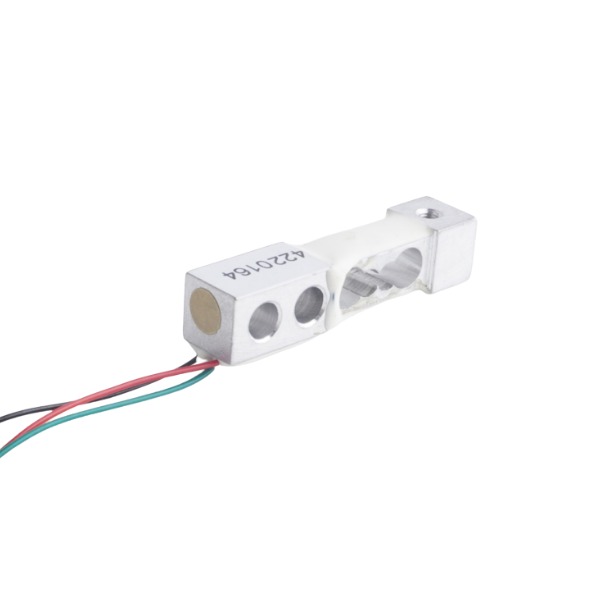

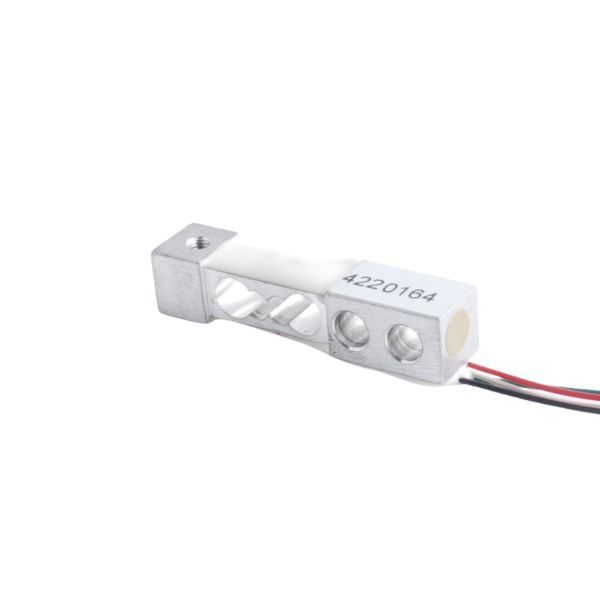

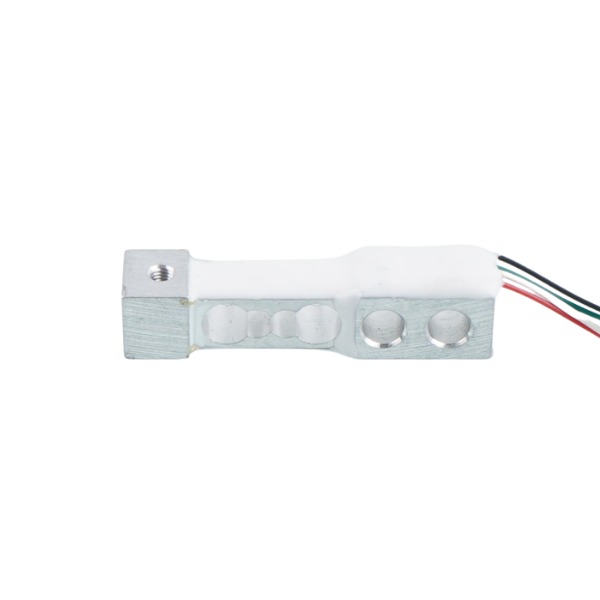

4510 Aluminum Alloy Single Point Load Cell for Digital Kitchen Scales
Short Description:
We require 4510 aluminum alloy single-point load cells for digital kitchen scales. Units must provide high accuracy and fast response, with a compact, lightweight design for slim scale integration. Features include durable 4510 alloy construction, IP65 protection for kitchen environments, and compatibility with strain-gauge circuits and digital displays. OEM/ODM support is preferred.
Features：
Weighing range: 2kg
Compact size, stable performance
Simple structure, easy to install
Aluminum alloy material, anodized surfac
Applications：
Narrow spaces
Robotic arms
Kitchen scales
Description：
LC1110 is a small single point load cell, 0.2kg to 3kg, low cross-section and small size, made of aluminum
Dimensions：
Parameters：
| Product specifications | ||
| Specification | Value | Unit |
| Rated load | 2 | kg |
| Rated output | 2.0±0.2 | mV/V |
| Non-linearity | ≤0.05 | %R.O. |
| Zero output | ±0.05 | mV/V |
| Repeatability | <±0.05 | %R.O. |
| Creep after 30 minutes | ±0.05 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Recommended excitation voltage | 5-12 | VDC |
| Input impedance | 1000±10 | Ω |
| Output impedance | 1000±5 | Ω |
| Insulation Resistance | ≥3000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| limited overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 75 | m |
