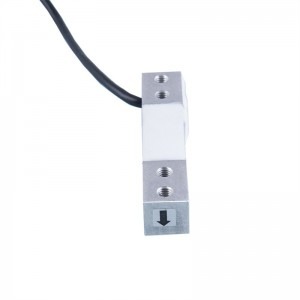

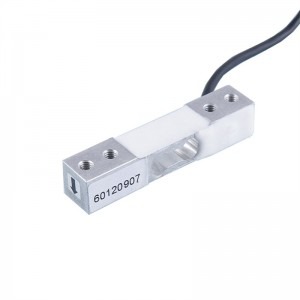

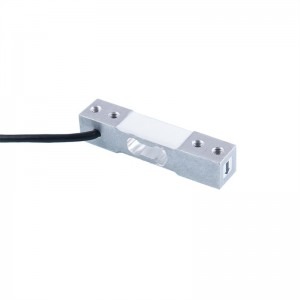

6012 Aluminum alloy single point load cell for electronic scales
Short Description:
Perfect for kitchens, markets, or on-the-go use, our electronic scales—from food-grade to pocket-sized—deliver 0.5kg accuracy with the robust 6012 aluminum alloy single-point load cell. Whether measuring ingredients, pricing retail goods, or packing travel essentials, enjoy durability, anti-corrosion surfaces, and instant results.
Stainless steel platforms, waterproof designs, and easy-read LCDs ensure hygiene and convenience, these scales adapt to your needs—home cooks, retailers, or outdoor enthusiasts.
Labirinth Microtest Electronics (Tianjin) Co., Ltd is a board member of the China Weighing Instruments Association.
6012 Aluminum alloy single point load cell for electronic scales
Weighing range: 0.5kg…5kg
Compact size, stable performance
Simple structure, easy to install
Made of aluminum alloy, anodized surface
Applications
Electronic scales, retail scales
Packaging machines, canning machines
Weighing and force measurement in narrow spaces
Description
6012 is a small-range, compact single-point weighing sensor made of aluminum alloy, anodized surface, and IP65 protection grade. This sensor is suitable for electronic scales and small platform weighing applications.
Dimensions
Parameters
| Product specifications | ||
| Specification | Value | Unit |
| Rated load | 0.5,1,2,5 | kg |
| Rated output | 1.0 | mV/V |
| Comprehensive Error | ≤±0.05 | %R.O. |
| Repeatability | ≤±0.05 | %R.O. |
| Creep (after 30 minutes) | ≤±0.05 | %R.O. |
| Zero output | ≤±5 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
|
Allowable operating temperature range |
-20~+70 | ℃ |
| Recommended excitation voltage | 5-12 | VDC |
| Input impedance | 1000±10 | Ω |
| Output impedance | 1000±5 | Ω |
| Insulation Resistance | ≥3000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| limited overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 40 | mm |
