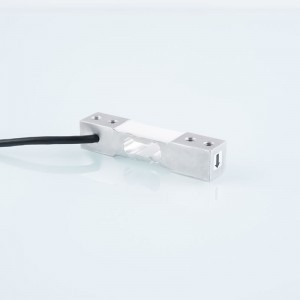

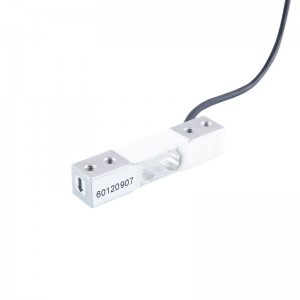

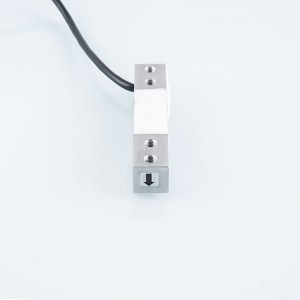

6012 Single Point Load Cell for Packaging Machines
Short Description:
The 6012 aluminum single-point load cell from a Labirinth-type manufacturer is designed for packaging machines. It features high precision, IP65 protection, and a compact structure, with a capacity range of 0.5–5 kg, suitable for accurate and stable weighing in automated packaging systems.
Description:
1. Capacities : 0.5kg 1kg 2kg 5kg
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Material: Aluminum
6. Used in electronic scale, retail scale, packaging machine, filling machine, knitting machine, Industrial process control and small platform weighing
7. Maximum platform size: 200mm*200mm
Advantages:
Compact structure, easy to install
Robust and Stable Performance
Specifications:
| Product specifications | ||
| Specification | Value | Unit |
| Rated load | 0.5,1,2,5 | kg |
| Rated output | 1 | mV/V |
| Comprehensive Error | ≤±0.05 | %R.O. |
| Repeatability | ≤±0.05 | %R.O. |
| Creep (after 30 minutes) | ≤±0.05 | %R.O. |
| Zero output | ≤±5 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Recommended excitation voltage | 5-12 | VDC |
| Input impedance | 1000±10 | Ω |
| Output impedance | 1000±5 | Ω |
| Insulation Resistance | ≥3000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| limited overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 40 | mm |

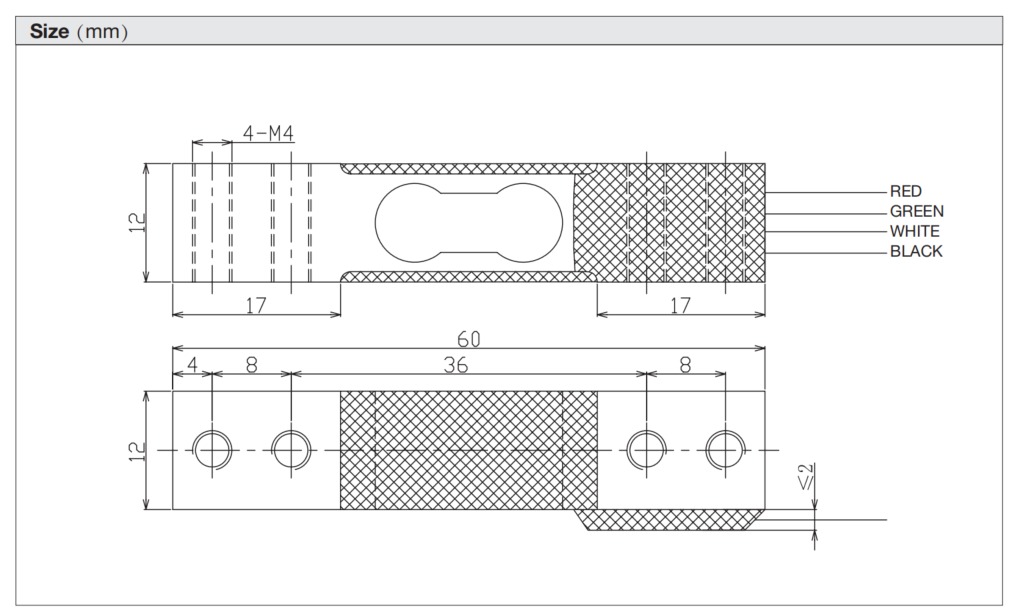

Dimensions:
Product specifications are subject to change without notice.
