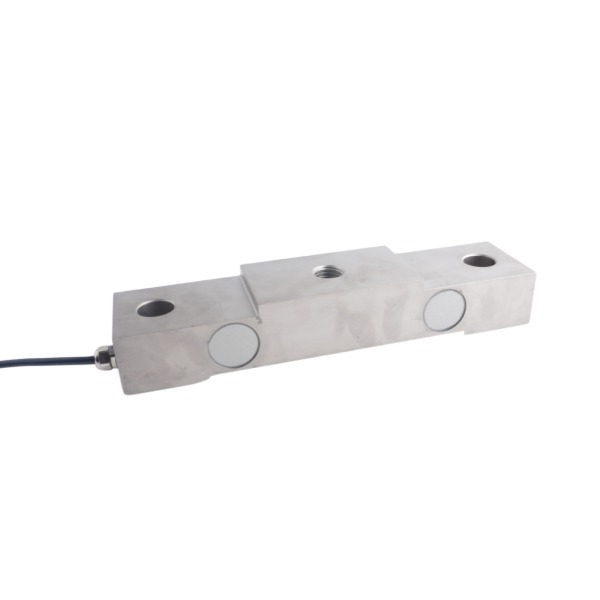

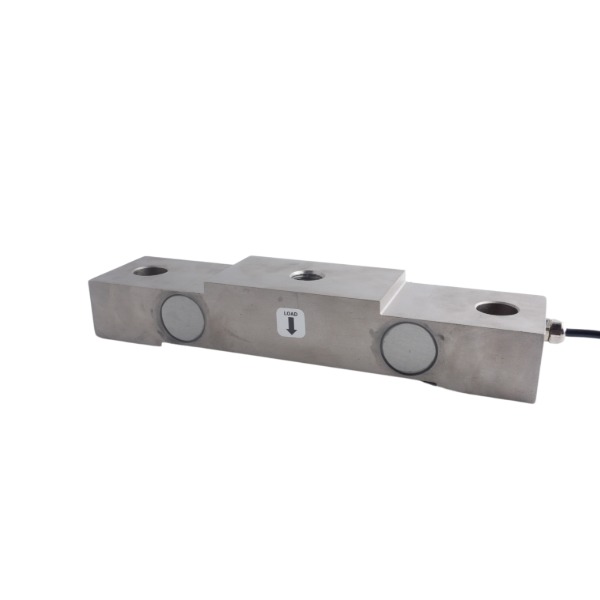

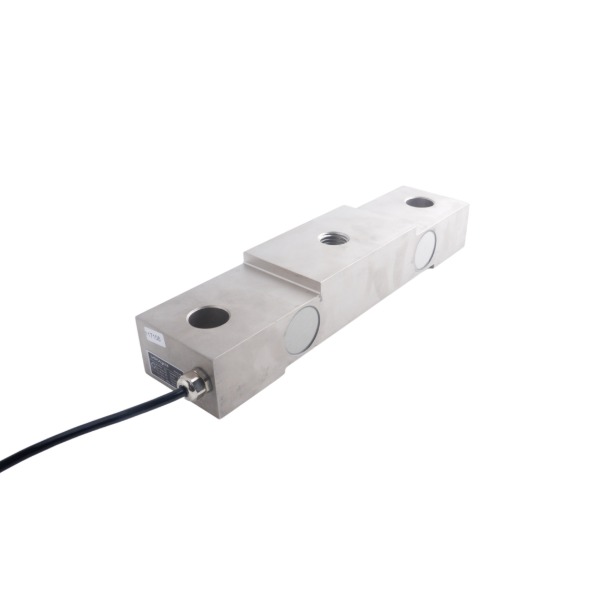

607A 10T On-Board Load Cell for Vehicle & Cargo Weighing
Short Description:
Engineers designed this on-board 10T load cell for accurate vehicle and cargo weighing. It aids in smart logistics. It also detects overloads, controls flow, and monitors various vehicles. This keeps cement transport, medical waste management, and other operations safe and efficient.
Features：
Simple structure, easy to install
Real-time weighing, abnormal alarm
Stable and reliable, protection level IP67
Can be customized according to vehicle model
Applications：
Smart logistics
Intelligent sanitation
Scientific overload control
Cement flow control
Medical waste supervision
Various types of vehicles that need to be weighed
Overload and unbalanced load detection
Cargo flow control
Description：
LC1110 is a small single point load cell, 0.2kg to 3kg, low cross-section and small size, made of aluminum alloy, strong stability, good bending and torsion resistance, anodized surface, protection level of IP65, can be applied in in a variety of complex environments. The deviation of the four corners has been adjusted. The recommended table size is 200mm*200mm. It is mainly suitable for industrial weighing systems such as low-range platform scales, jewelry scales, and medical scales.
Dimensions：
Parameters：
| Specification | ||
| Rated load | 30 | t |
| Rated output | 1 | mV/V |
| Comprehensive error | ±0.3 | %R.O. |
| Creep (30 minutes) | ±1 | %R.O. |
| Repeatability | ±0.1 | %R.O. |
| Effect of temperature on sensitivity | ±0.05 | %R.O./10℃ |
| Effect of temperature on zero point | ±0.05 | %R.O./10℃ |
| Recommended excitation voltage | 5-10 | VDC |
| Input impedance | 760±10 | Ω |
| Output impedance | 700±5 | Ω |
| Insulation impedance | ≥3000(50VDC) | MΩ |
| Safe overload | 200 | %R.C. |
| Ultimate overload | 300 | %R.C. |
| Elastic element material | Alloy steel | |
| Protection level | IP66 | |
| Cable length | 10 | m |
