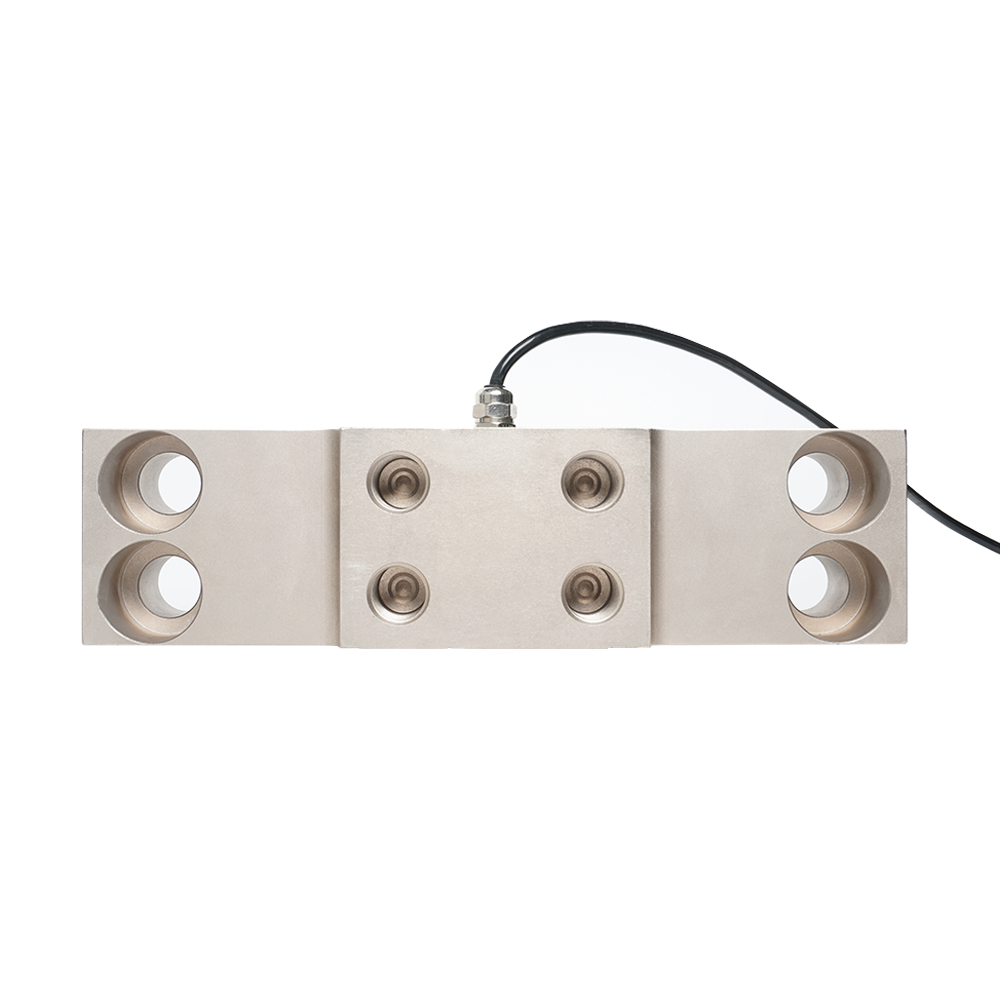

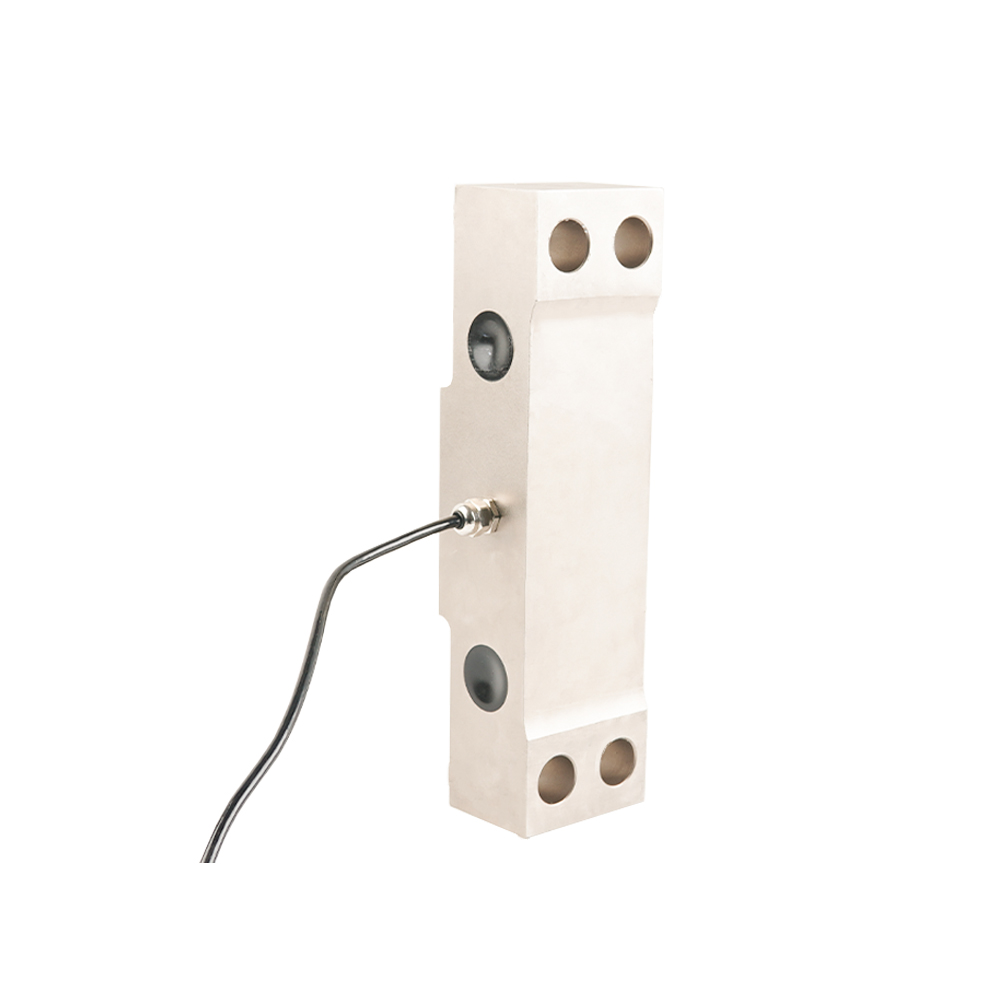

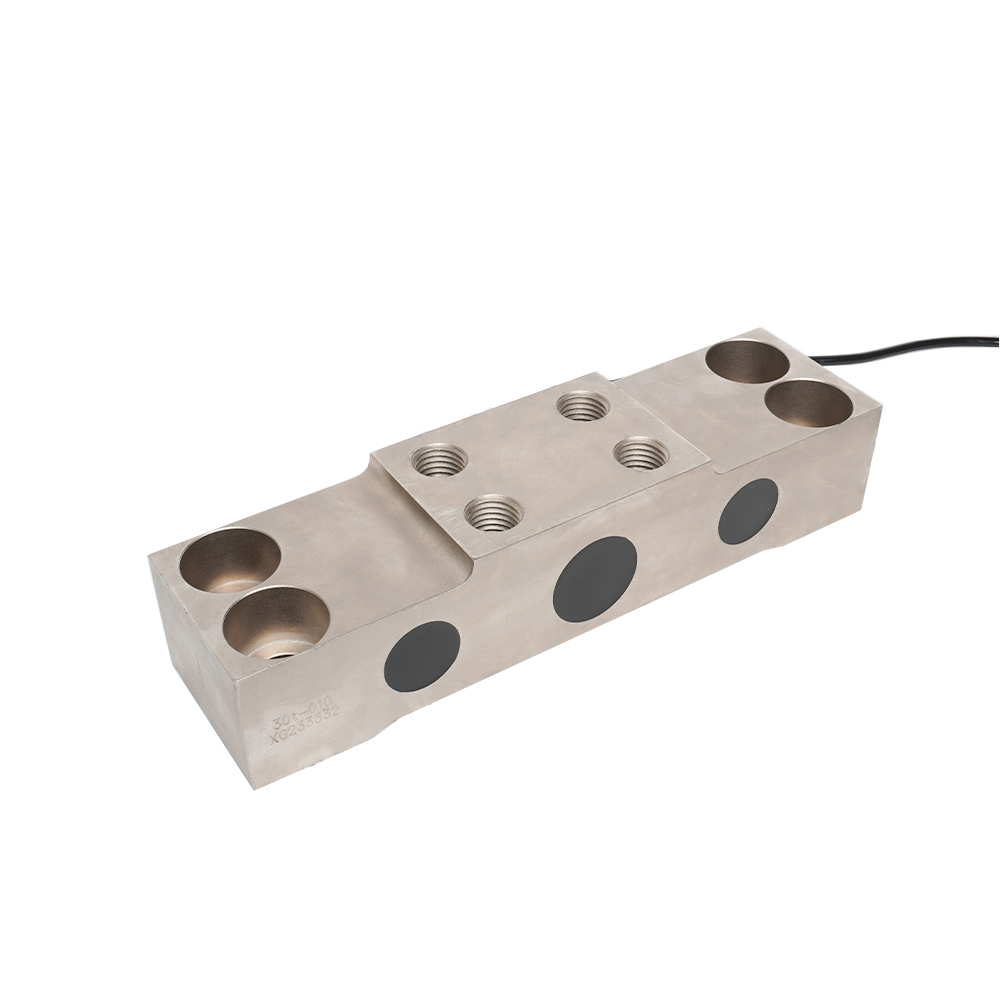

607A 30-Ton Double-Ended Shear Beam Load Cell
Short Description:
The 607A double-ended shear beam load cell from Labirinth load cell manufacturer is made of alloy steel and features IP66 protection. It is designed for a weighing capacity of 30 tons.
Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | t | 30 |
| Rated Output | mV/V | 1 |
| Zero Balance | %F.S. | ±2 |
| Combined Error | %F.S. | ±0.3 |
| Non repeatability | %F.S. | ±0.1 |
| Recommended excitation voltage | VDC | 5-15 |
| Input impedance | Ω | 760±10 |
| Output impedance | Ω | 700±5 |
| Insulation resistance | MΩ | ≥3000 (50VDC) |
| Safe overload | %R.C. | 150 |
| Ultimate overload | %R.C. | 200 |
| Material | Alloy Steel nickel plated | |
| cable length | 10 | |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
