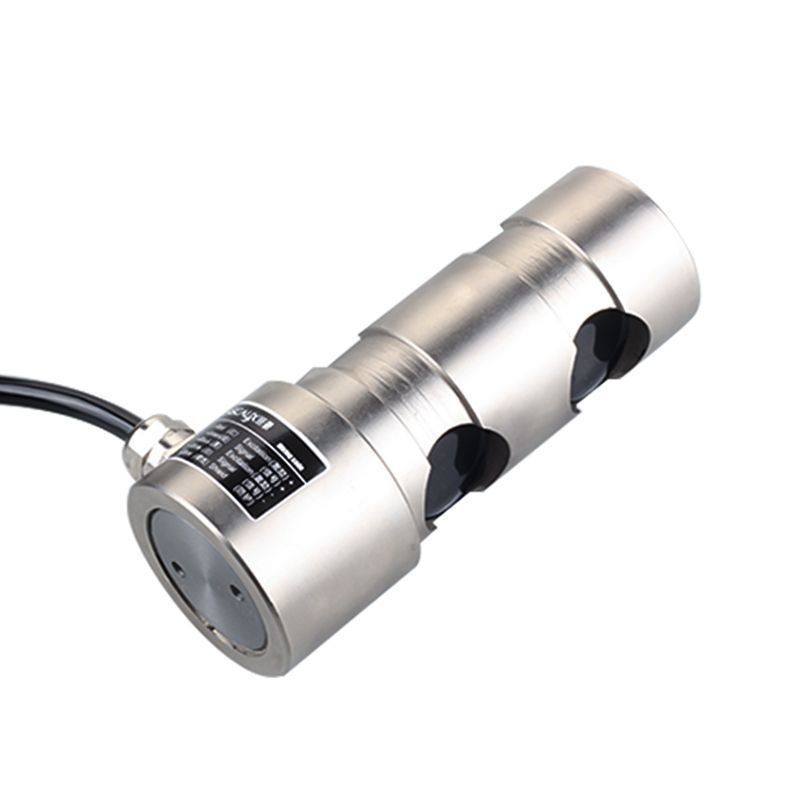

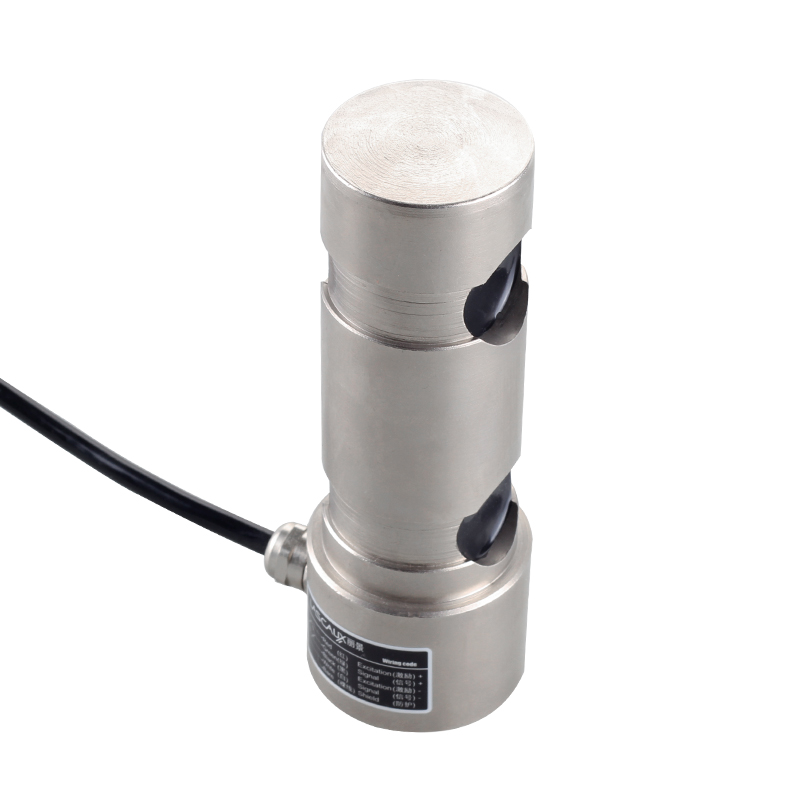

616 Axle Load Pin Rope Load Cell
Short Description:
This double-ended shear beam load cell has a pin design for measuring rope load and tension. Labirinth made this product from stainless steel. It has IP66/IP68 protection. This keeps it working well in tough industrial settings. The available weighing capacity ranges from 2.5 tons to 40 tons.
Payment: T/T, L/C, PayPal
Features:
- Capacities (t): 2.5 to 40
- Circular shaft with hollow section
- Compact structure, easy to install
- Strong resistance to torsion and bending
5.Good long-term stability
- Alloy steel material, nickel-plated surface
- Protection grade IP66/68
Applications:
- Ropes, shackles, bearing housings
- Other special weighing instruments
Description:
The 616 is a pivot pin load cell. The measuring range is from 2t to 40t. Alloy steel material, nickel-plated surface. The structure adopts a hollow cross-section circular shaft, which is resistant to torsion.Strong bending resistance. Compact structure, easy installation, can also be customized according to customer needs. Suitable for ropes, shackles, bearing housings and other weighing instruments.

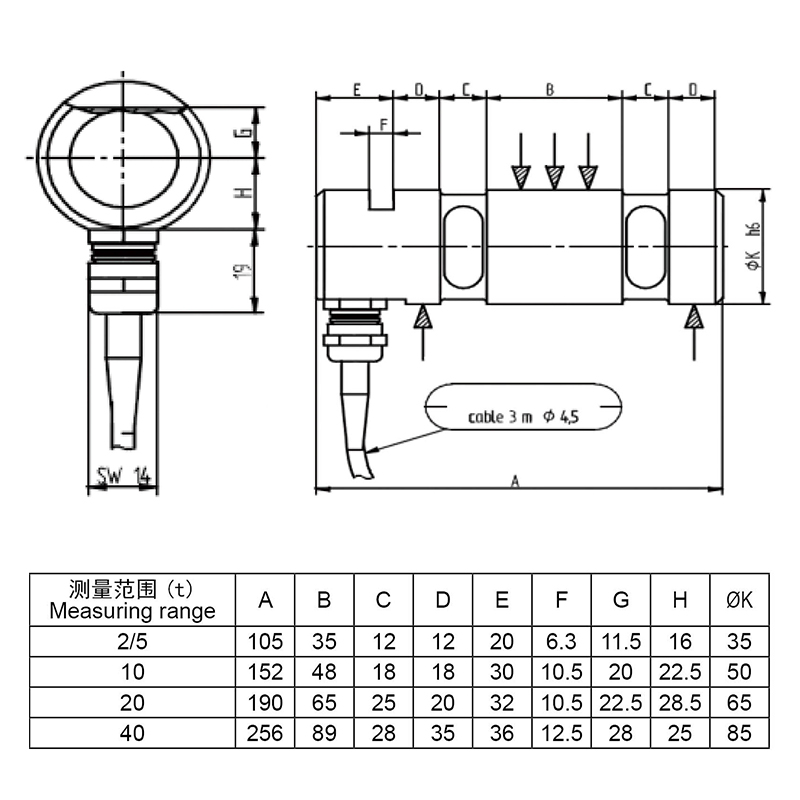

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | t | 2,5,10,20,40 |
| Rated Output | mV/V | 1.5 |
| Zero Balance | %R.O. | ±2 |
| Creep after 30 minutes | %R.O. | ±0.2 |
| Comprehensive Error | %R.O. | ±0.5 |
| Compensated Temp.Range | ℃ | -10~+40 |
| Operating Temp.Range | ℃ | -20~+70 |
| Temp.effect/10℃ on output | %R.O./10℃ | ±0.05 |
| Temp.effect/10℃ on zero | %R.O./10℃ | ±0.05 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 770±10 |
| Output impedance | Ω | 700±5 |
| Insulation resistance | MΩ | =5000(50VDC) |
| Safe Overload | %R.C. | 200 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel /Stainless Steel | |
| Degree of protection | IP66/68 | |
| Ex: | Red:+Black:- | |
| Wiring code | Sig: | Green:+White:- |
| Shield: | Bare | |
