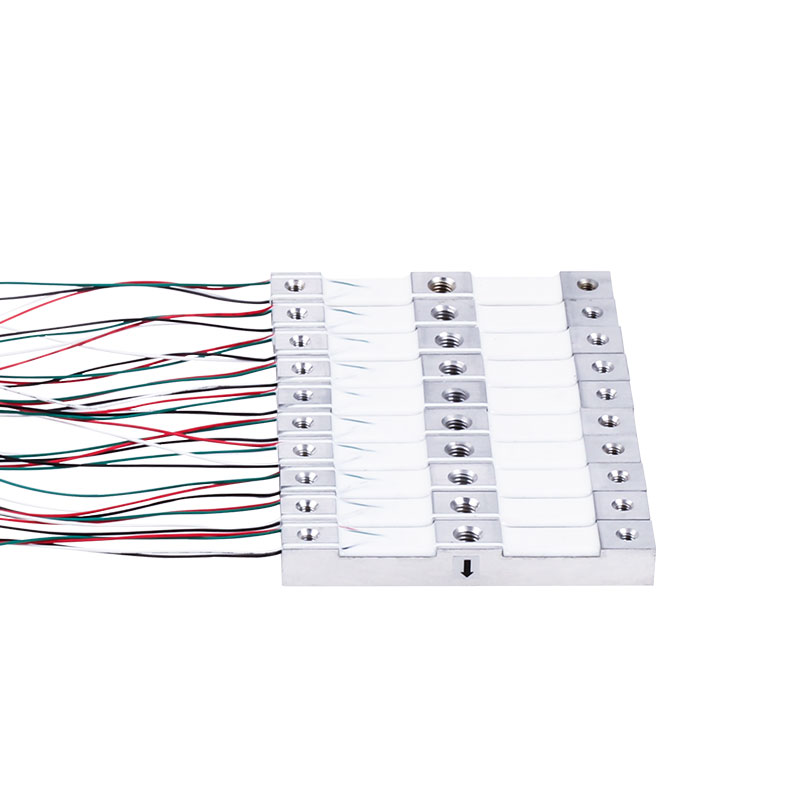

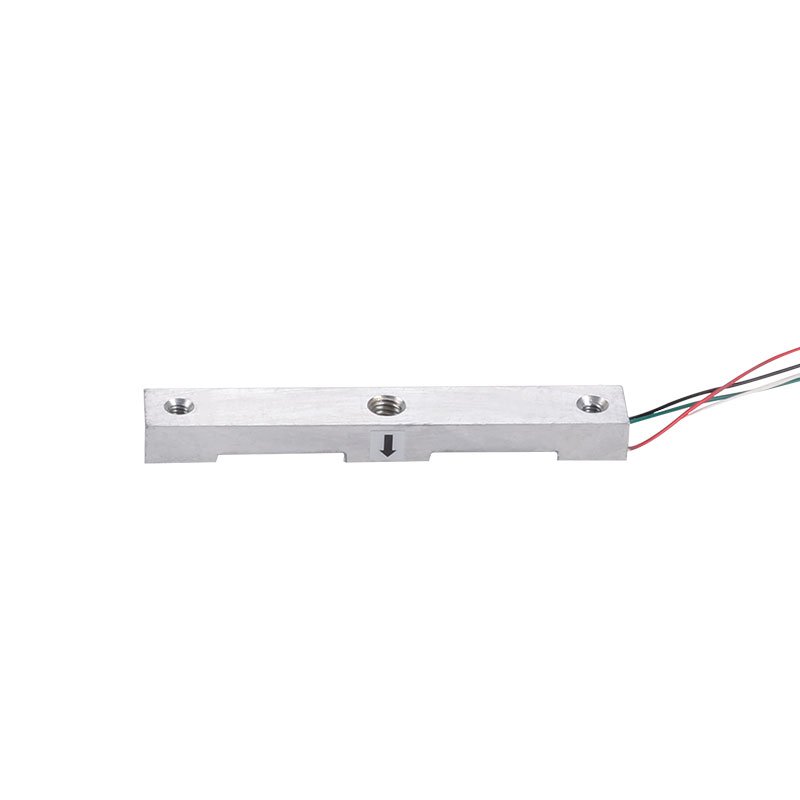

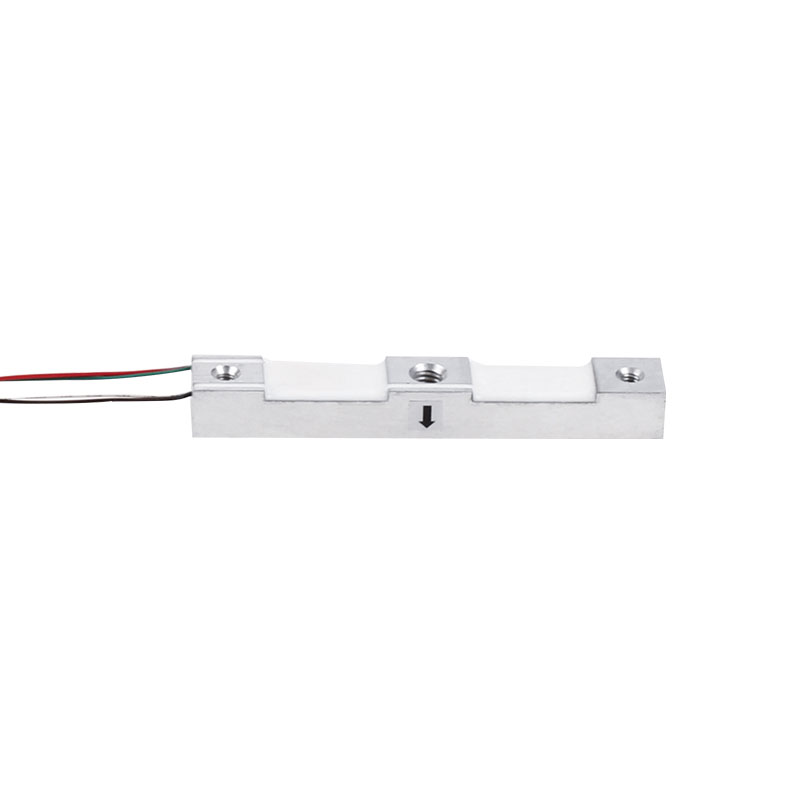

705B Custom Micro Dynamometer Tension Sensor for Fencing
Short Description:
Labirinth load cell manufacturers offer the 705B Customized Micro Dynamometer Tension Fence Sensor. It’s made from aluminum alloy and features IP65 protection. The weighing capacity ranges from 120 kg to 150 kg.
Payment: T/T, L/C, PayPal
Features:
- Capacities (kg): 120，150
- High comprehensive precision, high long-term stability
- Compact structure, easy to install
- Small size with low profile
- Anodized Aluminum Alloy
- Both pull and pressure are available
Applications:
- Dynamometer
- Be suitable for the weighing device
- Can be used for electronic fence monitoring security system
Dimensions:
Parameters:
| Specification | ||
| Rated load | 50,120,150 | kg |
| Rated output | 1.9 | mV/V |
| Zero balance | ±0.5 | %R.O. |
| Comprehensive error | ±0.3 | %R.O. |
| Nonlinearity | ±0.3 | %R.O. |
| Hysteresis | ±0.3 | %R.O. |
| Repeatability | ±0.2 | %R.O. |
| Creep (30 minutes) | ±0.3 | %R.O. |
| Recommended excitation voltage | 5-12/15(max) | VDC |
| Input impedance | 1000±10 | Ω |
| Output impedance | 1000±5 | Ω |
| Insulation impedance | ≥5000(50VDC) | MΩ |
| Safe overload | 120 | %R.C. |
| UItimate overload | 150 | %R.C. |
| Elastic element material | Aluminum | |
| Protection level | IP65 | |
Product specifications are subject to change without notice.
