  3. 804 Low-Profile Disk Load Cell – 2T/3T Through-Hole Force Sensor

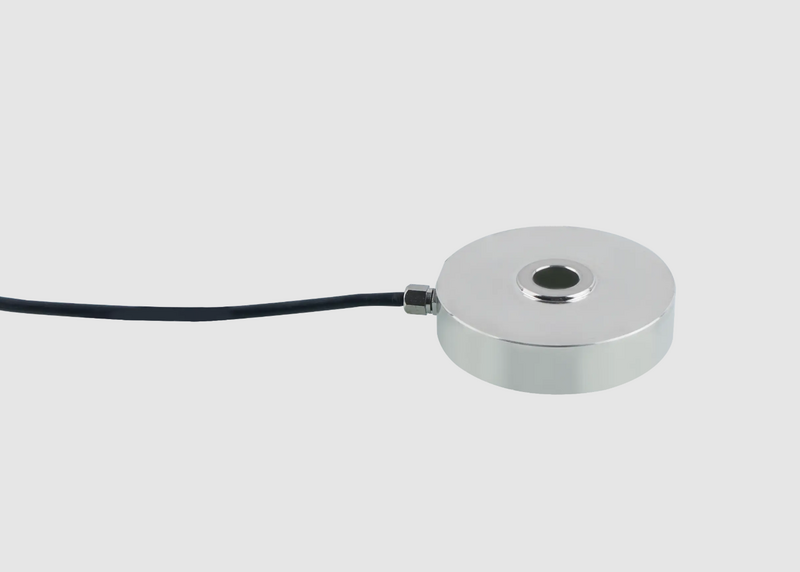

804 Low-Profile Disk Load Cell – 2T 3T Through-Hole Force Sensor 1

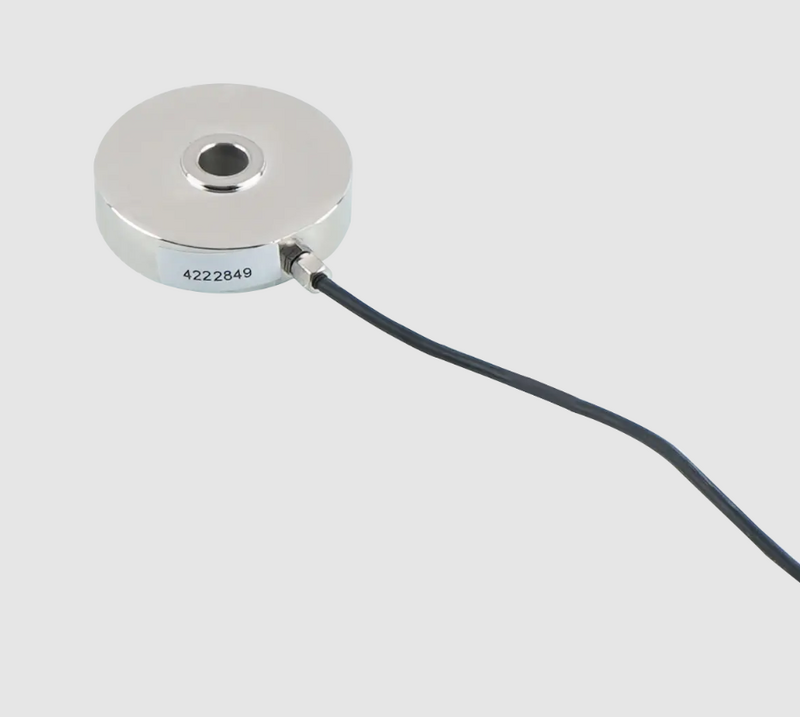

804 Low-Profile Disk Load Cell – 2T 3T Through-Hole Force Sensor 3

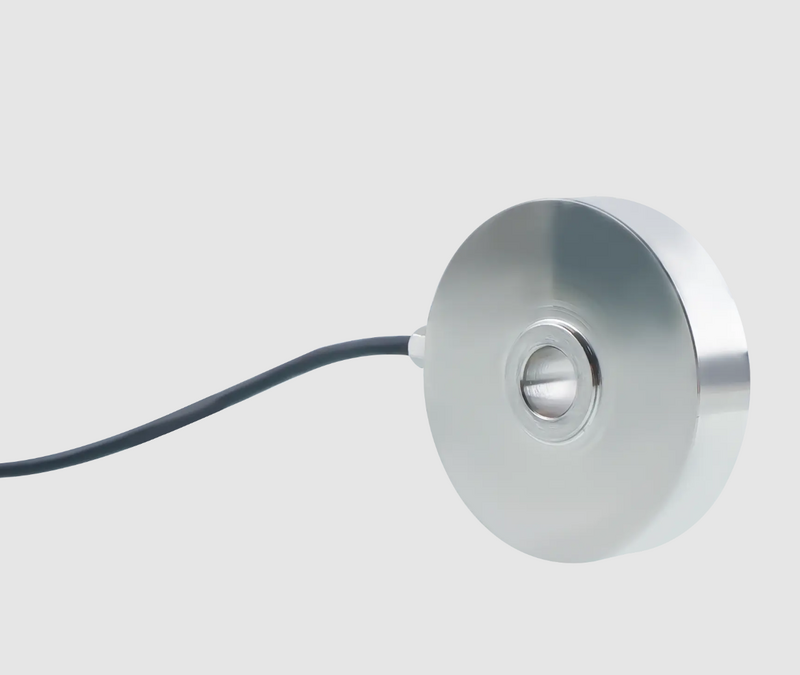

804 Low-Profile Disk Load Cell – 2T/3T Through-Hole Force Sensor - Image 3

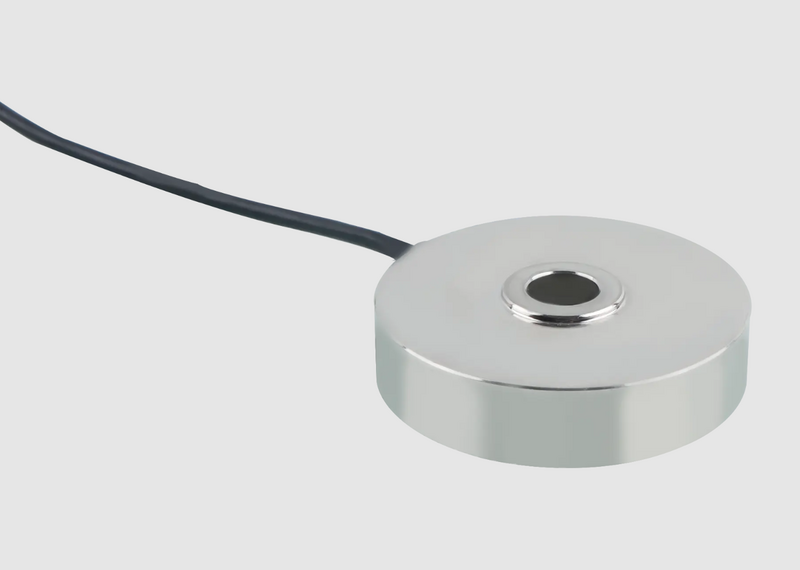

804 Low-Profile Disk Load Cell – 2T/3T Through-Hole Force Sensor - Image 4

804 Low-Profile Disk Load Cell – 2T/3T Through-Hole Force Sensor

Short Description:

The 804 low-profile through-hole load cell from Labirinth is made of aluminum steel. It has IP65 protection and can weigh between 0.2 and 3 tons.

Basic Information

Maximum capacity (Emax)  Rated Load (t):
0.2，2，3

Functions

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

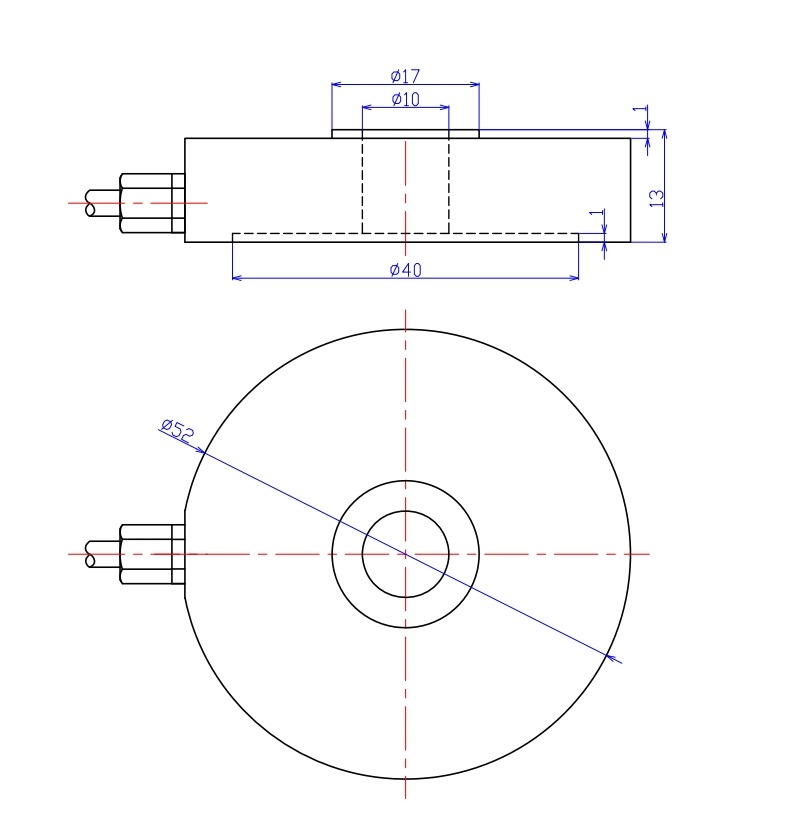

Dimensions：



804 Low-Profile Disk Load Cell – 2T 3T Through-Hole Force Sensor

Specifications：

Rated Load t 0.2,2,3
Rated Output mV/V 1~±0.1
Zero Output mV/V ≤0.05
Comprehensive Error %R.O. ±0.3
Creep after 30 minutes %R.O. ±0.3
Recommended excitation voltage VDC 5-12/15(max)
Input impedance Ω 350±10
Output impedance Ω 350±5
Insulation resistance MΩ ≥3000(50VDC)
Safe overload %R.C. 150
Ultimate overload %R.C. 200
Material Alloy steel
Degree of protection IP65
