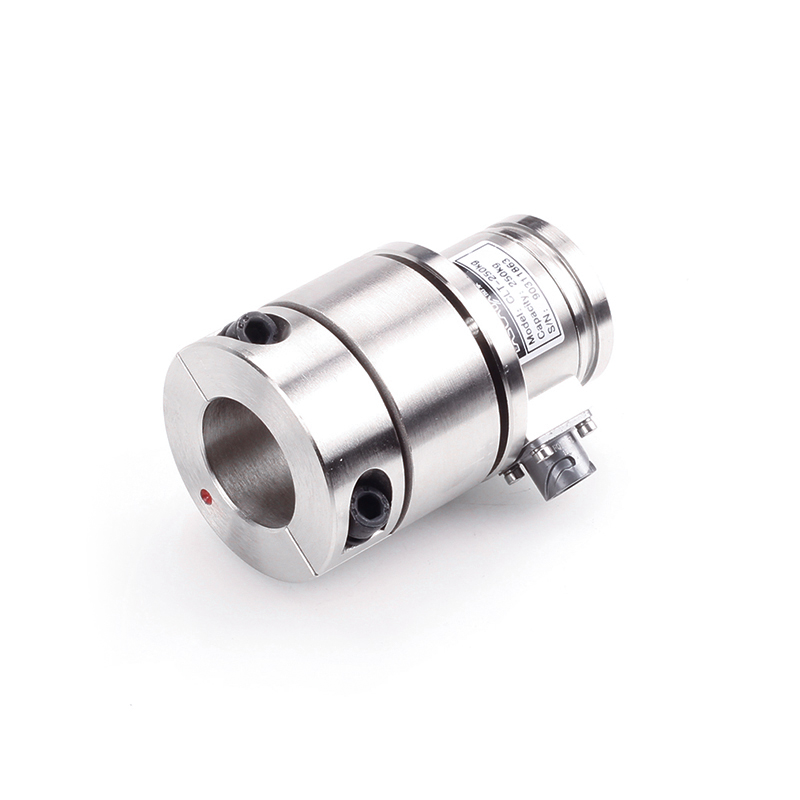

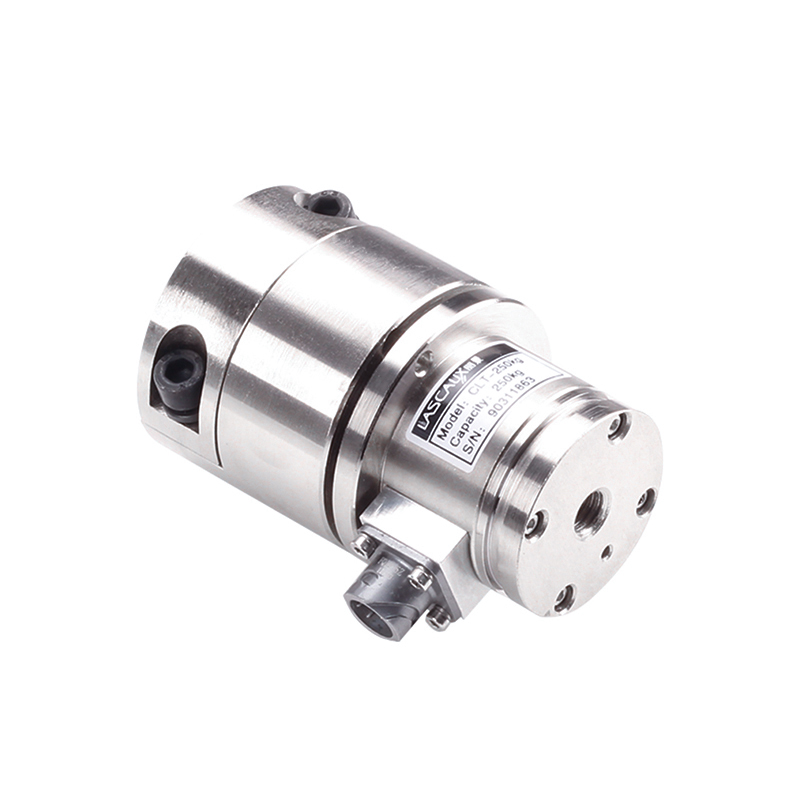

CLT Various Installation Modes Wire Strip Tension Sensor
Short Description:
Miniature Button Load Cell from Labirinth load cell manufacturers,CLT Various Installation Modes Wire Strip Tension Sensor is made of stainless steel, which is IP65 protection. The weighing capacity is from 10 kg to 250 kg.
Features:
- Capacities (kg): 10 to 250
- Resistance strain measurement methods
- The level of water-proof reaches IP65
- It can accurately measure in the low tension
- Compact structure, easy to install
- High comprehensive precision, high stability
- High quality alloy steel with nickel plating
- Stainless steel material is available
- Many installations types can satisfy various needs
Applications:
- On-line web tension measurement
- Paper making, textile, packaging and other industries
Description:

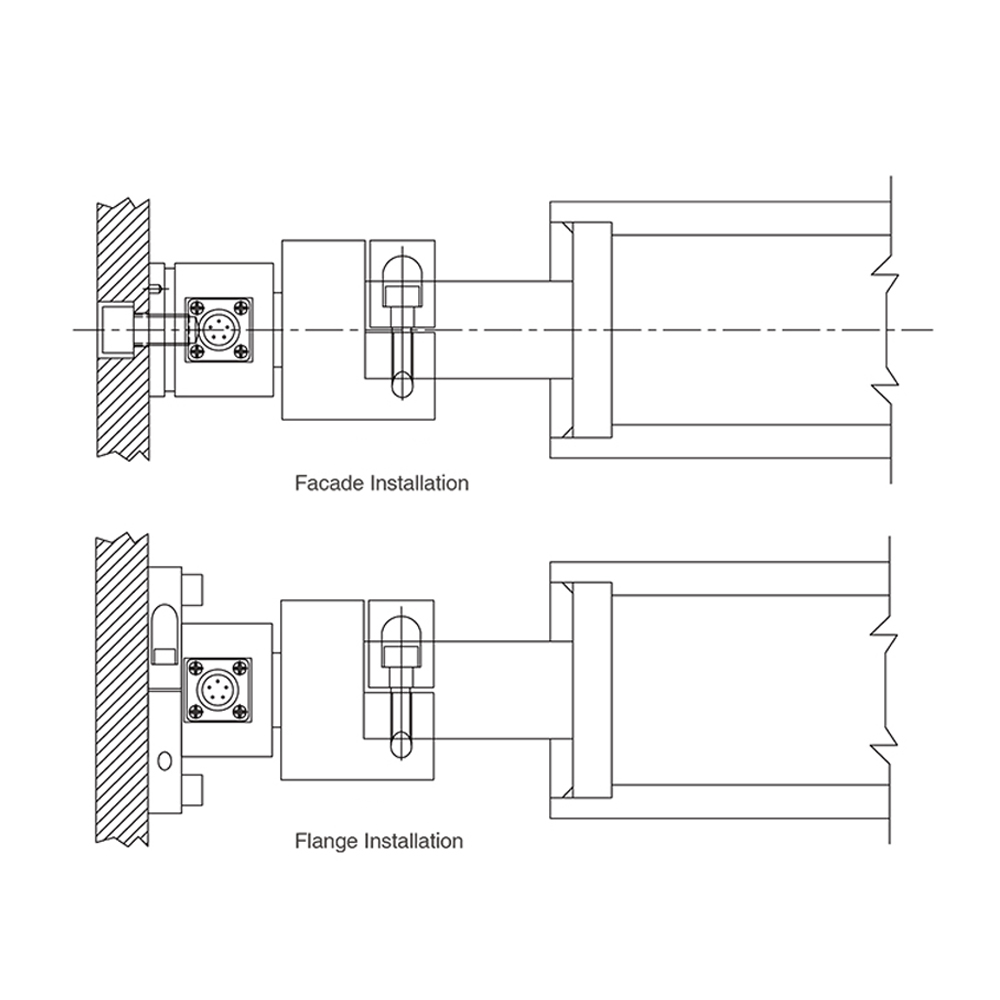

CLT tension sensor, measuring range from 10kg to 250kg, made of alloy steel, nickel-plated on the surface, a variety of installation methods, can meet various installation requirements, such as end-face installation and flange installation, 2 in combination, with the transmitter, Used to measure online web tension, such as paper making, textile and other industries.

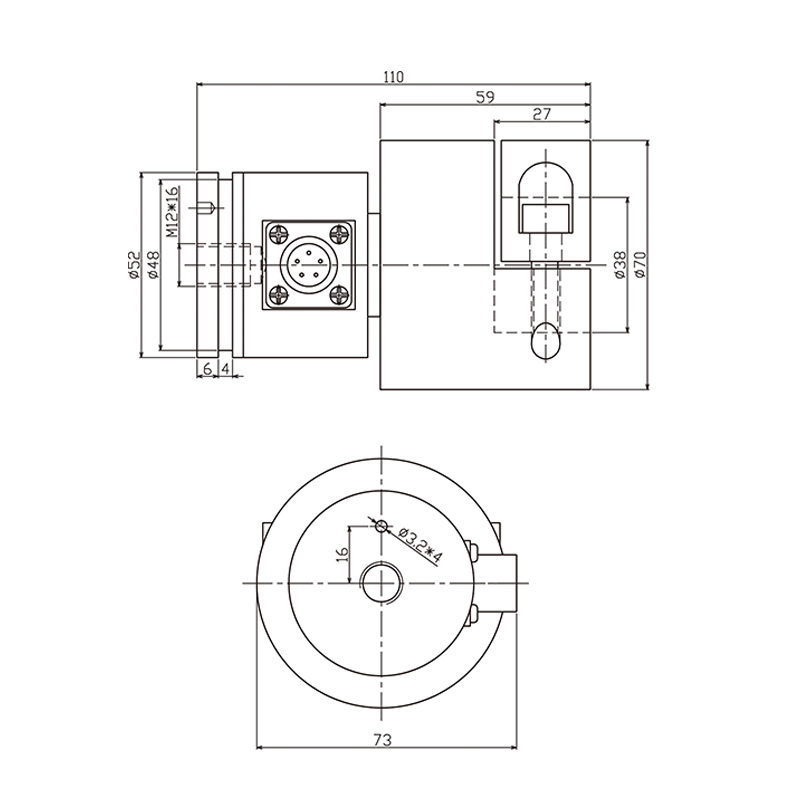

Dimensions:
Parameters：
| Specifications: | ||
| Rated Load | kg | 10,25,50,75,150,250 |
| Rated Output | mV/V | 1 ± 0.1% |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.3 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Output impedance | Ω | 350±5 |
| Input impedance | Ω | 380±10 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
| Shield: | Bare | |
