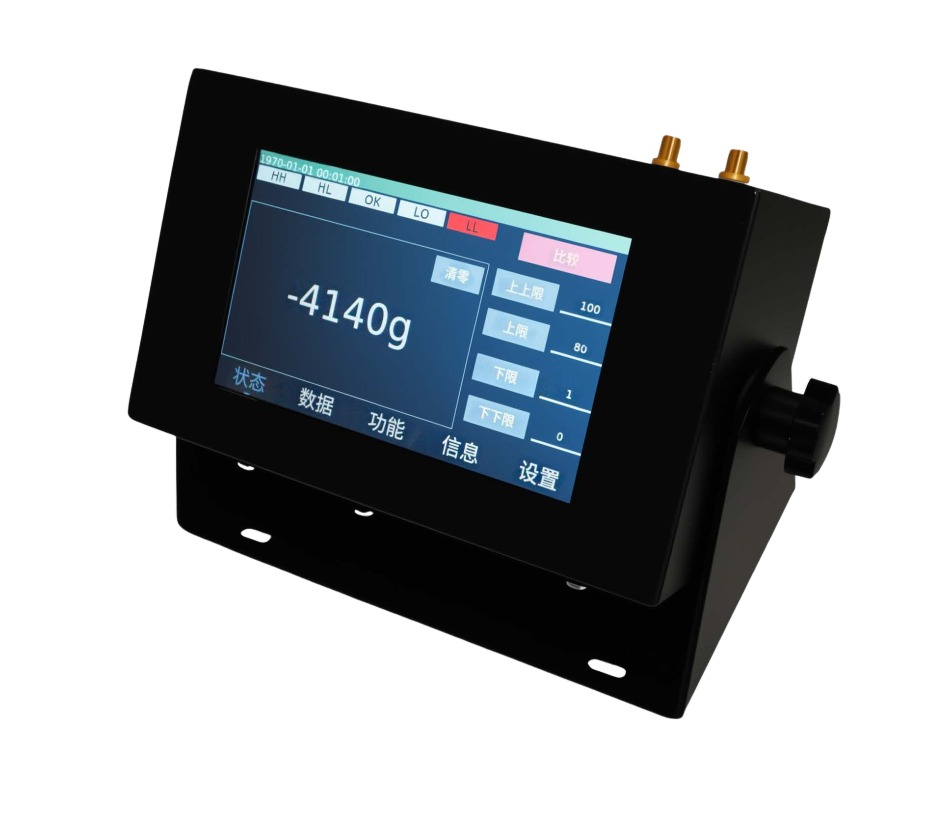

CWV200-A Industrial Weighing Indicator Supporting Analog and Digital Load Cells
Short Description:
The CWV200-A is a color touchscreen that weighs items. It works with both analog and digital sensors. With Ethernet, USB, and RS485, plus optional 4G+GPS, this device offers up to 64GB TF card storage. It ensures efficient, accurate, and visual weighing for industrial use.
Introduction：
The CWV200_A weighing instrument features a 5-inch full-color touchscreen and supports both analog and digitalsensor inputs, enabling efficient and accurate reading ofweighing data. It allows for visual operation calibration andweighing. Equipped with an Ethemet port, USB, RS485 interface, and a storage card slot that supports up to 64G, itfacilitates convenient data transmission and storage. Itmeets various application requirements, such as serving as a color-screen weighing controller and a color-screenweighing instrument.
Feature：
Specification：
| Accuracy: | 1/10000 |
| Response Speed: | ≤200ms |
| Power Voltage: | 12V-24V |
| RS485 Interface: | Dual independent RS485 buses, one wireless transparent RS485 bus |
| Wireless 485 Communication Distanc: | ≥100M |
| Touch screen resolution: | 800*480 |
| Instrument Dimensions: | 168*105.2*128.5mm |
| Built-in battery: | 12V Lithium battery (adaptive intelligent charging) |
| Optional Features: | hanging bracket |
