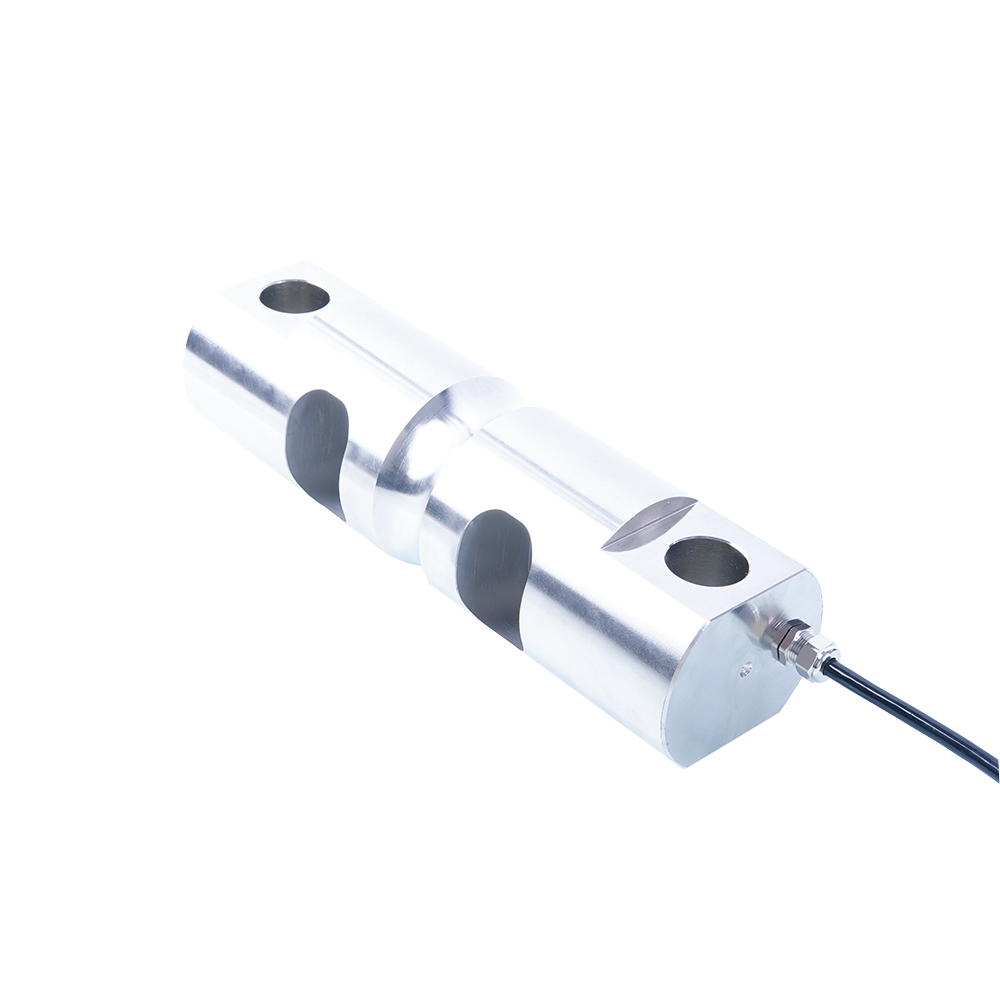

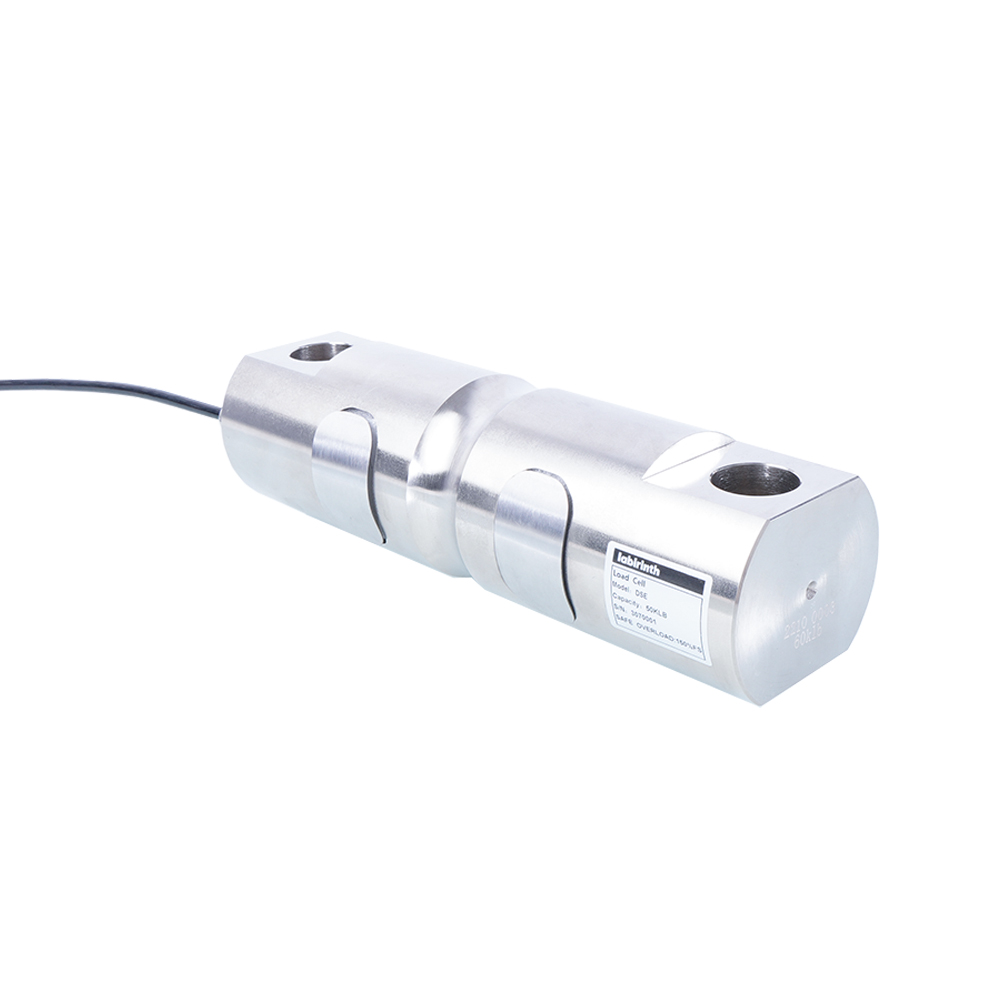

DSE Double-Ended Shear Beam Load Cell for Heavy-Duty Weighing
Short Description:
We are a top manufacturer of high-precision load cells. We design our cells for silo weighing applications. Our DSE models offer great durability and high accuracy. This means you get stable and reliable weight measurements every time. Contact us for custom solutions and competitive prices for your silo weighing needs.
Features:
- Capacities (klbs):20 to 125
- Center-loaded double-ended shear beam design
- Free of horizontal movement
- Insensitive to side load
- Electroless nickel plated alloy tool steel
- Stainless steel available
- Hermetically sealed available
Applications:
- Silo/hopper/tank weighing
- Truck/rail scales
- Fork-lift scales
Description:
The double-ended mounting provides good restraint to possible movement of the tanks and, in many cases, eliminates the need for check rods. The Shear Beam design gives excellent performance for high capacity loading. The output is rationalized to facilitate multiple-cell application.DSE is constructed of alloy tool steel and is potted to IP66 providing excellent protection against moisture and humidity. The DSE, is also available in a stainless steel, hermetically sealed version. it is the ideal choice for vessel weighing and batching systems.Model DSE is designed for multiple load cell applications such as medium to high-capacity bin, silo, and hopper weighing applications.

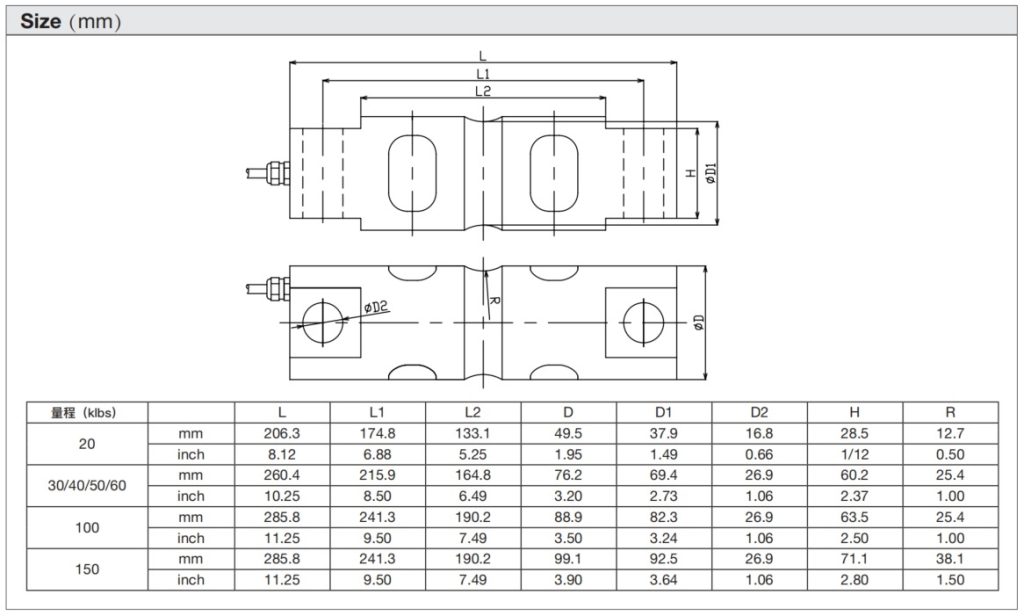

Dimensions:
Parameters:
| Specifications: | ||
| Rated capacity-R.C. (Emax) | lbs | 20K, 30K, 40K, 50K, 60K, 100K, 150K |
| Rated output-R.O. | mV/V | 3 ± 0.0075 |
| Zero balance | mV/V | ≤ ± 0.02 |
| Non-linearity | % R.O. | ± 0.025 |
| Hysteresis | % R.O. | ± 0.025 |
| Non-repeatability | % R.O. | ± 0.02 |
| Creep error (30 minutes) | %R.O. | ± 0.030 |
| Temperature effect on min. dead load output
|
% R.O. /10°C | ± 0.02 |
| Temperature effect on sensitivity
|
% R.O. /10°C | ± 0.02 |
| Compensated temperature range | °C | -10…+40 |
| Operating temperature range | °C | -40…+80 |
| Excitation voltage | V | 5…15 |
| Input resistance | Ω | 760±10 |
| Output resistance | Ω | 700±5 |
| Insulation resistance | MΩ | ≥ 5000 |
| Safe overload | % Emax | 150 |
| Ultimate overload | % Emax | 300 |
| Construction | Nickel plated alloy Steel | |
| Environmental protection | IP66 | |
| Cable length | m | 8m/ 13m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
