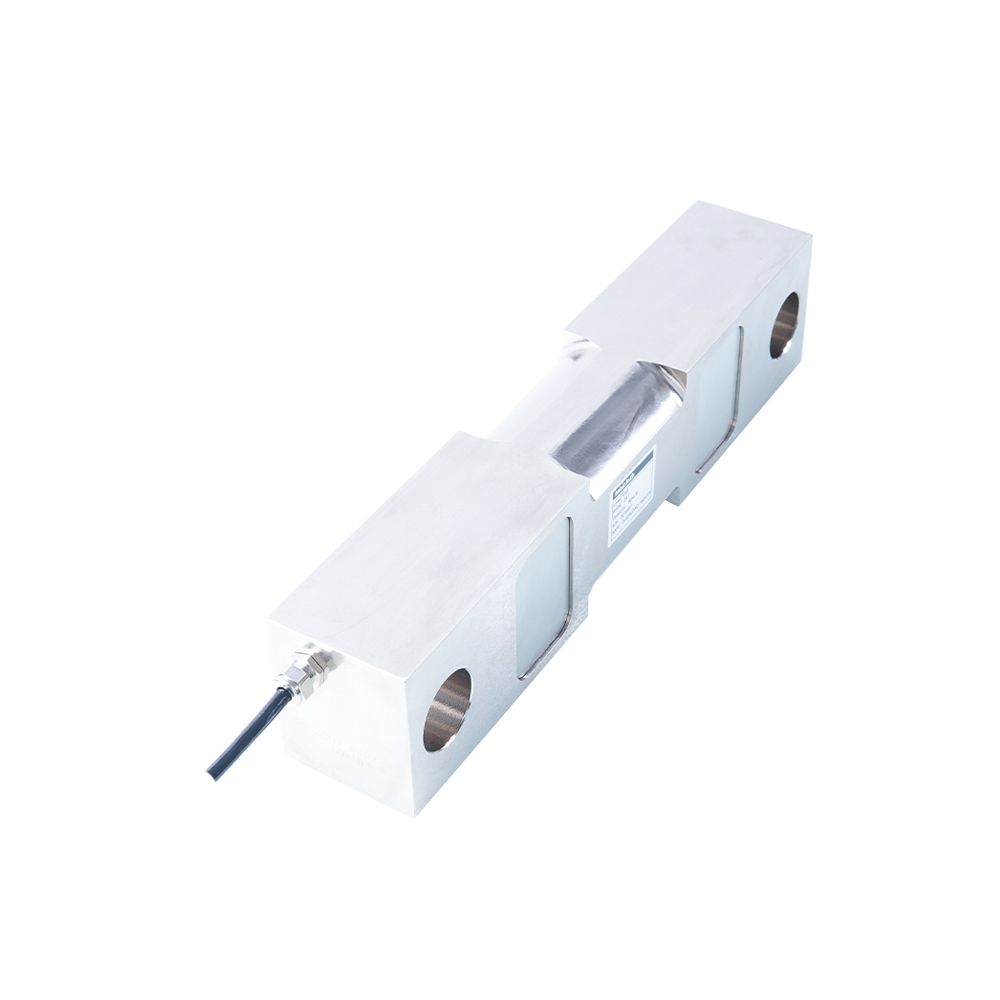

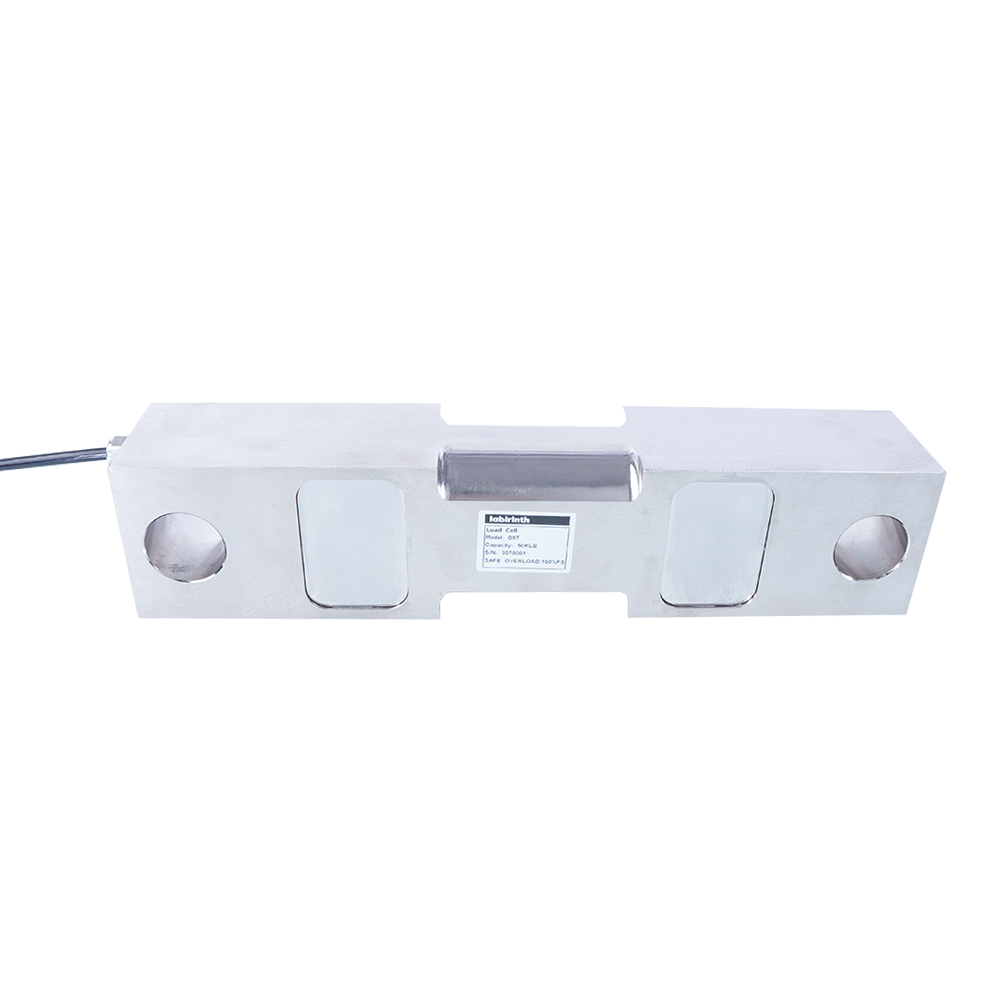

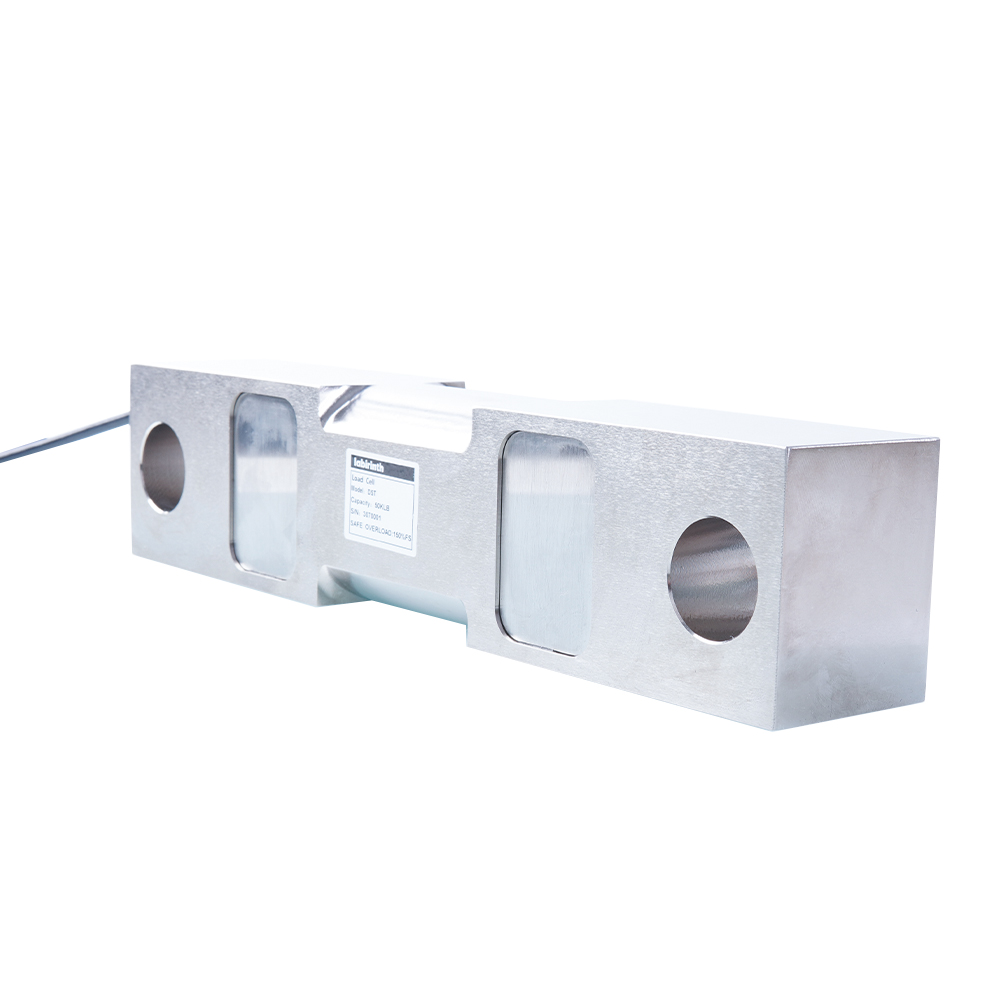

DST Double-Ended Shear Beam Load Cells for Hopper Weighing Systems
Short Description:
Looking for DSC double-ended shear beam load cells for tank scales? We are a pro load cell maker. We built our DSC models for tank weighing. They provide high accuracy and reliability. Contact us for customized solutions and competitive pricing.
Features:
- Capacities (klbs):20to 125
- Stainless steel available
- Free of horizontal movement
- Insensitive to side load
- Electroless nickel plated alloy tool steel
Applications:
- Truck scales , railScales
- Silo/hopper/tank weighing
- Forklift scales
Description:
The double-ended mounting provides good restraint for possible movement of the tanks and, in many cases,eliminates the need for check rods. The Shear Beam design gives excellent performance for high-capacity loading.Model DSC is designed for multiple load cell applications such as medium to high-capacity bin, silo, and hopper weighing applications. The RVSF, constructed of a nickel-plated high alloy tool steel and fully potted to IP65 to protect from water damage, is also available in a stainless steel, hermetically sealed version. it is the ideal choice for Truck/rail scales，vessel weighing and batching systems.

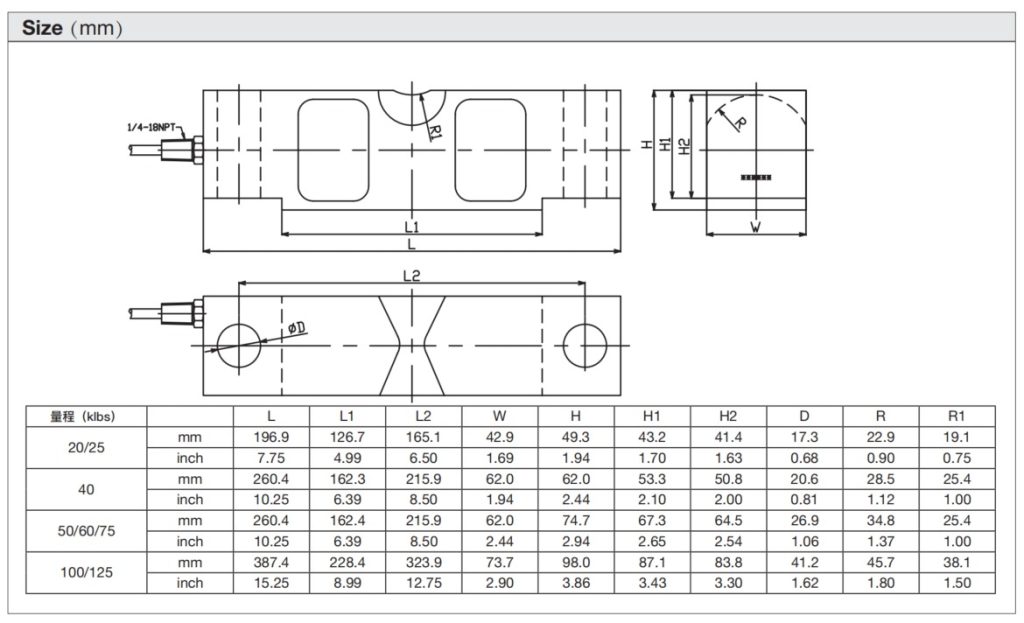

Dimensions:
| Parameters: | ||
| Specifications: | ||
| Rated Load | kg | 20,25,40,50,60,75,100,125 |
| Rated Output | mV/V | 3.0±0.0075 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.03 |
| Combined Error | %R.O. | ±0.025 |
| Non-linearity | %R.O. | ±0.025 |
| Hysteresis | %R.O. | ±0.025 |
| Temperature effect on sensitivity | %R.O./10℃ | ±0.02 |
| Temperature effect on min. dead load output | %R.O./10℃ | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -40~+80 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | |
| Input impedance | Ω | 760±10 |
| Output impedance | Ω | 750±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %Emax | 150 |
| Ultimate Overload | %Emax | 300 |
| Material | Nickel plated alloy steel | |
| Degree of protection | IP66 | |
| The length of the cable | m | 8月13日 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
