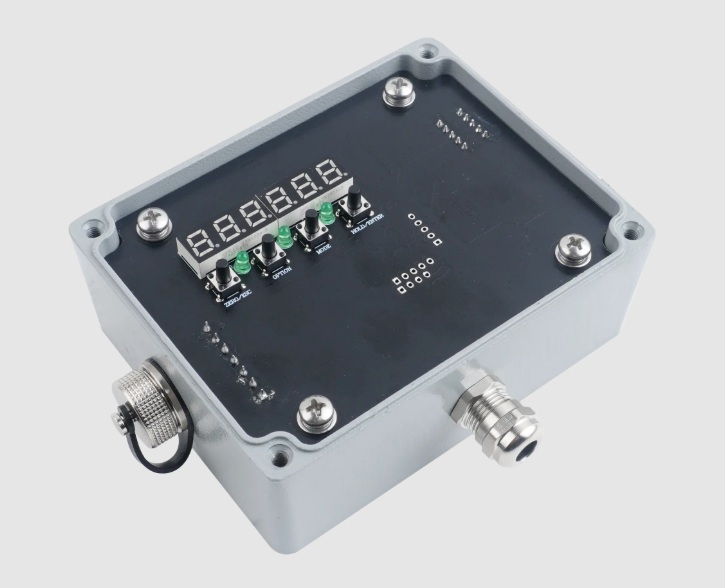

DT39 Digital Load Cell Indicator with RS485 Output and Weight Display
Short Description:
The DT39 is a small digital load cell indicator. It’s made for industrial weighing tasks. It offers stable performance and easy operation. Plus, it uses RS485 communication. This makes it great for concrete batching, metallurgy, chemicals, feed, and food processing.
Features:
1. Small volume, unique design, easy operation.
2. Be suitable for resistance strain sensors, force transducers. Automatic zero -tracking, automatically zero when powered on. Serial communication interface.
3. Through serial port calibration weight display (serial port calibration switch).
4. RS485 output.
5. Power saving function: Enter power saving mode after about 5 minutes of operation without buttons
Specifications:
| Power Supply | DC24V±5% |
| Working | -10℃ -40℃ |
| Display range | :100-900,000 |
| Output range | :0.5μV/d – 200μV/d |
| Nonlinear deviation | :≤0.01% of F.S. |
| Sample rate | :120times/s,480times/s,960times/s |
| Sensor excitation | DC5V±5% |
| Consumption power | :MAX3W |
| Humidity | :≤90%relative humidity（no condensation） |
| Zero voltage adjustable | :-15mV-15mV |
| Sampling method | ∑-Δ |
| Internal resolution | :1/16,000,000 |
| Max. Display division | :50,000d |
| Dimensions | :11*9*6mm |
