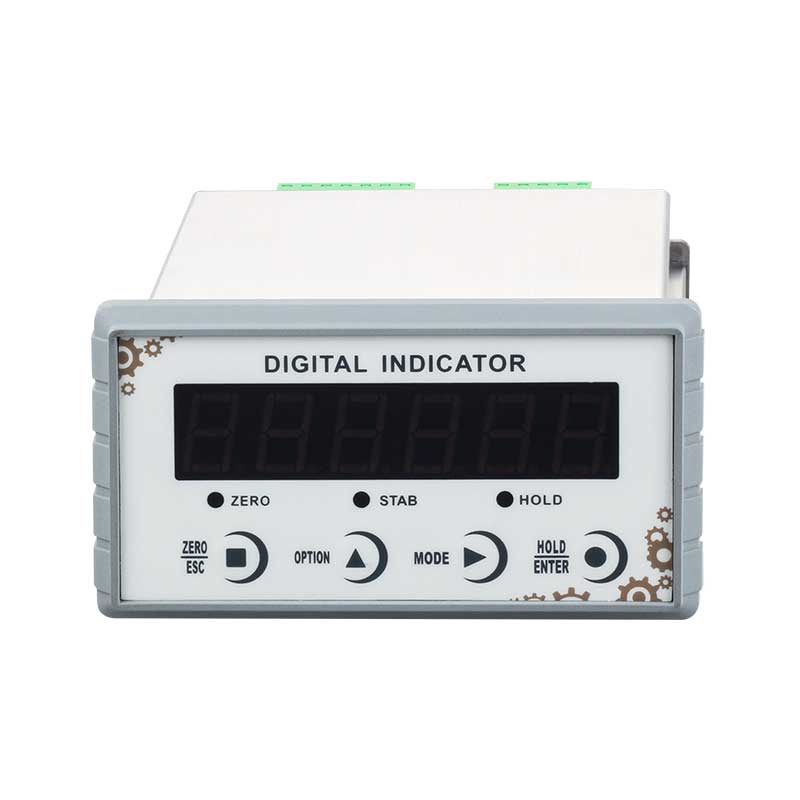

DT45 Digital Panel Mount Weighing Controller for Load Cells
Short Description:
High-precision DT45 panel mount digital controller works with various load cell types. It’s built for industrial weighing and process control.
Features：
1. Small volume, unique design, easy operation
2. Be suitable for resistance strain sensors, force transducers
3. Automatic zero -tracking, automatically zero when powered on
4. Serial communication interface
5. Through serial port calibration weight display (serial port calibration switch)
6. Analog output: 4-20mA.0-10V, On-off output，RS232 or RS485 output
Product Description：
DT45 is a small weight transmitter developed for the occasions where weight transmission is required in industrial sites. The transmitter is small in size, stable in performance, easy to operate, with RS485, analog (current and voltage), and digital interfaces to meet the needs of industrial sites. Widely used in concrete mixing, metallurgy, converter and chemical industry, feed and food processing and other occasions.
Application：
1. Applications of resistance strain load cell and load cell
2. Concrete mixing plant, metallurgy, converter and chemical industry
3. Feed and food processing and other occasions

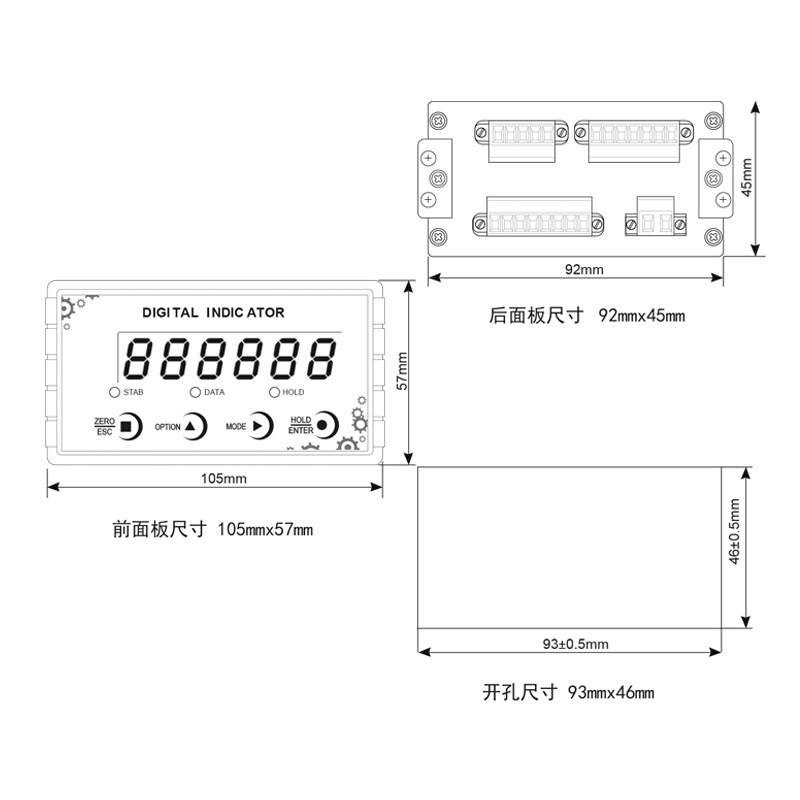

Dimensions：

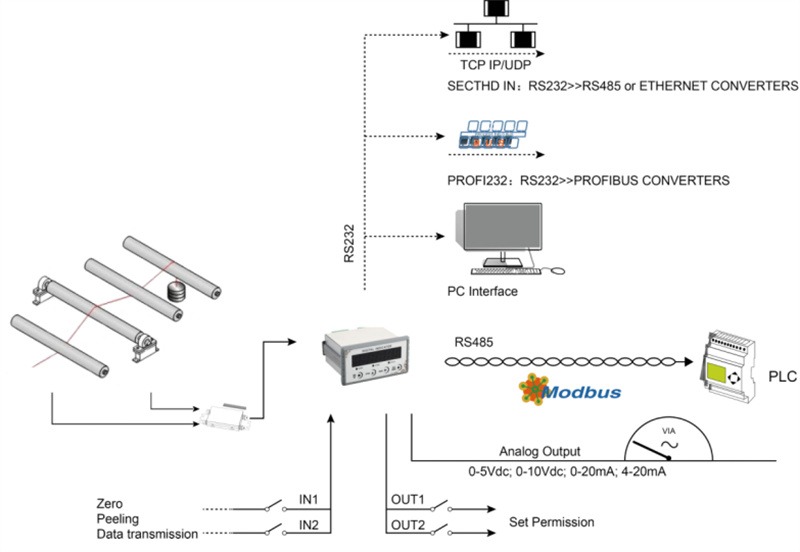

Installation：
Parameters：
| Specifications: | |
| Precision | III |
| Maximum division | nind =3000 |
| Sensor excitation voltage | Uexc = 5v |
| range of working temperature | -10°C to +40°C |
| Sensor Connection | 6 wires |
| Maximum number of connected sensors | 350O 4pcs / 700O 8pcs |
| Display | 6 digits 20mm LED,expandable (X10) display |
| Weighing method | Gross weight/net weight,manual accumulation/automatic accumulation |
| Serial port | RS232 continuous or command mode,optional RS485 |
| Baud rate | 1200/2400/4800/9600 |
| Input voltage | 220VAC 50/60Hz |
| rechargeable battery | 6V/4AH /6V/2.8AH |
| Storage temperature | -25°C to +55°C |
| Relative humidity | 10%-85% non-condensing |
