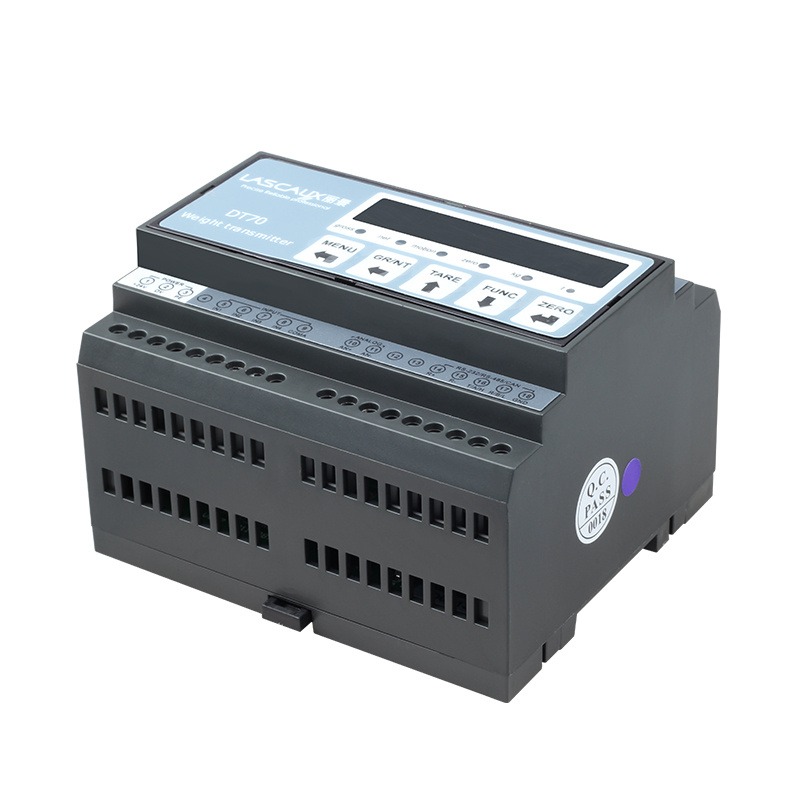

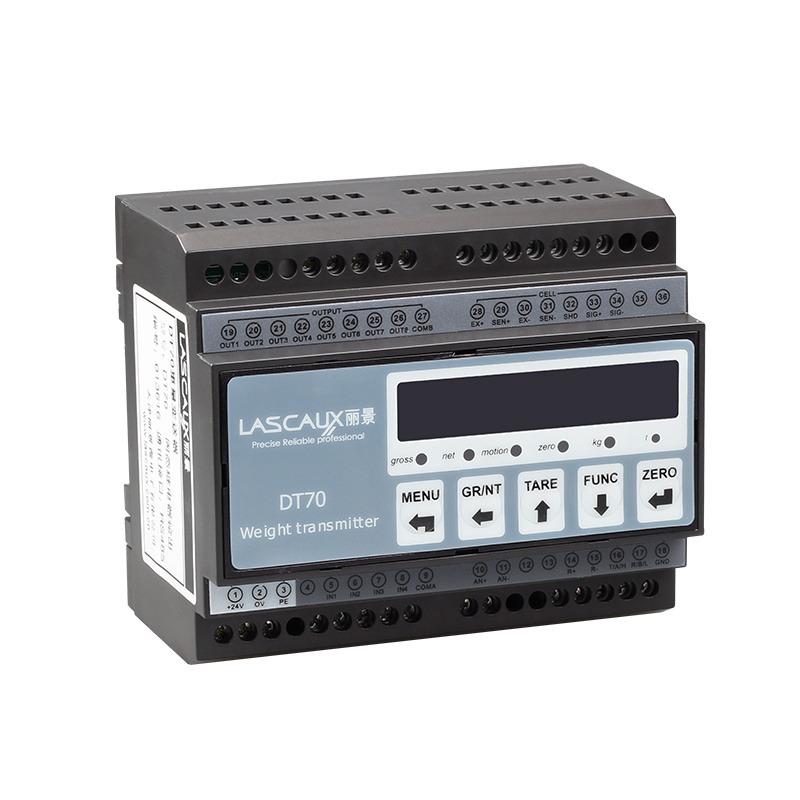

DT70 Rail-Mounted Digital Weight Transmitter for Industrial Weighing
Short Description:
The DT70 rail-mounted digital weight transmitter works with resistance strain load cells. It’s popular in various fields, such as food, light industry, metallurgy, construction, chemicals, and machinery. It ensures accurate weighing and force measurement in industrial processes.
Features：
1. Lower temperature drift;
2. 6-bit LED;
3. Digital/material calibration optional;
4. Key-press/host computer as drive software;
5. Communication interface: RS232/485(Alternative), Optional Modbus protocol;
6. Optional: profibus-DP communication board/CAN interface (alternative);
7. Analog output of 4~20mA, 0~5V, 0~10V;
8. 4-ch optical isolating switch inputs could be respectively used for conversion among tare, zero, net and gross;
9. 4-ch relay isolating outputs could be respectively used for Hi-hi limit, Hi limit, Low limit and Low-low limit.
Product Description：
DT70 strain sensor digital transmission controller is a multi-purpose weight signal conversion device, which integrates display, transmission and control, and has multiple functions such as serial digital signal output and analog signal output; Small and light in weight; DT70 has passed strict electromagnetic compatibility tests and has reliable performance. Suitable for all kinds of tension, pressure, tension measurement, weighing type material level, hopper scales, crane scales, crane scales, tension and pressure testing machines and other resistance strain load cell applications. At the same time, it can meet the digital upgrade of analog weighing sensors, and is widely used in industrial process weighing and force measurement in grain, light industry, metallurgy, building materials, chemical industry, nonferrous metals, energy, machinery and other industries.
Application：
1. Applications of resistance strain load cell and load cell
2. Food, light industry, metallurgy, building materials, chemical industry, nonferrous metals, energy, machinery and other industries are widely used in industrial process weighing and force measurement

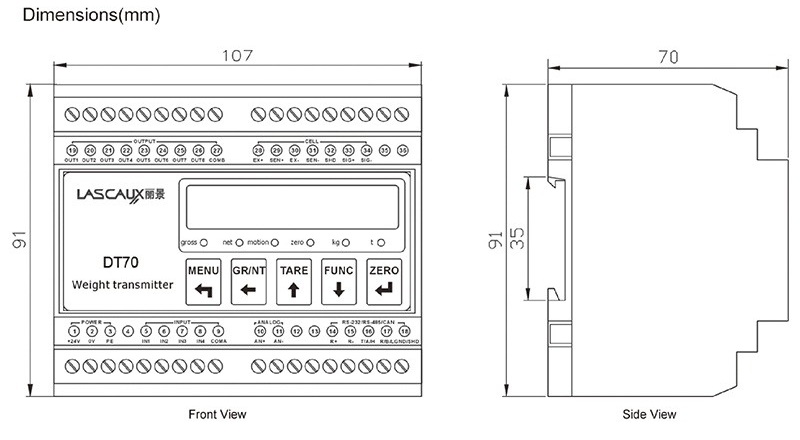

Dimensions：

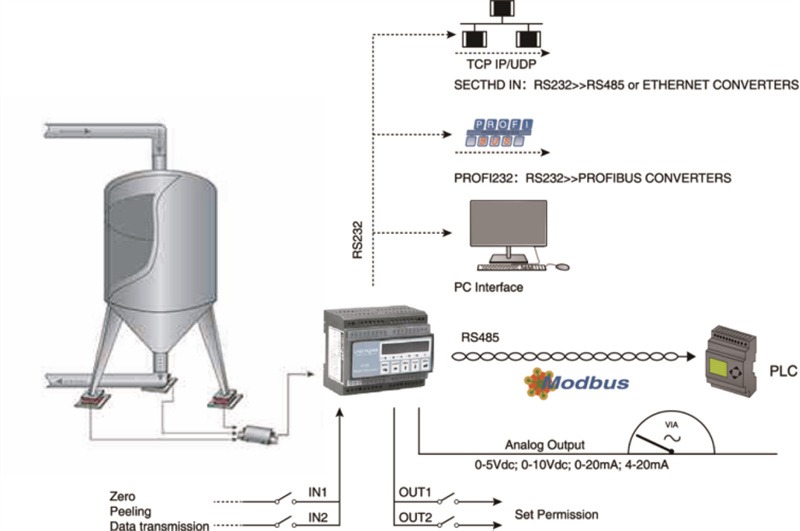

Installation：
Parameters：
| Specifications: | |
| Power supply | DC24V(18v-30v) |
| Working temp. | -5℃-45℃(23℉ -117℉) |
| Display range | 100-900,000 |
| Output sensitivity | 0.5μV/d-200μV/d |
| Non-linear Error | =0.005% of F.S |
| Sample rate | Max. 200 times/s |
| Sensor excitation | DC 10V ±5% |
| Consumption power | Max. 6W |
| Humidity | 90% relative humidity (no condensation) |
| Zero voltage adjustable | 0.05mV-15mV |
| Sampling method | =(0.0008% of the reading+0.3division)/℃ |
| Internal resolution | Delta-sigma |
| Max.display division | 1/16,000,000 |
| Max.display division | 50,000d |
