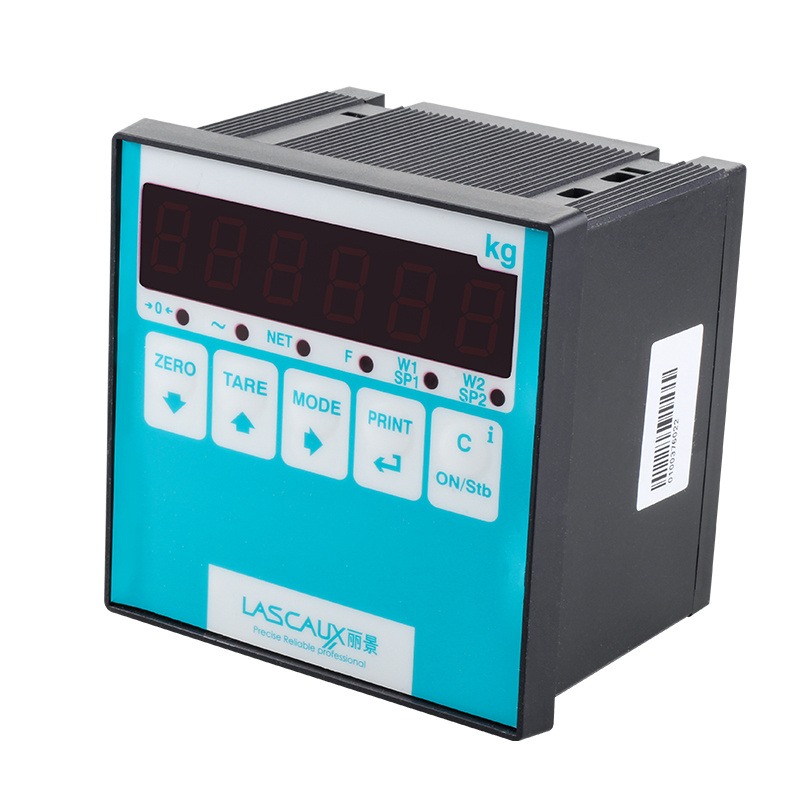

DT85 Panel Mount Multi-Channel Load Cell Weighing Controller
Short Description:
The DT85 multi-channel panel weighing controller works with resistance strain and load cell sensors. It’s perfect for industrial process weighing and measuring force. High precision and easy operation for reliable production monitoring.
Features：
1. Small volume, unique design, easy operation
2. Be suitable for resistance strain sensors, force transducers
3. Cabinet installation and multi function
4. It can be used as a 4 independent or non-independent channels
5. Many interfaces make it suitable for any automation system
Product Description：
DT85 is a cabinet-type multifunctional weight transmitter, which can be used as an independent 4-channel, or 4 non-independent channels connected through a junction box, and can diagnose the condition of each connected sensor, and many interfaces make it suitable in any automated system.
Application：
1. Applications of resistance strain load cell and load cell
2. Widely used in industrial process weighing and force measurement in various industries

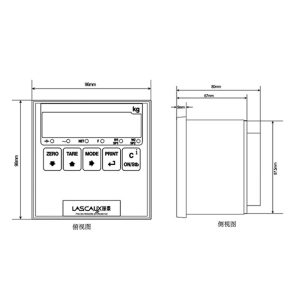

Dimensions：
Parameters：
| Specifications： | |
| Installation | Panel Installation |
| The Power Supply | 12-24VDC;90mA/24V |
| Maximum Powerful | 185mA/12V;90mA/24v |
| Operating Temperature | -10℃-40℃(14℉ -104℉) |
| AD Chip Conversion Rate | 200 times per second |
| Display Screen | 6 height 10mm characters |
| Status Indicator Lamp | Six LED |
| Sensor Excitation Voltage | 5VDC±5% |
| Com Port Communication | 1 RS232 and 1RS485 |
| Input/output Interface | 2 input/2 output |
| Analog Output | 4-20mA;0-5v;0-10v |
| Dimensions(in mm) | 96*96*80 |
