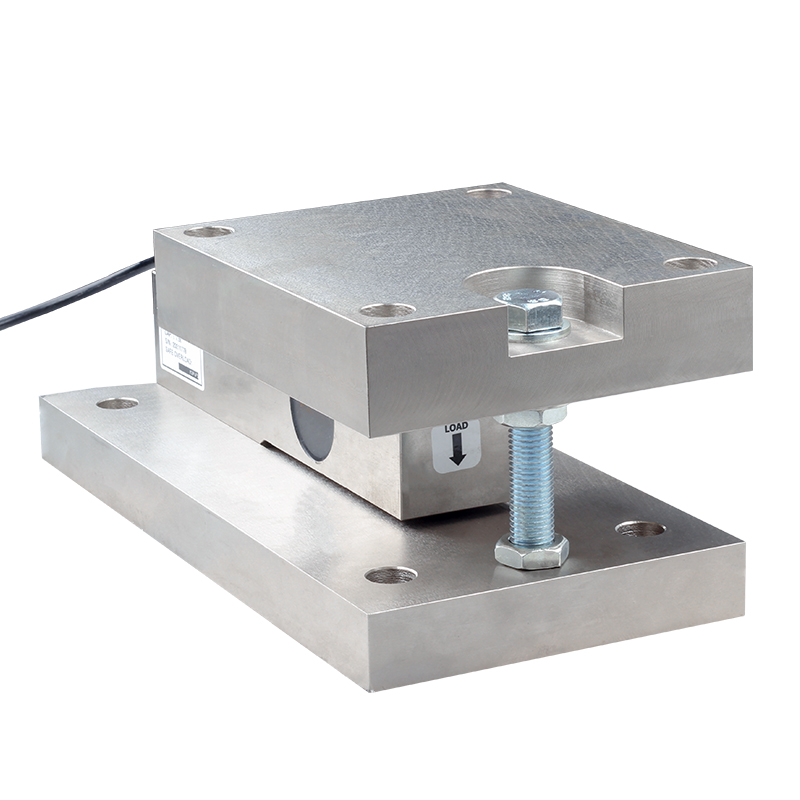

FW Cantilever Beam Weighing Module (0.5t–10t) for Suspended Hoppers

The manufacturer designed the FW weighing module for suspended hoppers and containers. It installs with little effort and provides strong resistance to side loads. Plus, it provides accurate and stable weighing in industrial settings.

Features:

1.  Unique structure, simplifies load cell installation on tanks
2.  Three different module types: Fixed, Semi-float, Full-float, Eliminate the error caused by heat expansion and cold contraction
3.  Support the bolt, prevent the equipment from overturning
4.  Alloy steel with nickel plating; Stainless steel material is available
5.  Easily and quickly install
6.  Easy to replace Reducing load cell damage and plant down-time

Description:

The FW static load weighing module adopts the SB cantilever beam load cell, and the measuring range is 0.5t to 7.5t. It is characterized by compact structure, no need to install other accessories, and the self-stabilizing sensor pressure head makes the measurement accurate and repeatable; Quick and easy installation saves installation and downtime maintenance time. The static load weighing module can be easily installed on containers of various shapes, and can be conveniently loaded, batched or stirred in this container.

Applications:

Suitable for Hoppers or containers that can be suspended.

Dimensions：

Parameters：
