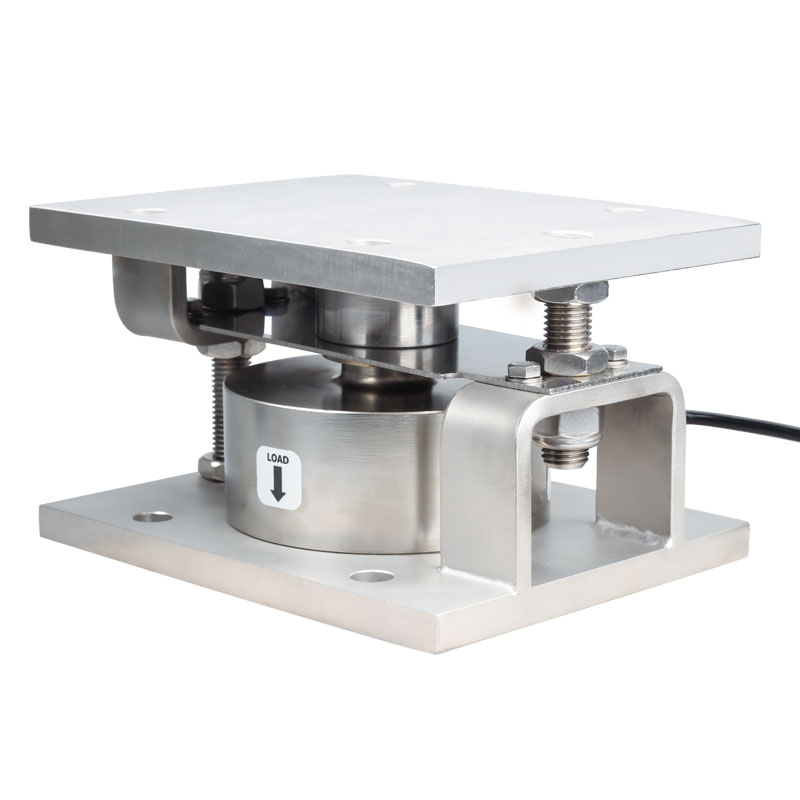

GL Batching Weighing Module for Hopper, Tank and Silo Systems
Short Description:
The GL hopper, tank, and silo batching weighing module gives precise weight measurements. It works well for industrial storage and batching systems. Installed under hoppers, tanks, or silos, it changes the structure. Now, it becomes a reliable weighing system. It also helps track material levels. This setup controls production processes with high efficiency.
Features：
1. Unique structure, simplifies load cell installation on tanks, silo, and other weighing vessels
2. Remove the weighing error thermal expansion, contraction
3. Support the bolt, prevent the equipment to avoid upsetting
4. Alloy steel, nickel plating; Stainless steel material is available++++++++++++++++++++++++++++
5. Install Easily and quickly
6. Reducing load cell damage and plant down-time
7. Suitable for tanks, silo, and others weighing control
Applications：
Suitable for tanks, silo, and others weighing control.
Description：

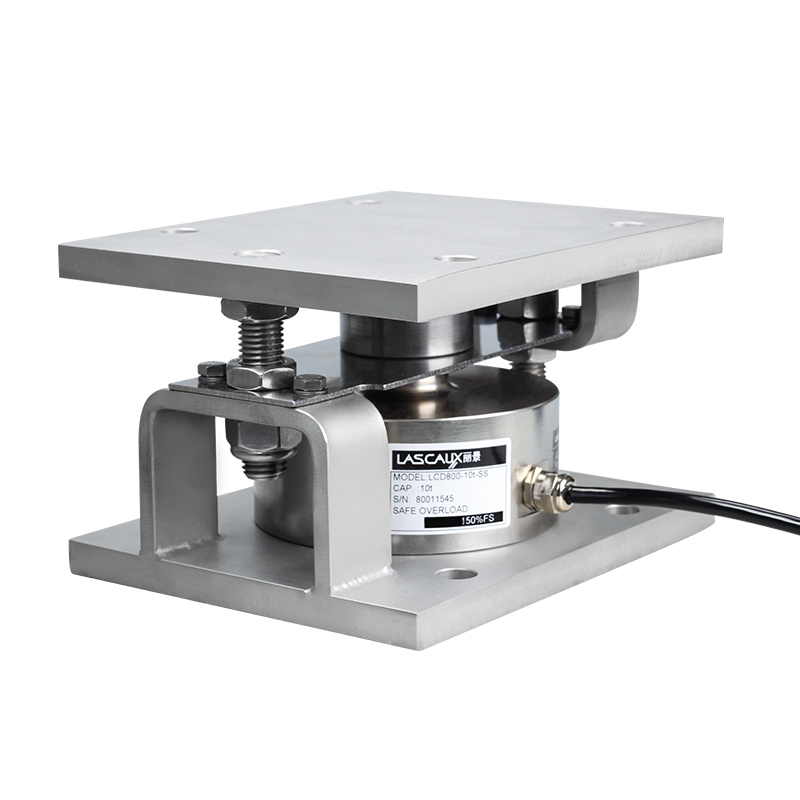

GL static load weighing module adopts LCD800 circular plate sensor, measuring range 10t to 100t is optional, can also be customized, its characteristics are compact structure, no need to install other accessories, self-stable sensor bearing head makes the measurement accurate, good repeatability; Fast and easy installation, save installation and downtime maintenance time. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, batched or stirred in this container.

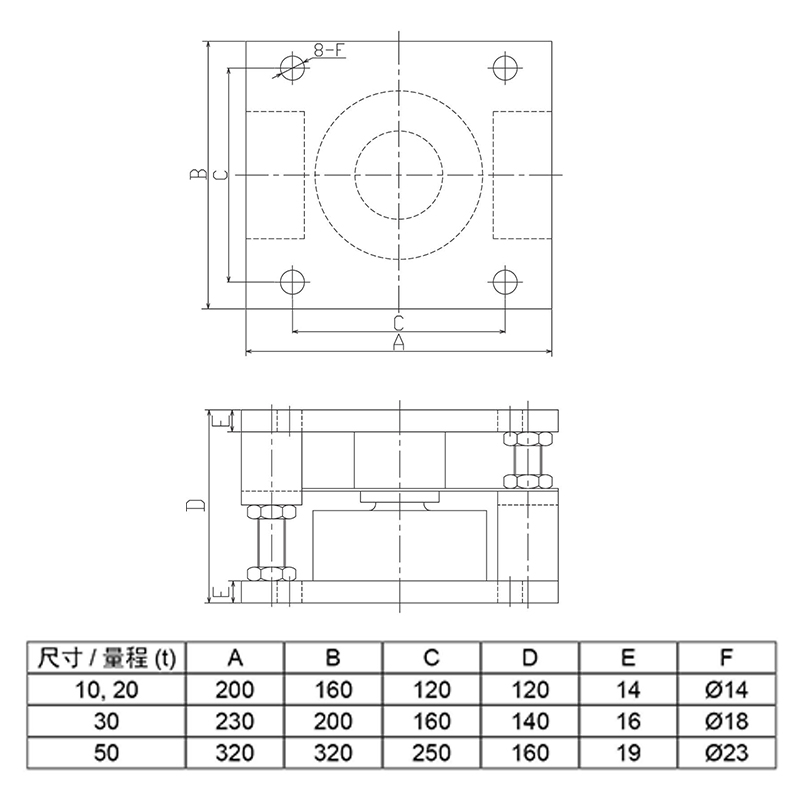

Dimensions：
Parameters：
| Specifications: | ||
| Load Cell | LCD800/LCD800-SS | |
| Rated Load(R.C.) | t | 10,20,30,50 |
| Rated Output(R.O.) | mV/V | 2.0±0.2 |
| Safe overload | %R.C. | 150 |
| Ultimate overload | %R.C. | 300 |
| Protection class | IP67/IP68 | |
| Wiring code | Ex: | Red:+Black:- |
| Sig: | Green:+White:- | |
| Shield: | Bare | |
