The HBB bellows load cell manufactured by Labirinth is constructed from stainless steel with a welded seal and offers IP68 protection. Its measuring capacity ranges from 10 kg to 500 kg.
Payment: T/T, L/C, PayPal

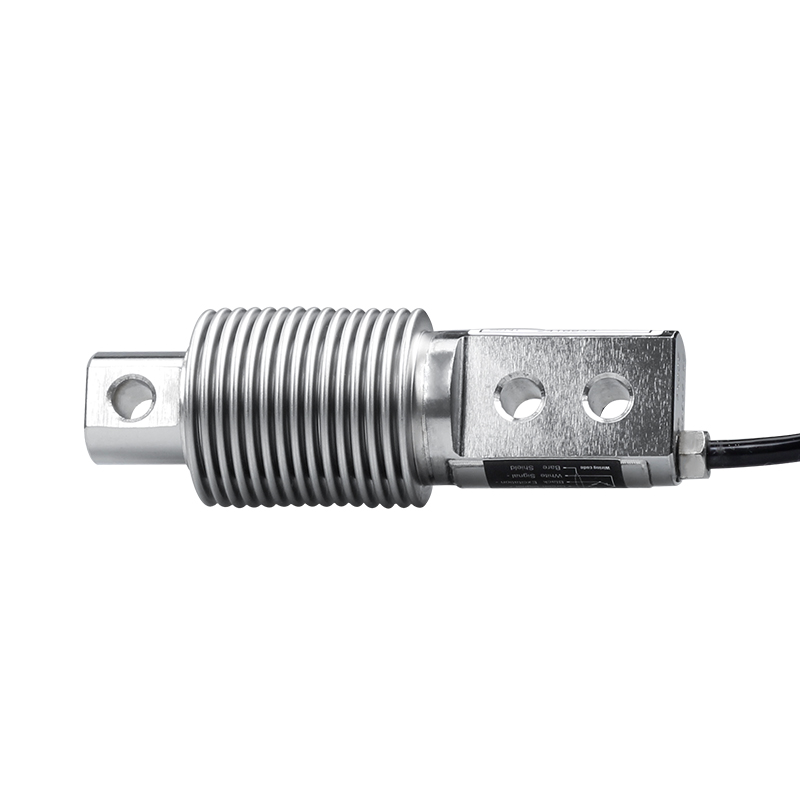

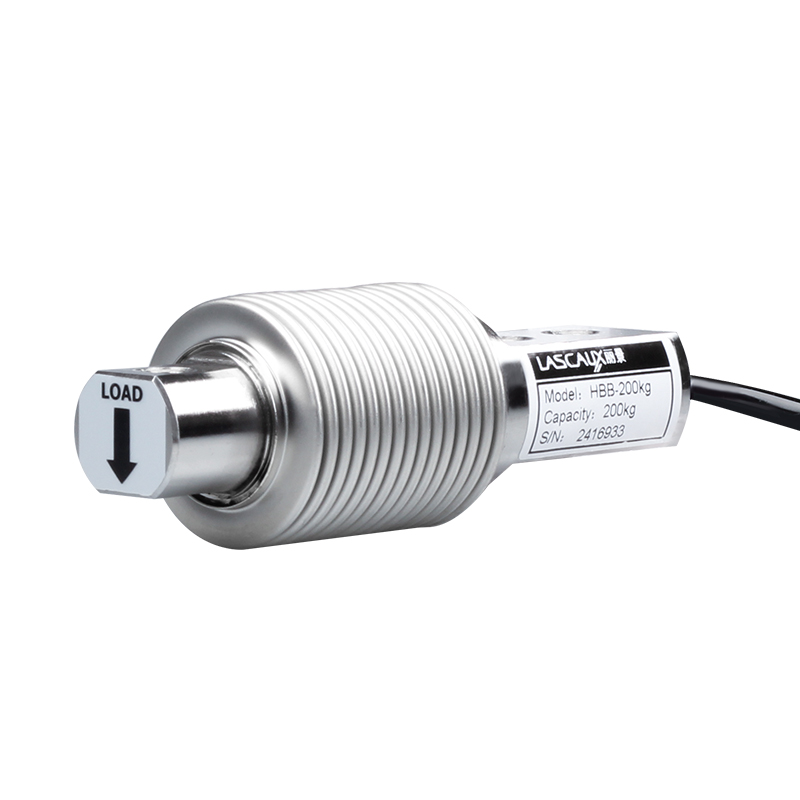

HBB Stainless Steel Bellows Load Cell with Welded Seal
Short Description:
Features：
1. Capacities (kg): 10~500
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. The capacity of anti-deviated load is very strong
5. Stainless steel material
6. Degree of protection reaches to IP68
7. Module installing
Applications：
1. Packaging scales, belt scales
2. Platform scales
3. Hopper scales, tank scales
4. Ingredients weighing control in chemical, pharmaceutical, food and other industries
Description：

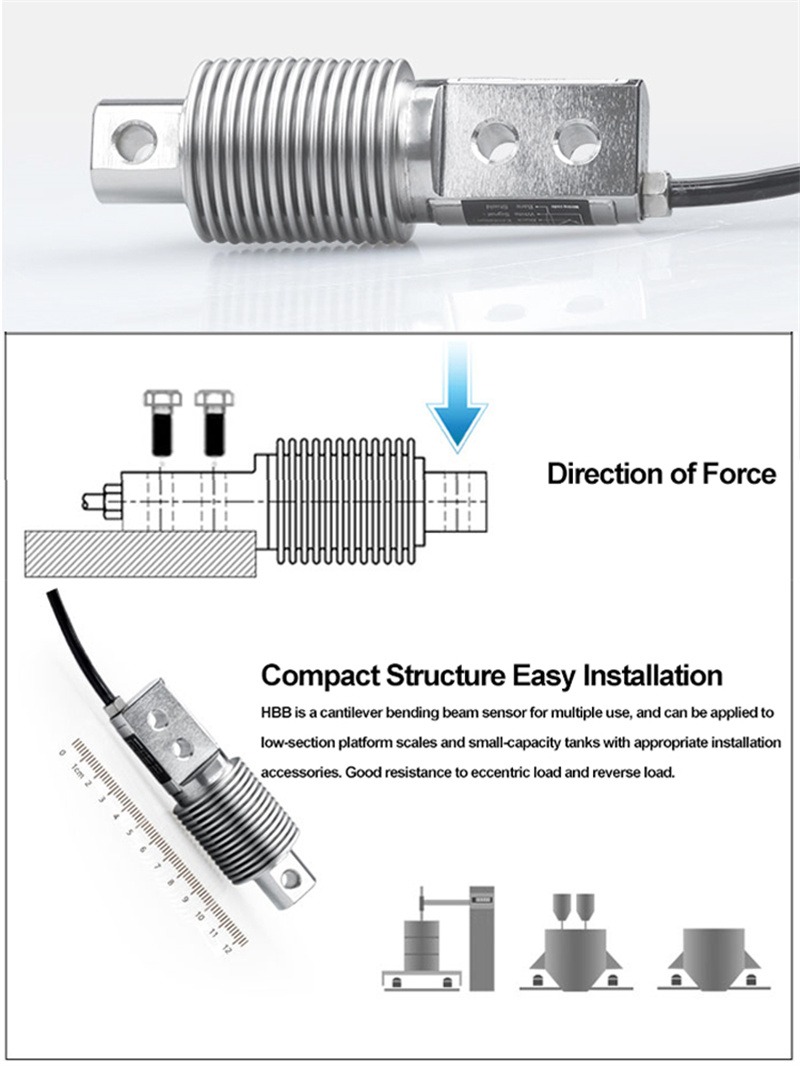

HBB bellows load cell, wide range, from 10kg to 500kg, made of stainless steel, compact structure, easy installation, high comprehensive accuracy, good long-term stability, fully welded structure and waterproof wire to ensure that the sensor can be used in wet places In the environment, the protection level reaches IP68. It is used for multiple cantilever bending beam sensors. It can be applied to low-section platform scales and small-range tanks with appropriate installation accessories, and can well resist partial load and reverse load.

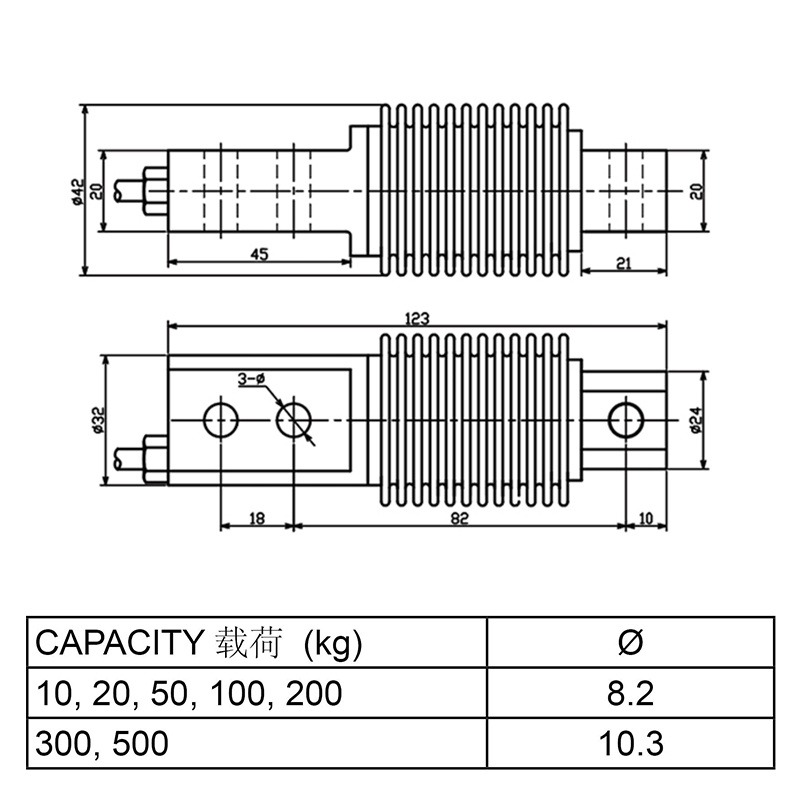

Dimensions：
Parameters：
| Specifications: | ||
| Rated Load | kg | 10,20,50,100,200,300,500 |
| Rated Output | mV/V | 2.0±0.0050 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.02 |
| Comprehensive Error | %R.O. | ±0.01 |
| Compensated Temp.Range | ℃ | -10~+40 |
| Operating Temp.Range | ℃ | -20~+70 |
| Temp.effect/10℃ on output | %R.O/10℃ | ±0.02 |
| Temp.effect/10℃ on zero | %R.O/10℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 5 |
| Input impedance | Ω | 380±10 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | =5000(50VDC) |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Stainless Steel | |
| Degree of protection | IP68 | |
| The length of the cable | m | 3 |
| Tightening torque | N·m | 10kg-200kg:25N·m,300kg-500kg:60N·m |
| Wiring code | Ex: | Red:+Black:— |
| Sig: | Green:+White:- |
