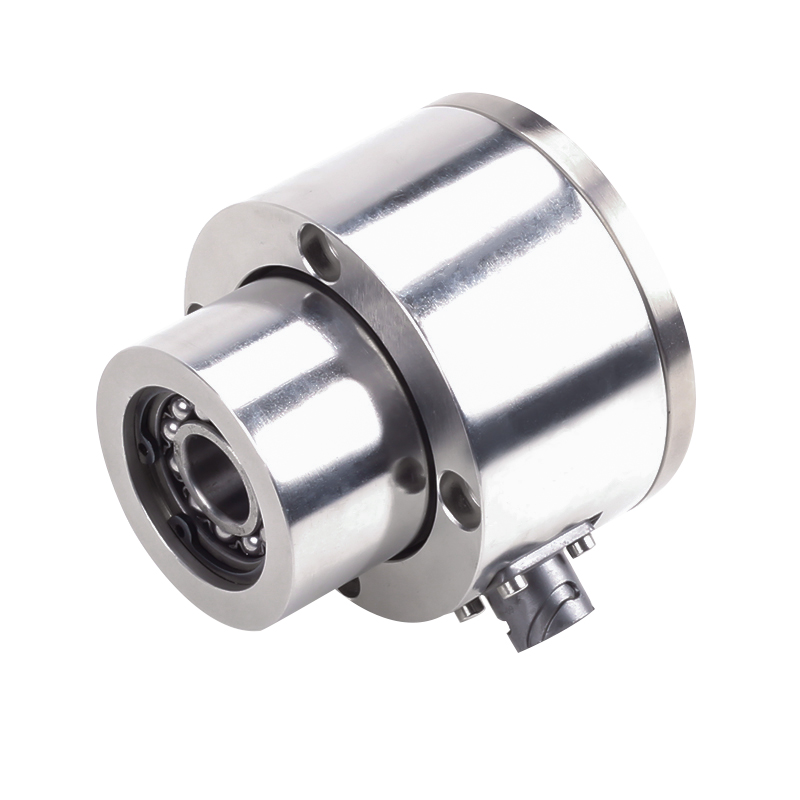

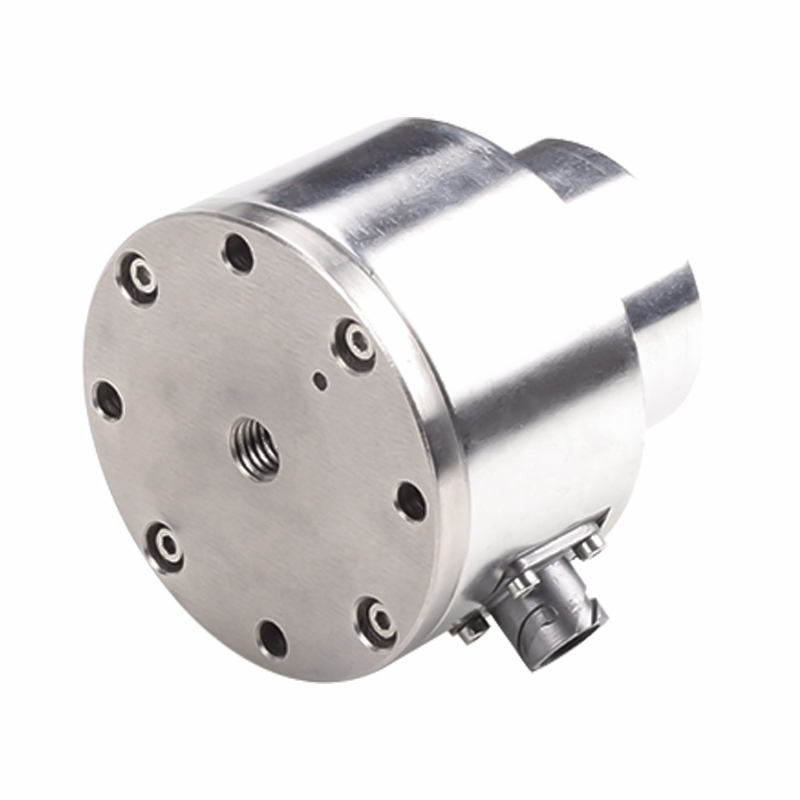

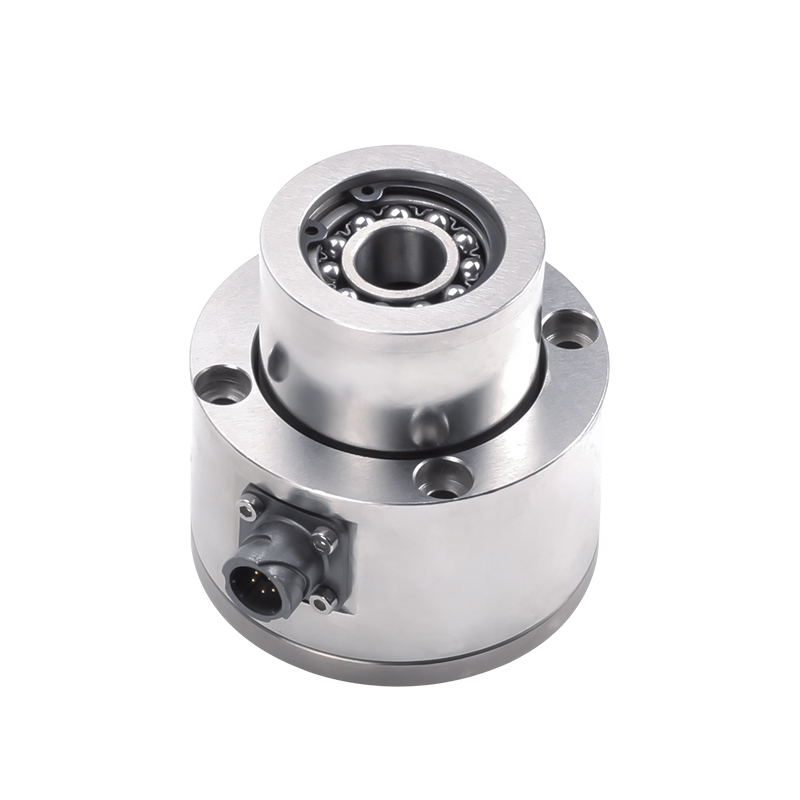

HLT Tension Sensor Online Precise Measurement Tension Detector
Short Description:
Tension Load Cell Sensor from Labirinth load cell manufacturers,HLT Tension Sensor Online Precise Measurement Tension Detector is made of stainless steel, which is IP65 protection. The weighing capacity is from 10 kg to 100 kg.
Payment: T/T, L/C, PayPal
Features：
1. Capacities (kg): 10 to 100
2. Resistance strain measurement method
3. The level of water-proof reaches IP65
4. Internally generated calibration signal
5. Compact structure, easy to install
6. High comprehensive precision, high stability
7. High quality alloy steel with nickel plating
8. Stainless steel material is available
Applications：
1. Measurement of tension during winding and unwinding
2. Plastic, textile, packaging and other industries
Product Description：

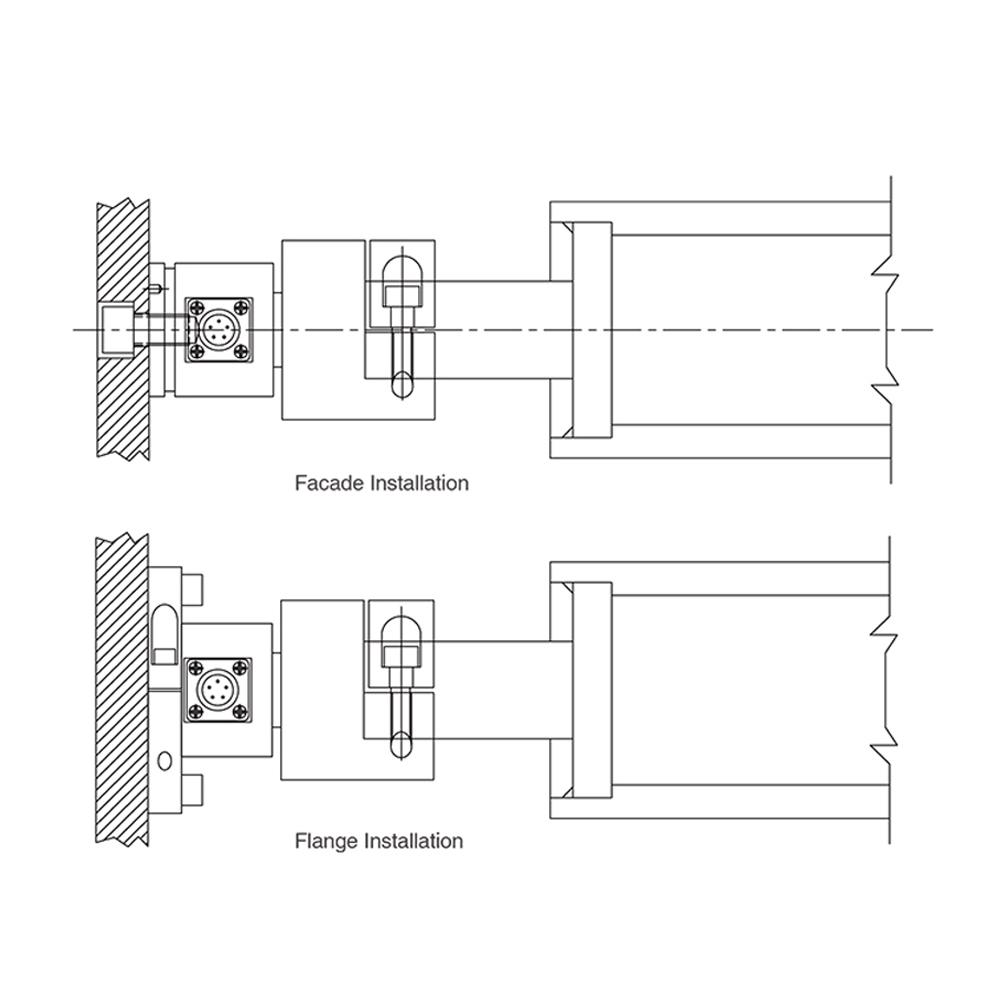

HLT tension sensor, measuring range from 10kg to 100kg, made of alloy steel, nickel-plated on the surface, a variety of installation methods, can meet various installation requirements, such as end-face installation and bracket installation, 2 in combination, with the transmitter, with For tension measurement, for example, it can be used to measure the tension of plastic film or tape used for winding on mechanical guide rollers.

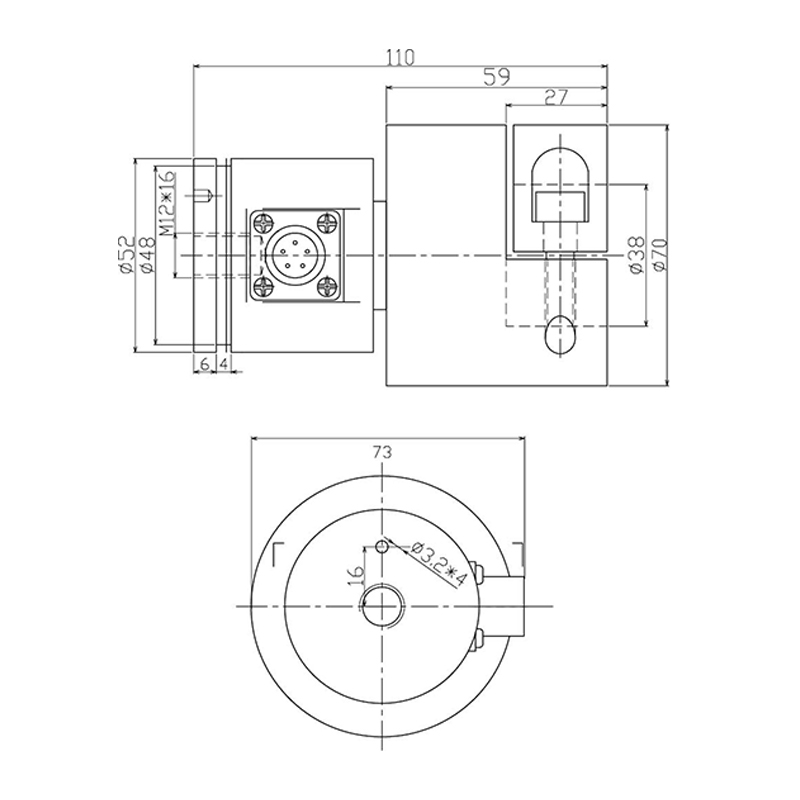

Dimensions：
Parameters：
| Specifications: | ||
| Rated Load | kg | 10,25,50,100 |
| Rated Output | mV/V | 1±0.1% |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.3 |
| Compensated Temp.Range | ℃ | -10~+40 |
| Operating Temp.Range | ℃ | -20~+70 |
| Temp.effect/10℃ on output | %R.O./10℃ | ±0.3 |
| Temp.effect/10℃ on zero | %R.O./10℃ | ±0.3 |
| Recommended Excitation Voltage | VDC | 5月12日 |
| Maximum Excitation Voltage | VDC | 5 |
| Input impedance | Ω | 380±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | =5000(50VDC) |
| Safe Overload | %R.C. | 50 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel | |
| Degree of protection | IP65 | |
| The length of the cable | m | 3m |
| Wiring code | Ex: | Red:+Black:- |
| Sig: | Green:+White:- | |
