LC1030 High-Precision Single Point Load Cell For Package Scale
Short Description:
The LC1030 high-precision single-point load cell is ideal for package scales. Made from aluminum alloy, it delivers accurate and reliable measurements for counting, packaging, and industrial weighing, ensuring efficient and precise operations.
Features：
Load Cell Capacity:5kg…50kg
High comprehensive accuracy and good long-term stability
Simple structure and easy installation
Recommended platform size: 200*200mm
Aluminum alloy material, surface anodized
Corner deviation has been adjusted
Optional
– Explosion-proof
Applications：
Electronic scale, counting scale
Package scale, medical scale
Industrial weighing and small platform scale
Description：
LC1030 is a great low-capacity load cell. It has high precision and manufacturers make it from aluminum alloy. This design offers strong stability and resists bending and torsion well. They anodize the surface. This makes it the best choice for mass production in the weighing industry. It also boosts efficiency and competitiveness.

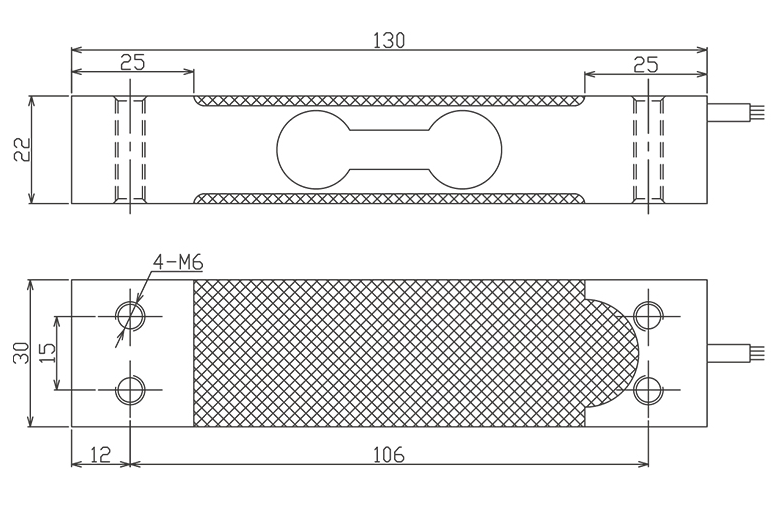

Dimensions：
Parameters:
| Specifications: | ||
| Rated Load | kg | 3,6,10,15,20,30,50 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 0.4 |
| Recommended Platform size | mm | 300*300 |
| Tightening Torque | N·m | 3kg-30kg:7N·m 50kg:10N·m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
