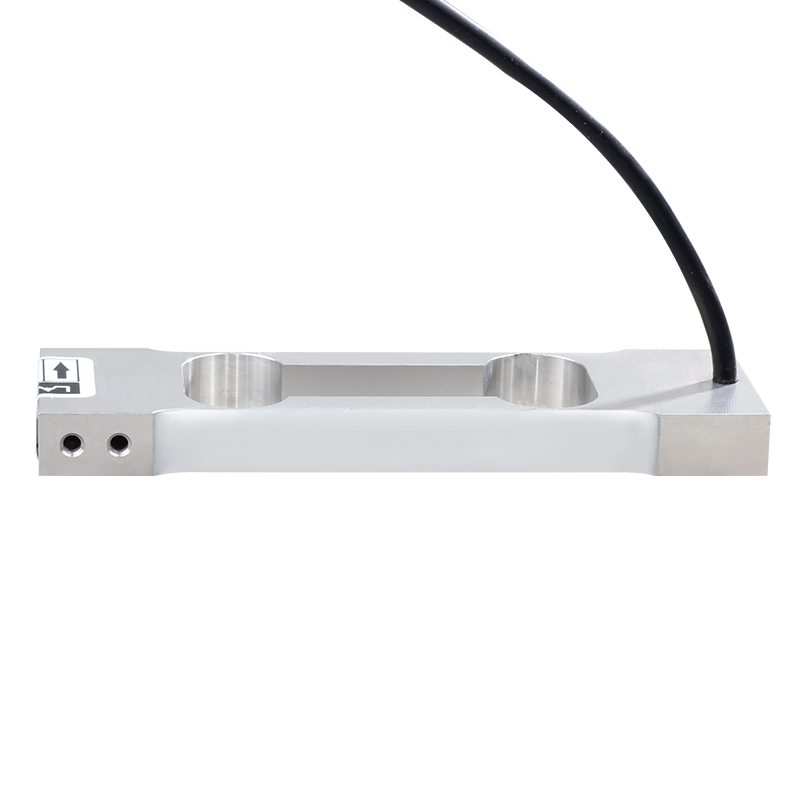

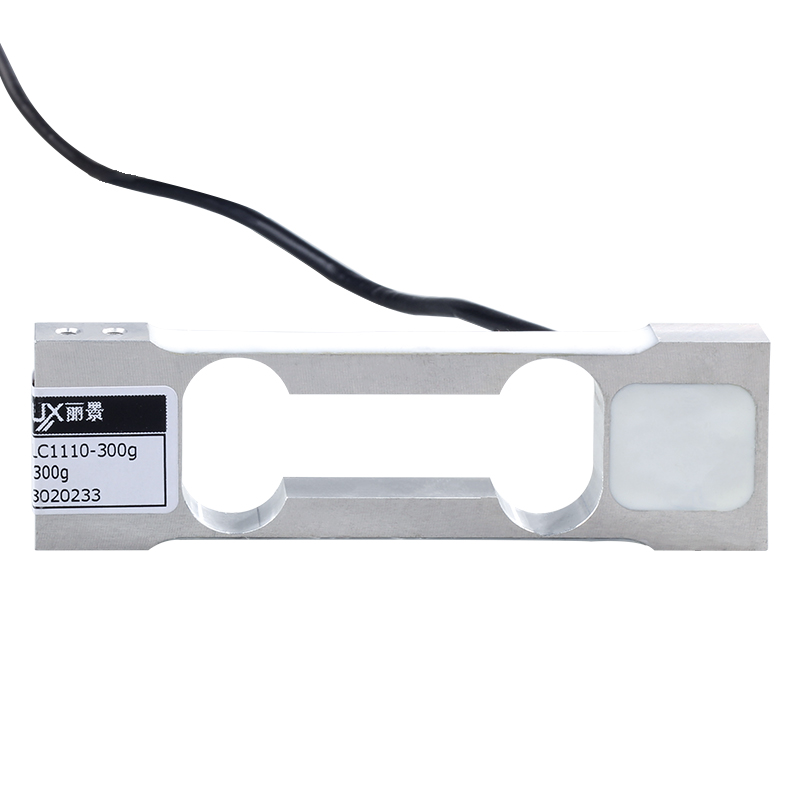

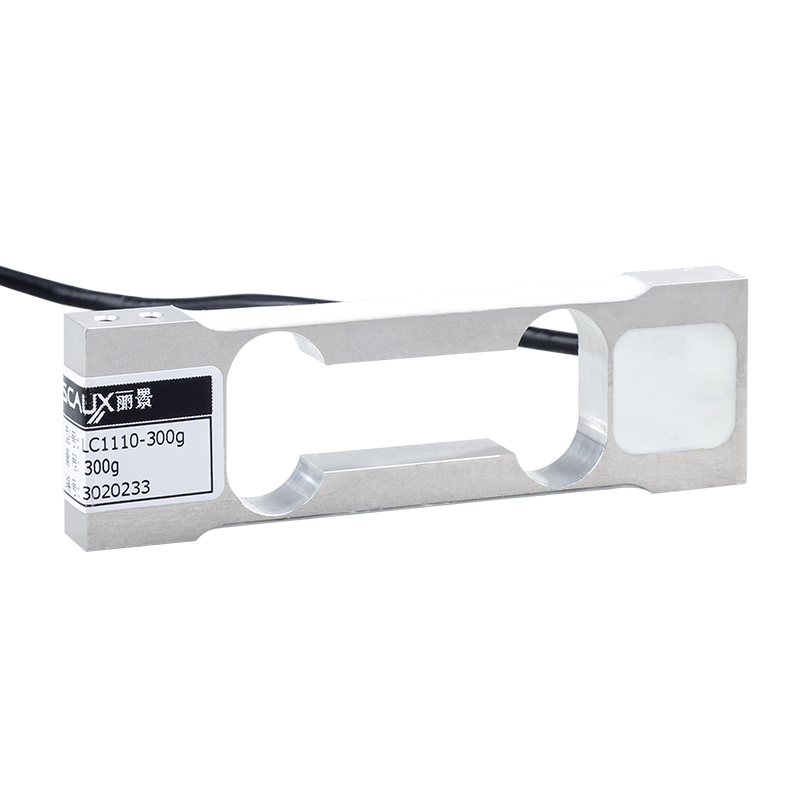

LC1110 Aluminum Alloy Single Point Load Cell for Retai
Short Description:
Single Point Load Cell from Labirinth load cell manufacturer,LC1110 aluminum alloy single point load cell for retail scale is made of aluminum, which is IP65 protection. The weighing capacity is from 0.2 kg to 3 kg.
Features:
- Capacities (kg): 0.2~3
- High comprehensive precision, high stability
- Compact structure, easy to install
- Small size with low profile
- Anodized Aluminum Alloy
- The four deviations has been adjusted
- Recommended Platform size: 200mm*200mm
Applications:
- Electronic Scales, Counting Scales
- Packaging Scales
- Industries of Foods ,Pharmaceuticals, industrial process weighing and control
Description:
LC1110 is a small single point load cell, 0.2kg to 3kg, low cross-section and small size, made of aluminum alloy, strong stability, good bending and torsion resistance, anodized surface, protection level of IP65, can be applied in in a variety of complex environments. The deviation of the four corners has been adjusted. The recommended table size is 200mm*200mm. It is mainly suitable for industrial weighing systems such as low-range platform scales, jewelry scales, and medical scales.

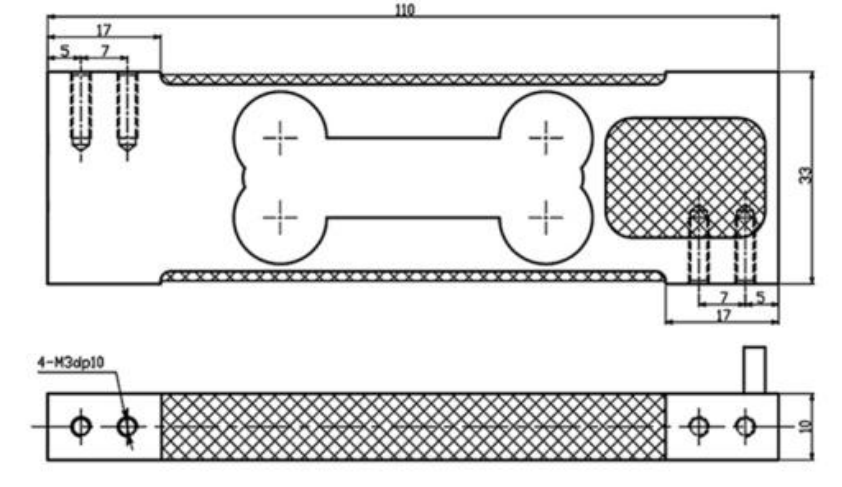

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 0.2,0.3,0.6,1,1.5,3 |
| Rated Output | mV/V | 1.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep/30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 0.4 |
| Recommended Platform size | mm | 200*200 |
| Tightening Torque | N·m | 2 |
