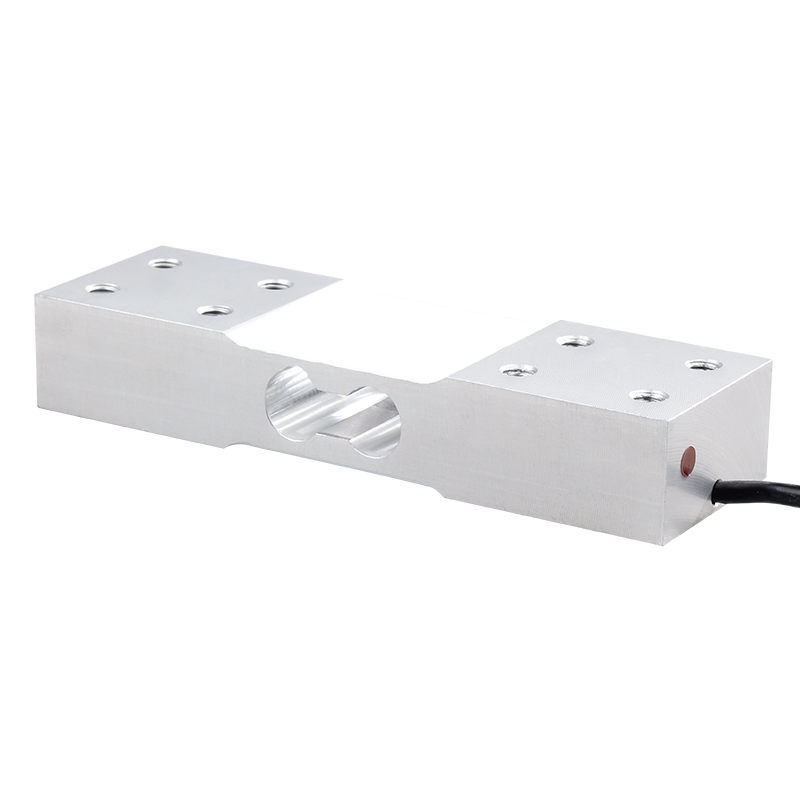

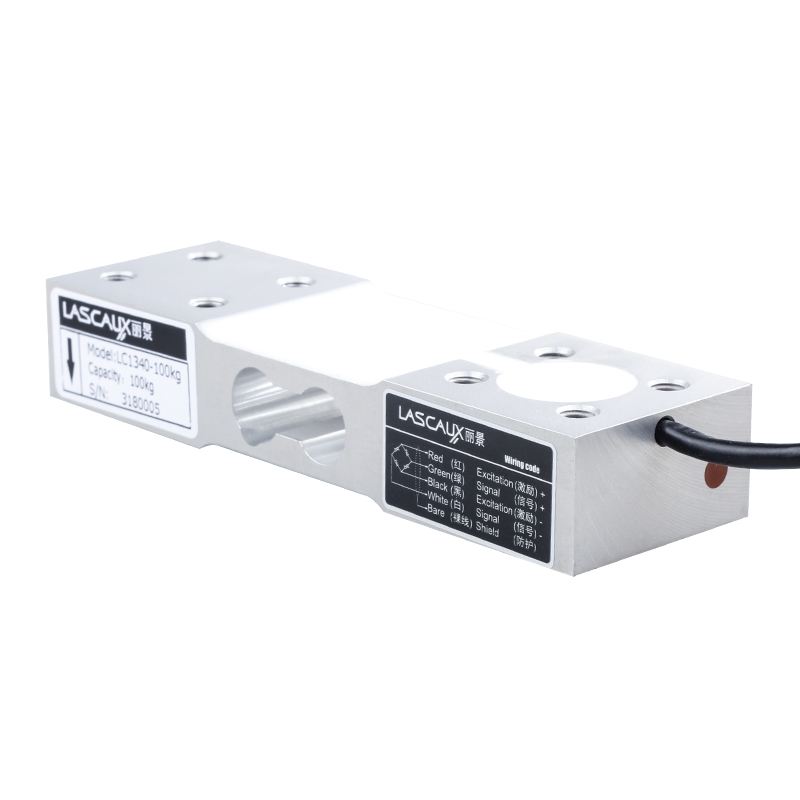

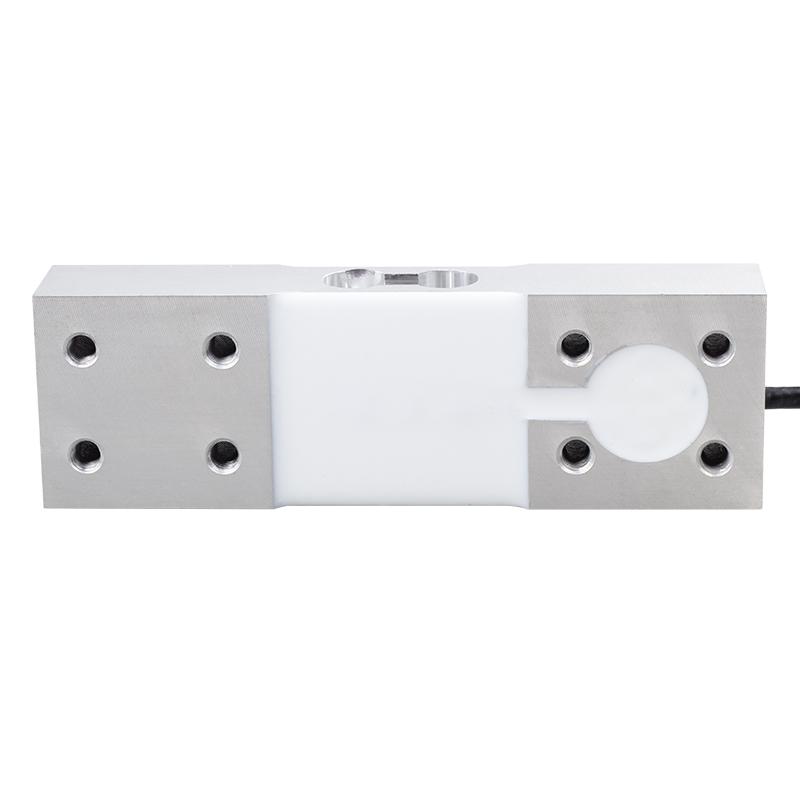

The LC1340AM is a single-point load cell by Labirinth, designed for electronic weighing scales. Made from high-strength aluminum alloy with IP65 protection, it delivers stable and accurate measurements in demanding environments. The sensor supports a 40–100 kg capacity range, ensuring reliable long-term performance.
LC1340AM Load Cell For Electronic Scales – Accurate Single Point Sensor
Short Description:
Payment: T/T, L/C, PayPal
Features:
- Capacities (kg): 40~100kg
- High comprehensive precision, high stability
- Compact structure, easy to install
- Small size with low profile
- Anodized Aluminum Alloy
- The four deviations has been adjusted
- Recommended Platform size: 350mm*350mm
Applications:
- small platform scales
- Packaging Scales,
- Industries of Foods, Pharmaceuticals, industrial processweighing and control.
Description:
LC1340 is a single point load cell with low section and small size, 40kg to 100kg, made of aluminum alloy, anodized surface, simple structure, easy to install, good bending and torsion resistance, four-corner deviation has been adjusted, the recommended table size is 350mm*350mm, the protection grade is IP66, and can be applied in various complex environments. It is mainly suitable for industrial weighing and production process weighing such as platform scales, packaging scales, food, and medicine.

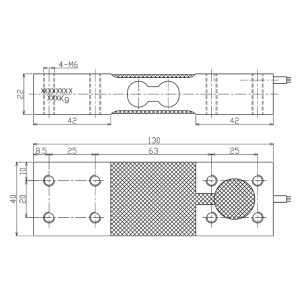

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 40,60,100 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep/30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 0.4 |
| Recommended Platform size | mm | 350*350 |
| Tightening Torque | N·m | 2 |

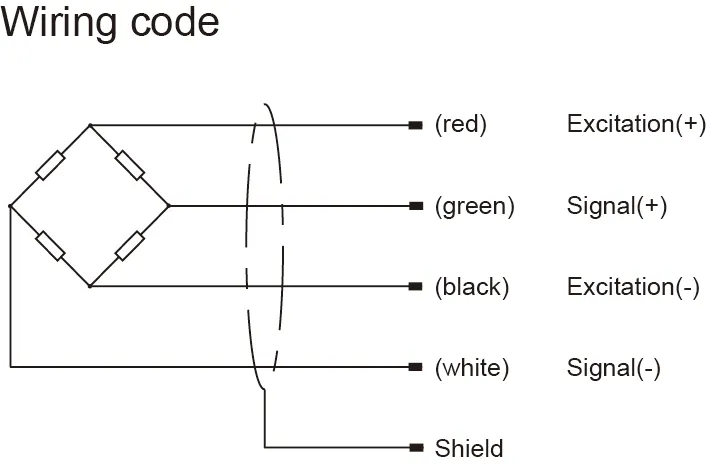

| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
