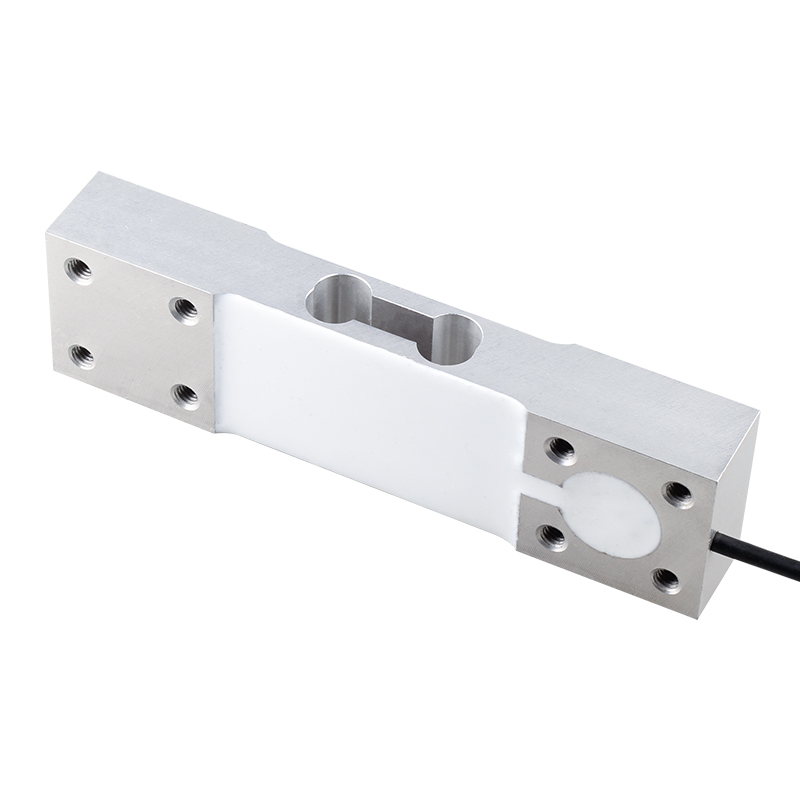

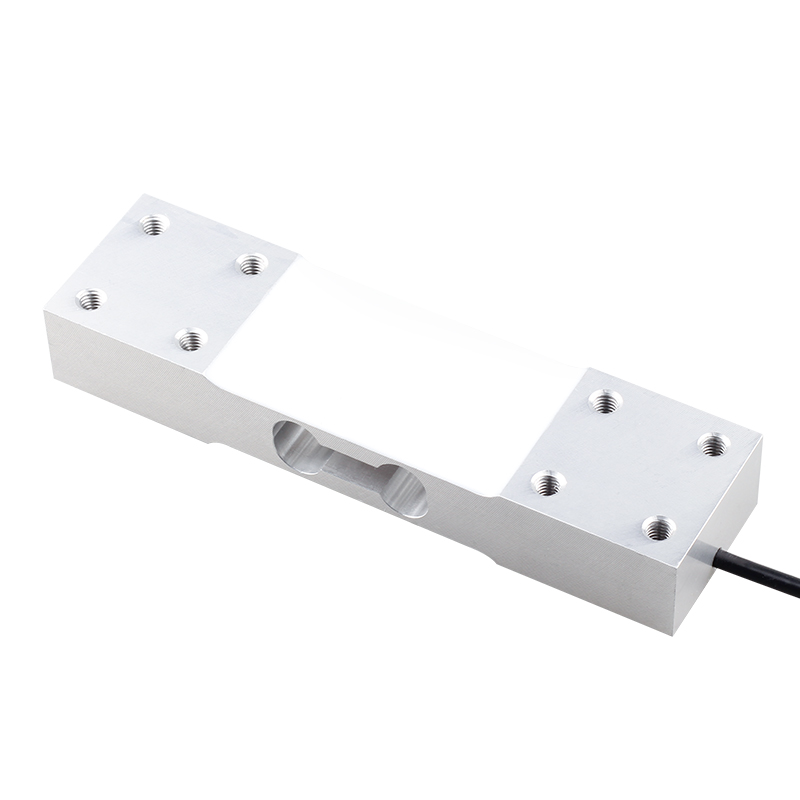

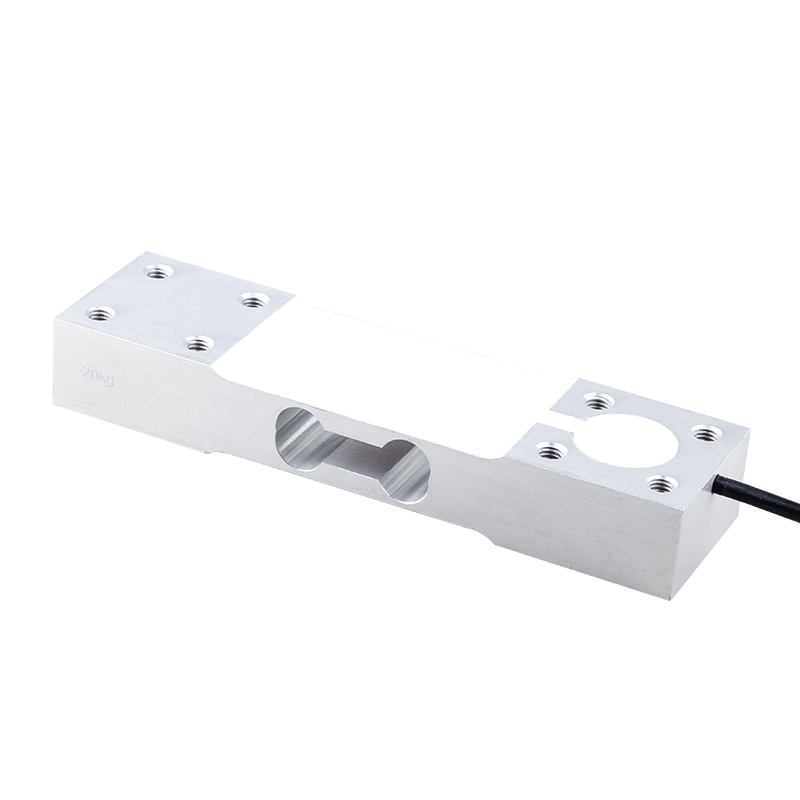

LC1540 Aluminum Alloy Single Point Load Cell for Medical Scale
Short Description:
The LC1540 is a single-point load cell made by Labirinth. They designed it for medical scales. Crafted from anodized aluminum alloy, it boasts exceptional durability and corrosion resistance. It also has IP65 protection against dust and water. The LC1540 can weigh between 10 kg and 15 kg. It offers reliable and accurate performance for medical and healthcare weighing systems.
Features:
- Capacities (kg):10to 50
- High comprehensive precision, high stability
- Compact structure, easy to install
- Small size with low profile
- Anodized Aluminum Alloy
- The four deviations has been adjusted
- Recommended Platform size: 500mm*350mm
Applications:
- platformScales
- Pricing scales,Counting scales
- Medical scales
- Packaging Scales
- batchingscales
- Industries of food , Pharmaceuticals, industrial processweighing and control
Description:
LC1540 load cell is a small range single point load cell, 10kg to 50kg, made of aluminum alloy, surface anodized, simple structure, easy to install, good bending and torsion resistance, protection level is IP66, can be applied in a variety of complex Environment. The deviation of the four corners has been adjusted, and the recommended table size is 500mm*350mm, which is mainly suitable for industrial weighing systems such as low range platform scales and medical scales.
Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 10, 20, 30, 50 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep/30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃on output | Temp. effect/10℃on zero | ±0.02 |
| Temp. effect/10℃on zero | Temp. effect/10℃on zero | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12/15(max) |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 0.48 |
| Recommended Platform size | mm | 350*350 |
| Tightening Torque | N·m | 10kg-30kg:7 N·m 50kg:10 N·m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
