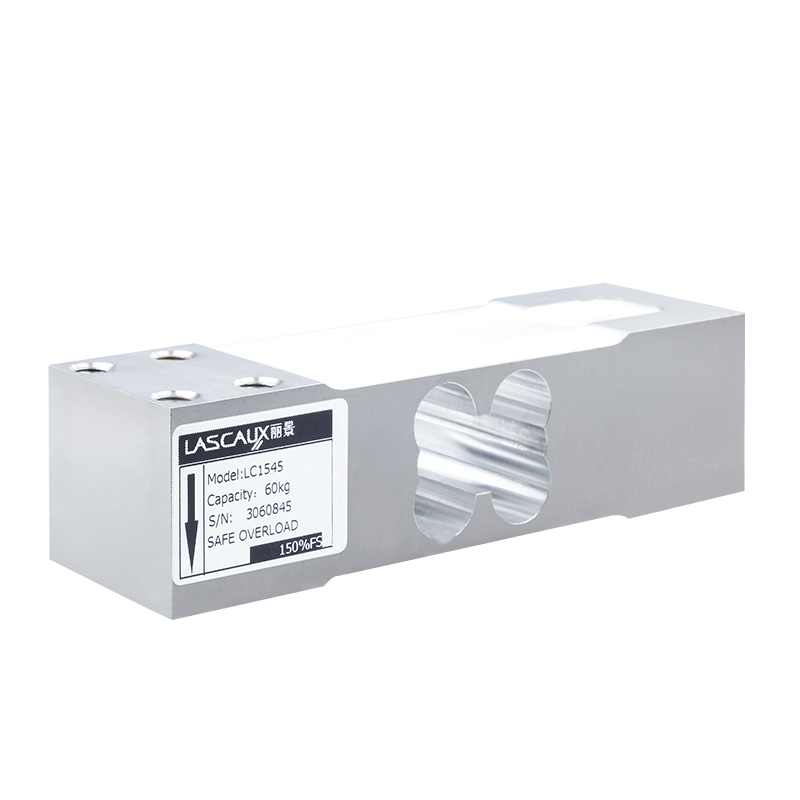

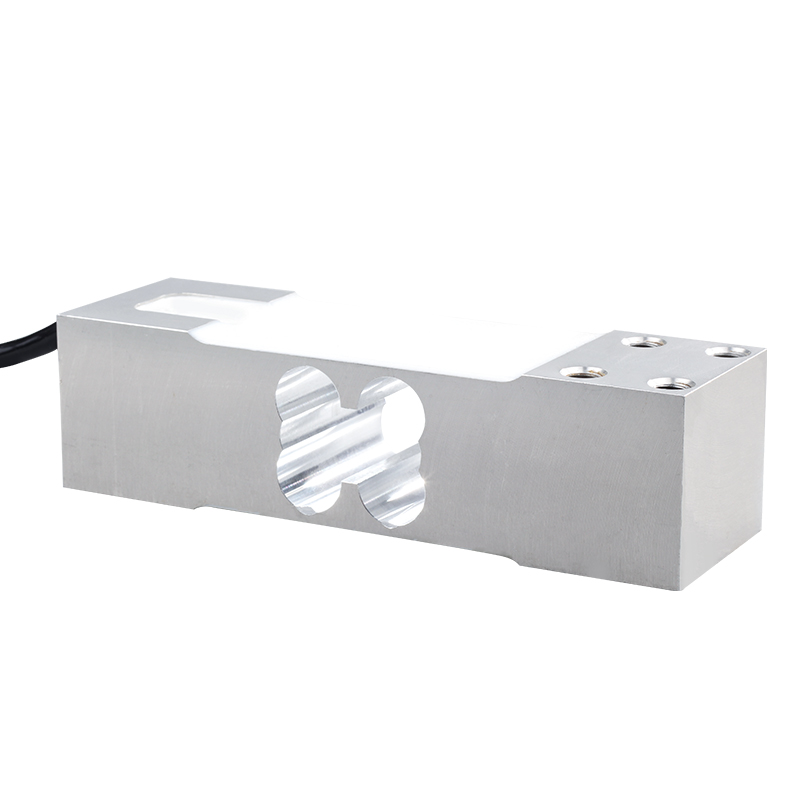

LC1545BS Single Point Load Cell for Small Hopper Scale
Short Description:
The LC1545 Single Point Load Cell for Packaging Scales is manufactured by Labirinth and designed for high-precision weighing applications. Made from durable aluminum alloy, it features IP65 protection for reliable operation in industrial environments. The weighing capacity ranges from 60 kg to 300 kg, delivering accurate and stable performance for packaging scale systems.
Features：
1. Capacities (kg): 60 to 300
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 400mm*500mm
Applications：
1. Smart Trash Bin
2. Platform scales, packing scales
3. Food, medicine and other industrial weighing and production process weighing
Description：
LC1545 load cell is a high precision medium range single point load cell, 60kg to 300kg, the material is made of high quality aluminum alloy, glue sealing process, an aluminum alloy analog sensor is provided, the deviation of the four corners has been adjusted to ensure the accuracy of the measurement, and the surface is anodized , the degree of protection is IP66, and can be applied in a variety of complex environments. It is suitable for industrial weighing and production process weighing such as electronic balance, counting scale, packaging scale, food, medicine, etc.

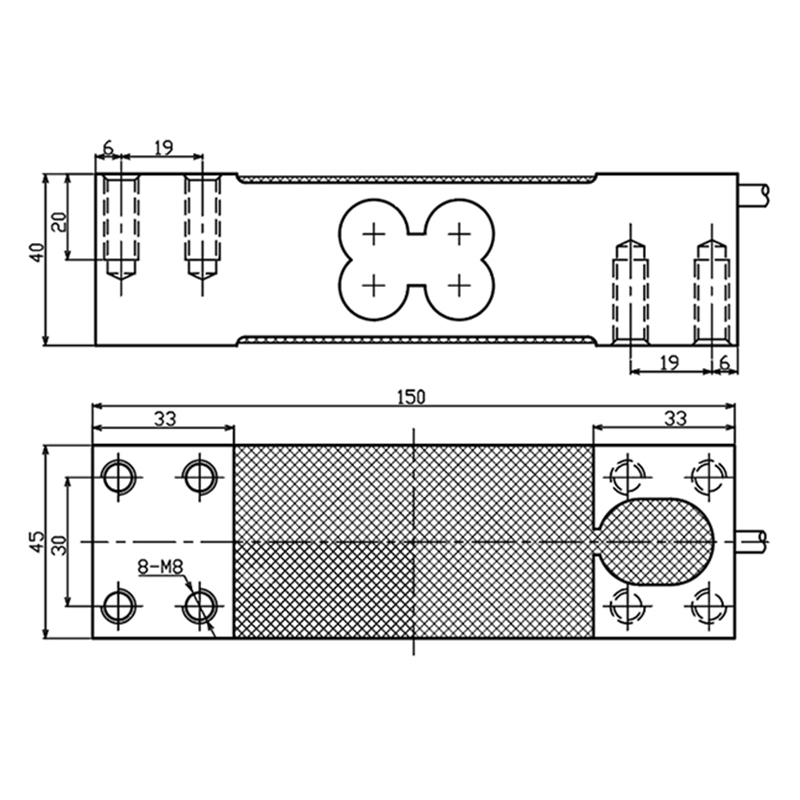

Dimensions：
Parameters:
| Specifications: | ||
| Rated Load | kg | 60,100,150,200,300 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±2 |
| Creep after 30 minutes | %R.O. | ±0.02 |
| Comprehensive Error | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 2 |
| Recommended Platform size | mm | 400*500 |
| Tightening Torque | N·m | 20 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
