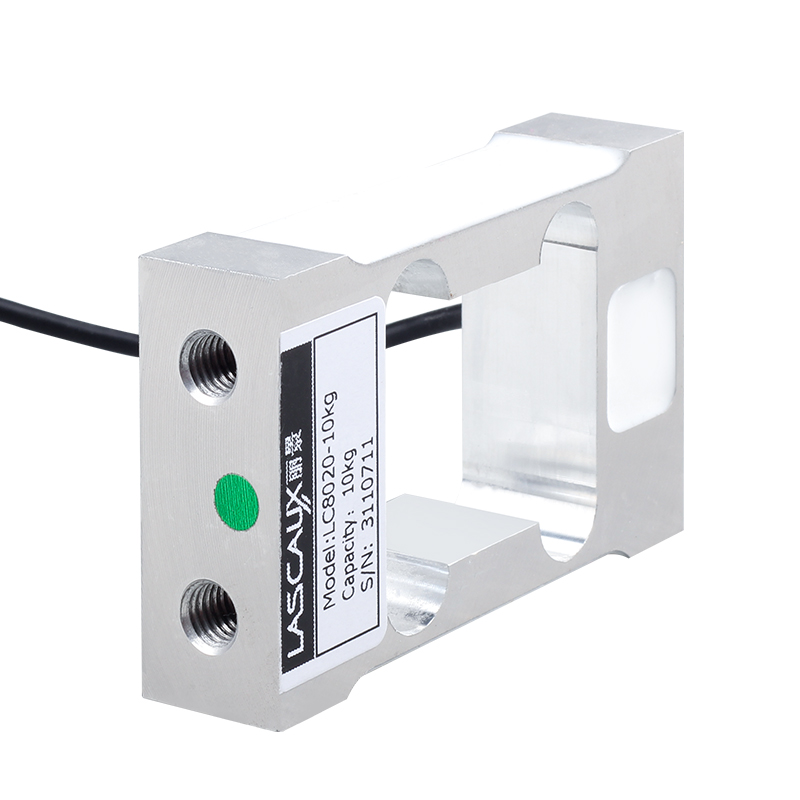

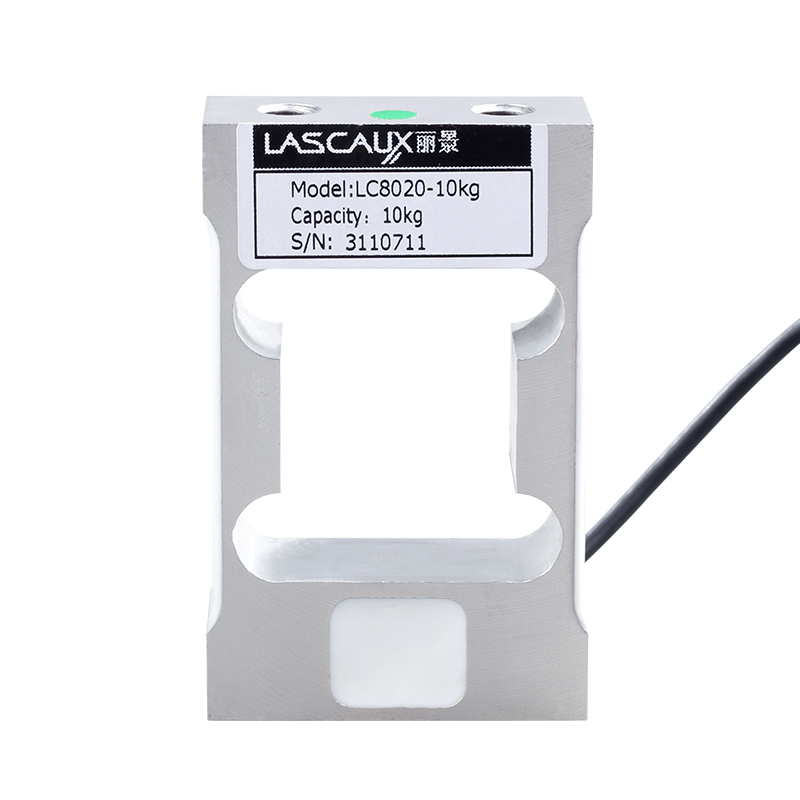

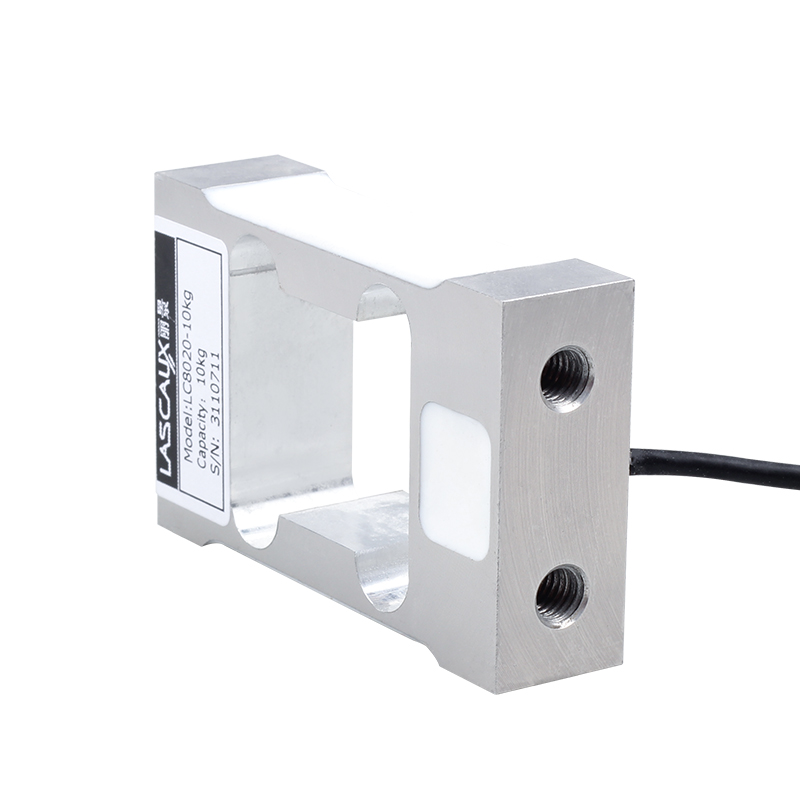

LC8020 Aluminum Single Point Load Cell – Retail/Electronic Scales
Short Description:
The LC8020 aluminum single-point load cell from Labirinth load cell manufacturer is designed for retail and electronic scales. Made of aluminum alloy with IP65 protection, it offers a weighing capacity from 5 kg to 20 kg.
Payment: T/T, L/C, PayPal
Features：
1. Capacities (kg): 5-20
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 200mm*200mm
Applications：
1. Electronic balances
2. Packaging Scales
3. Counting scales
4. Industries of food , medicine and other industrial weighing and production process weighing
Description：
The LC8020 load cell is designed for electronic scales and platform scales that require a single sensor. It is very suitable for mass production operations of customers. The measuring range is from 5kg to 20kg. High precision, surface anodized treatment, protection level is IP66, can be applied in a variety of complex environments. The recommended table size is 200mm*200mm, suitable for electronic balances, counting scales, packaging scales, food, medicine and other industrial weighing and production process weighing.

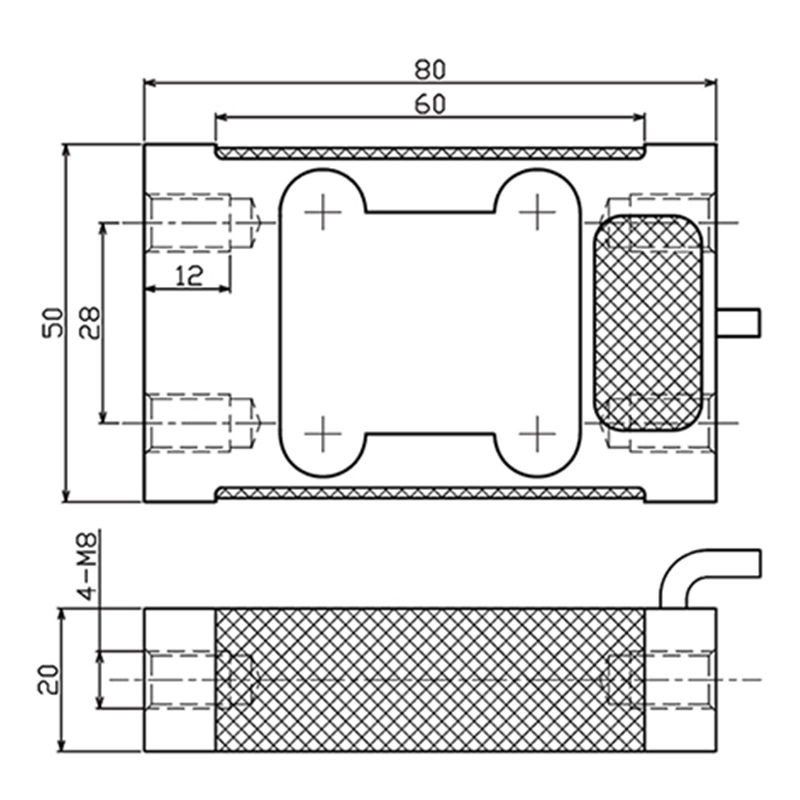

Dimensions：
Parameters：
| Specifications: | ||
| Rated Load | kg | 5,10,20 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.02 |
| Non-linearity | %R.O. | ±0.02 |
| Hysteresis | %R.O. | ±0.02 |
| Repeatability | %R.O. | ±0.02 |
| Creep/30 minutes | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 1 |
| Recommended Platform size | mm | 200*200 |
| Tightening Torque | N·m | 10 |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
