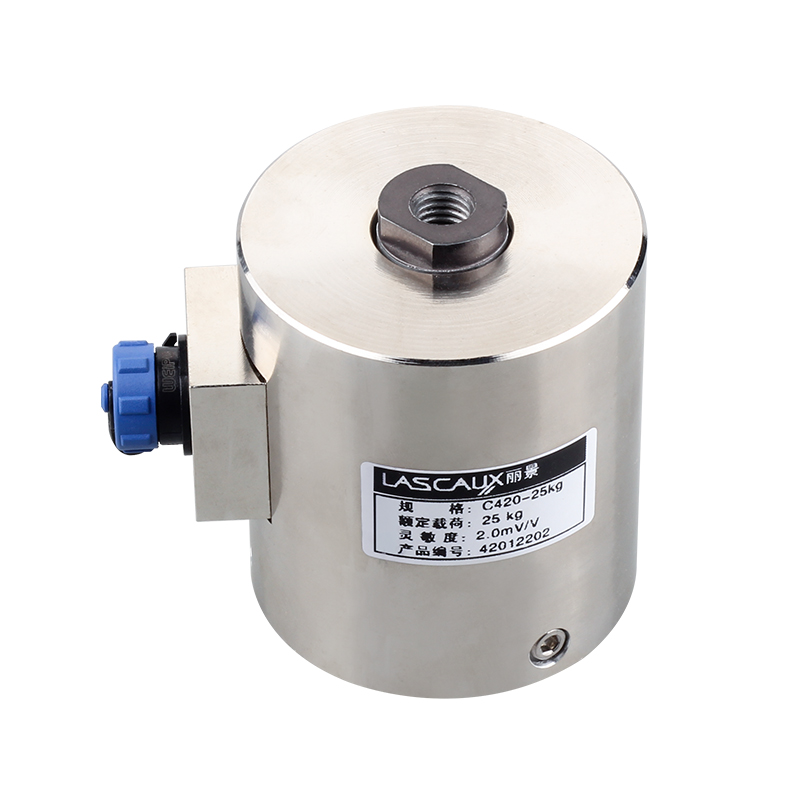

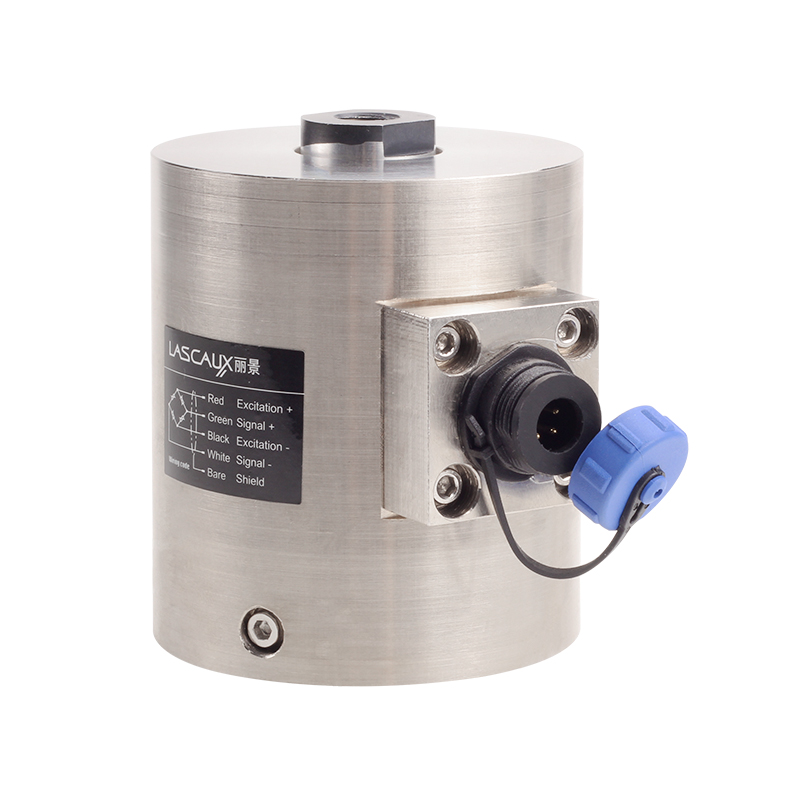

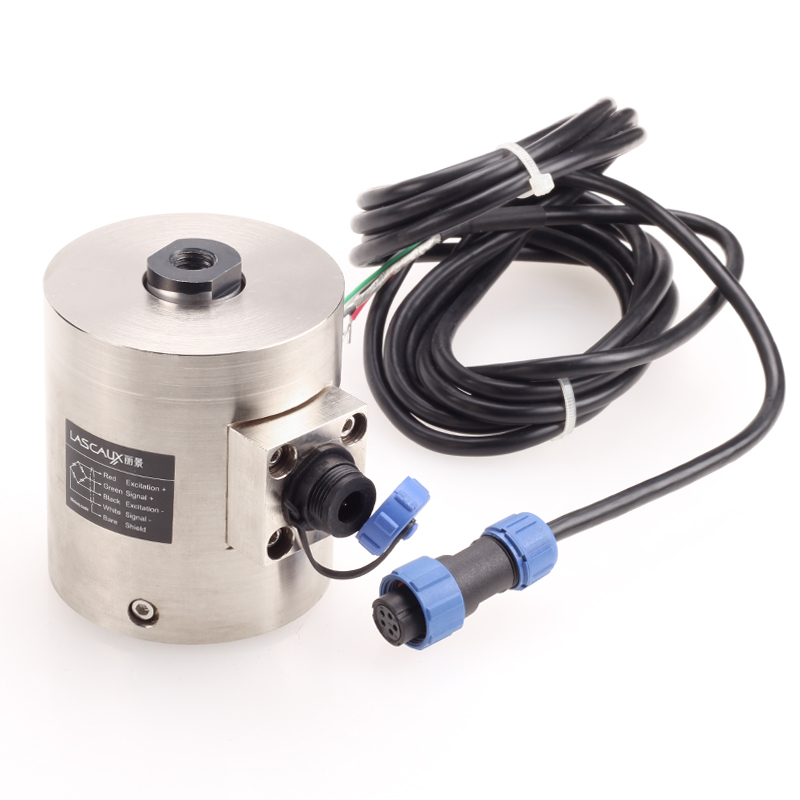

LCC420 Column Force Sensor for Force Control and Measurement
Short Description:
Designed for precise force control and measurement, this low-profile sensor supports both compression and tension applications. Constructed from nickel-plated alloy steel with IP65 protection, it offers capacities from 5 kg to 5000 kg for reliable industrial use.
Payment: T/T, L/C, PayPal
Features:
- Capacities (kg): 5 to 5000
- Compact structure, easy to install
- Compression and Tension are available
- Alloy steel or Aluminum material
- Degree of protection reaches to IP65
- For Static and Dynamic Applications
- Resistance strain measurement methods
- High quality alloy steel with nickel plating
Applications:
- Force control and measurement
Description:
The C420 load cell is a dual-purpose sensor for tension and compression, with a wide range, from 5kg to5t. The material is made of alloy steel, the surface is nickel-plated, and the protection level is IP65. It has a compact structure and is easy to install. It is suitable for force control and measurement.
Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 5,10,20,50,100,200,500 |
| t | 1,2,5 | |
| Rated Output | mV/V | 2 |
| Zero Output | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.03 |
| Comprehensive Error | %R.O. | ±0.05 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.03 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.03 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum / Alloy Steel | |
| Degree of protection | IP65 | |
