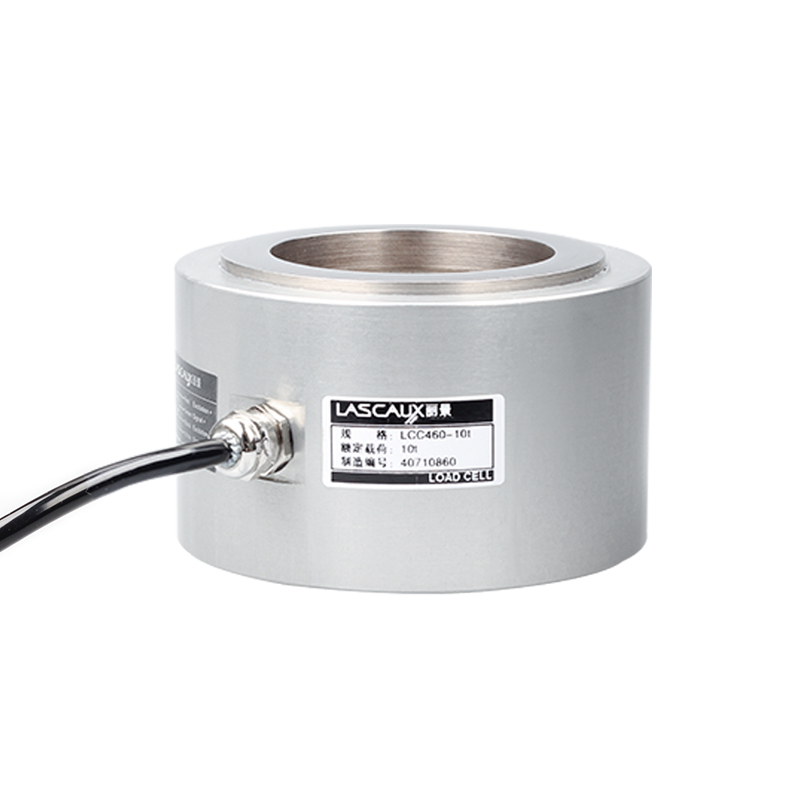

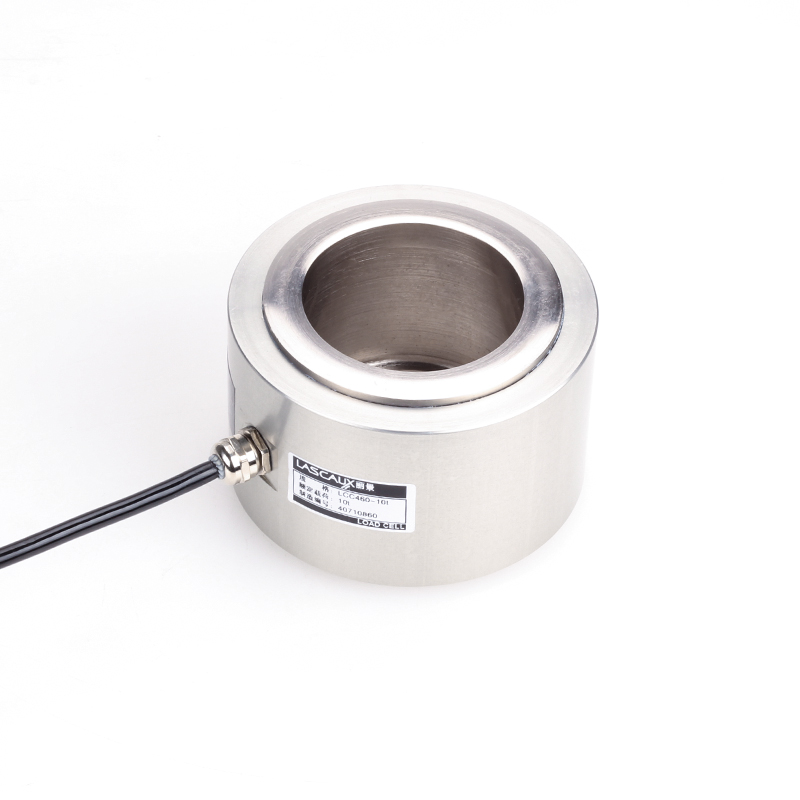

LCC460 Column Type Canister Annular Load Cell
Short Description:
Through Hole Load Cell from Labirinth load cell manufacturers,LCC460 Column Type Canister Annular Load Cell is made of alloy steel, which is IP66 protection. The weighing capacity is from 5 ton to 300 ton.
Payment: T/T, L/C, PayPal
Features:
- Capacities (t): 5 to 300
- Compact structure, easy to install
- High quality alloy steel with nickel plating
- Full welding sealing Structure
- High comprehensive precision, high stability
- Degree of protection can reach to IP66
- Stainless Steel is available
- Can be custom-made
Applications:
- Force control and measurement
Description:
LCC460 load cell is a washer type force sensor, pressure sensor, cylinder structure, range from 5t to 300t, can also be customized according to customer needs, the material is made of alloy steel, the surface is nickel plated, the comprehensive accuracy is high, and the long-term stability is good , Compact structure, easy to install, suitable for force control and measurement.
Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | t | 5,10,20,50,100,200,300 |
| Rated Output | mV/V | 1.2-1.5 |
| Zero Balance | %R.O. | ±2 |
| Comprehensive Error | %F.S. | ±1 |
| Creep/30 minutes | %F.S. | ±0.1 |
| Repeatability | %R.O. | ±0.3 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %F.S./10 ℃ | ±0.05 |
| Temp. effect/10℃ on zero | %F.S./10 ℃ | ±0.05 |
| Recommended Excitation Voltage | VDC | 5-12/15(max) |
| Input impedance | Ω | 380±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel | |
| Degree of protection | IP66 | |
| The length of the cable | m | 10m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
