LCC460 Column Type Load Cell for Force Control
Short Description:
A through-hole canister load cell made of strong alloy steel. It features IP66 protection and engineers designed it for stable, accurate force control. Engineers designed this load cell for heavy-duty use. It can handle weights from 5 tons to 300 tons.
Payment: T/T, L/C, PayPal
Features：
1. Capacities (t): 5 to 300
2. Compact structure, easy to install
3. High quality alloy steel with nickel plating
4. Full welding sealing Structure
5. High comprehensive precision, high stability
6. Degree of protection can reach to IP66
7. Stainless Steel is available
8. Can be custom-made
Applications：
1. Force control and measurement
Product Description：
LCC460 load cell is a washer type force sensor, pressure sensor, cylinder structure, range from 5t to 300t, can also be customized according to customer needs, the material is made of alloy steel, the surface is nickel plated, the comprehensive accuracy is high, and the long-term stability is good, Compact structure, easy to install, suitable for force control and measurement.

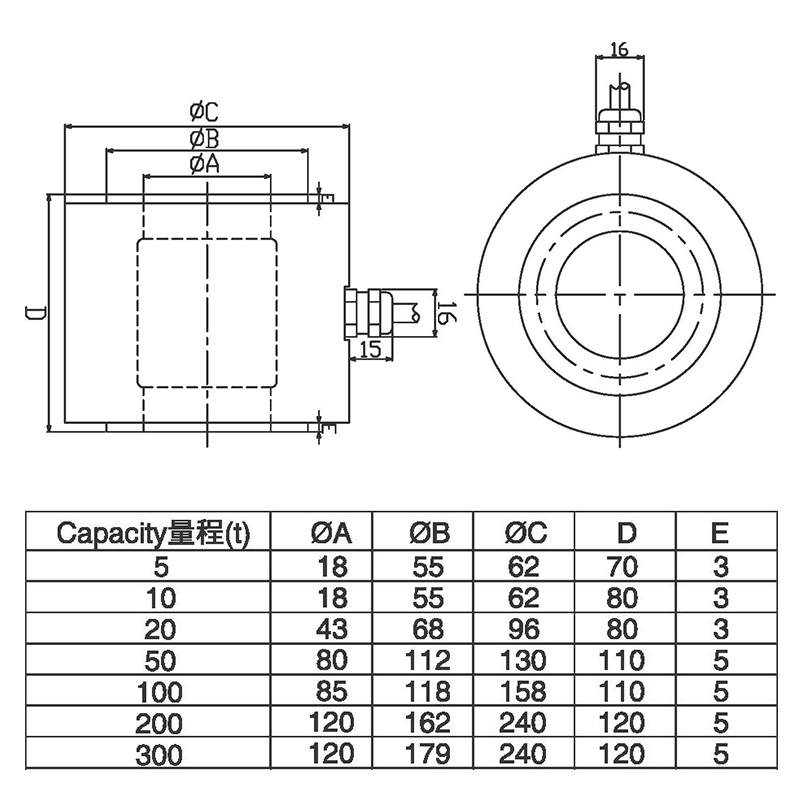

Dimensions：
Parameters:
| Specification | ||
| Rated Load | 100,200,500 | kg |
| 1,2,5,10,20,30,50,100,200 | t | |
| Rated Output | 2.0±0.2 | mV/V |
| Zero Balance | ±1 | %R.O. |
| Comprehensive Error | ±0.02 | %R.O. |
| Creep after 30 minutes | ±0.05 | %R.O. |
| Compensated Temperature Range | -10~+40 | ℃ |
| Operating Temperature Range | -20~+70 | ℃ |
| Temp of effect/10℃ on output | ±0.02 | %R.O./10℃ |
| Temp of effect/10℃ on zero | ±0.02 | %R.O./10℃ |
| Recommended Excitation Voltage | 5-12 | VDC |
| Input impedance | 770±10 | Ω |
| Output impedance | 700±5 | Ω |
| Insulation resistance | =5000(50VDC) | MΩ |
| Safe Overload | 150 | %R.C. |
| UItimate Overload | 300 | %R.C. |
| Matenial | Alloy Steel/Stainless Steel | |
| Degree of protection | IP67/IP68 | |
