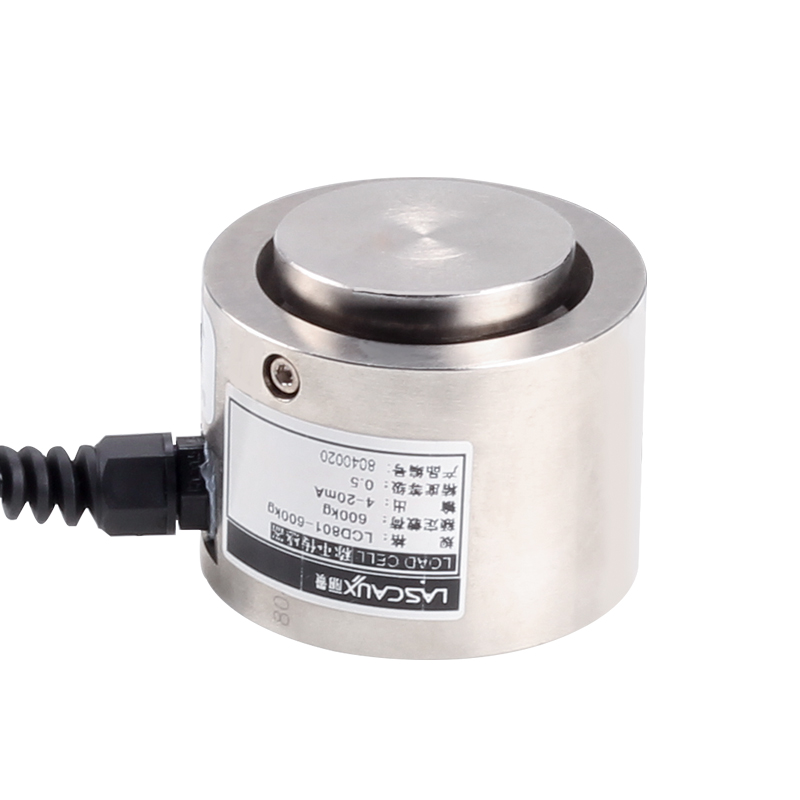

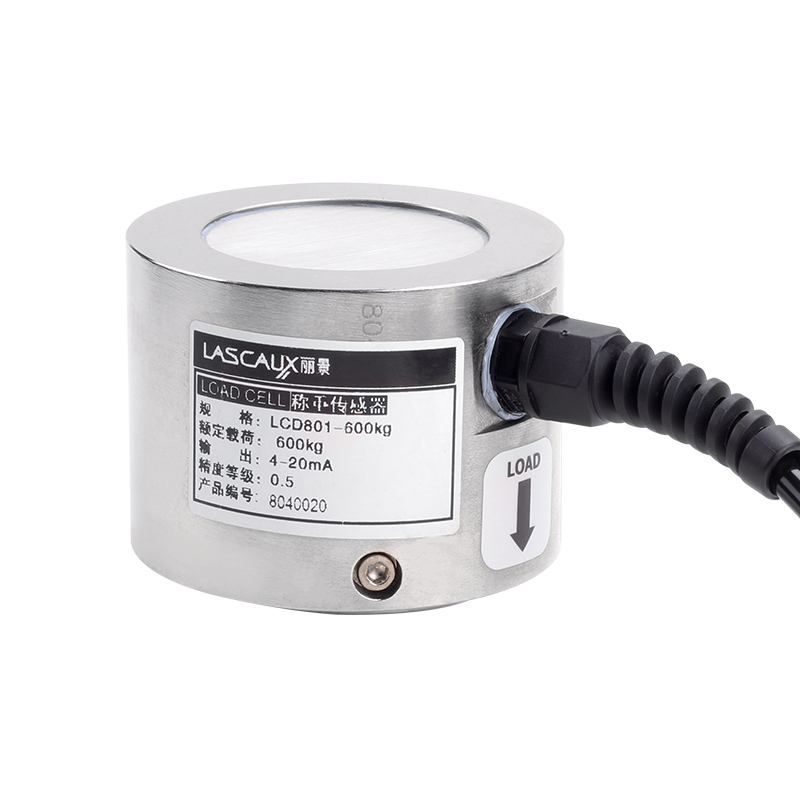

LCD801 mini button type force sensors load cell

The LCD801 low-profile disk load cell from Labirinth load cell manufacturers is a mini button-type force sensor made of alloy steel with IP67/IP68 protection. It offers a weighing capacity ranging from 100 kg to 5,000 kg.

Features:

1.  Capacities (kg): 100 to 5000
2.  Compact structure, easy to install
3.  Compression load cell
4.  Low profile, spherical designing
5.  High quality alloy steel with nickel plating
6.  Degree of protection can reach to IP68
7.  Analog output 4-20mA is optional

Applications:

1. Weighing level meter
2. Suitable for force measurement and control of material level

Description:

LCD801 is a low profile circular plate load cell, 0.1t to 5t, made of alloy steel, nickel-plated on the surface, the analog output is optional in millivolts or 4-20mA, and the built-in circuit board will digitalize the chip with built-in sensor flexibility Among the components, the cost of the transmitter is saved, and calibration-free is realized, thereby solving the problem of difficult calibration on site, and is suitable for force measurement and control of material level.

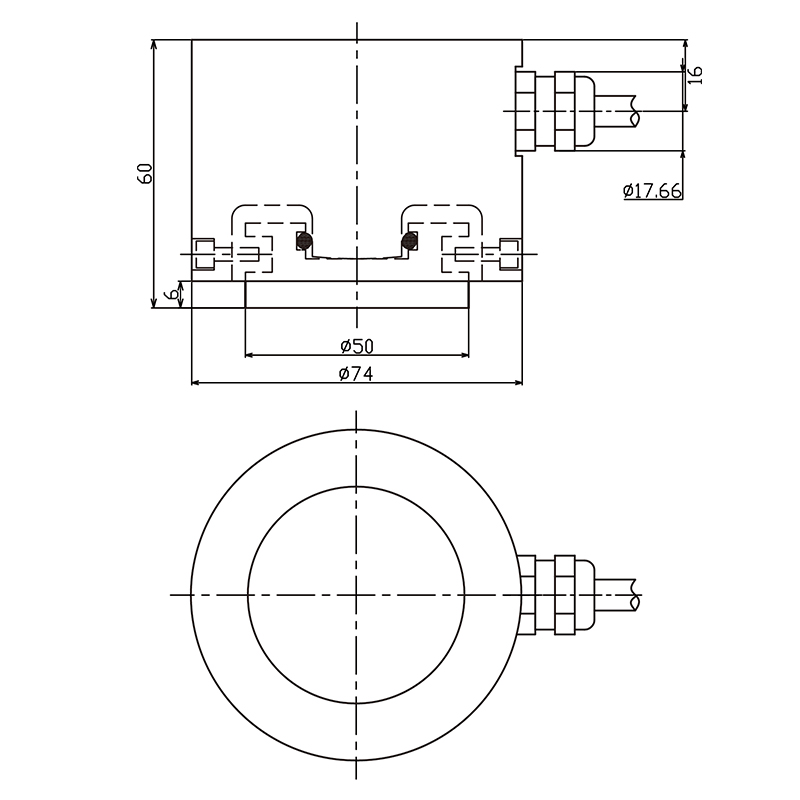

Dimensions:

Parameters：
