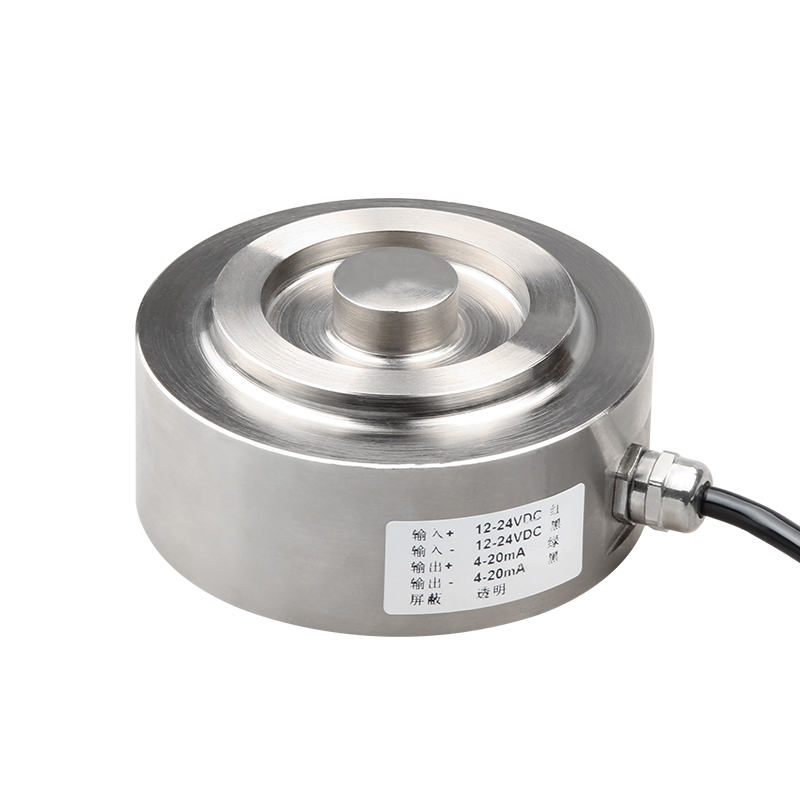

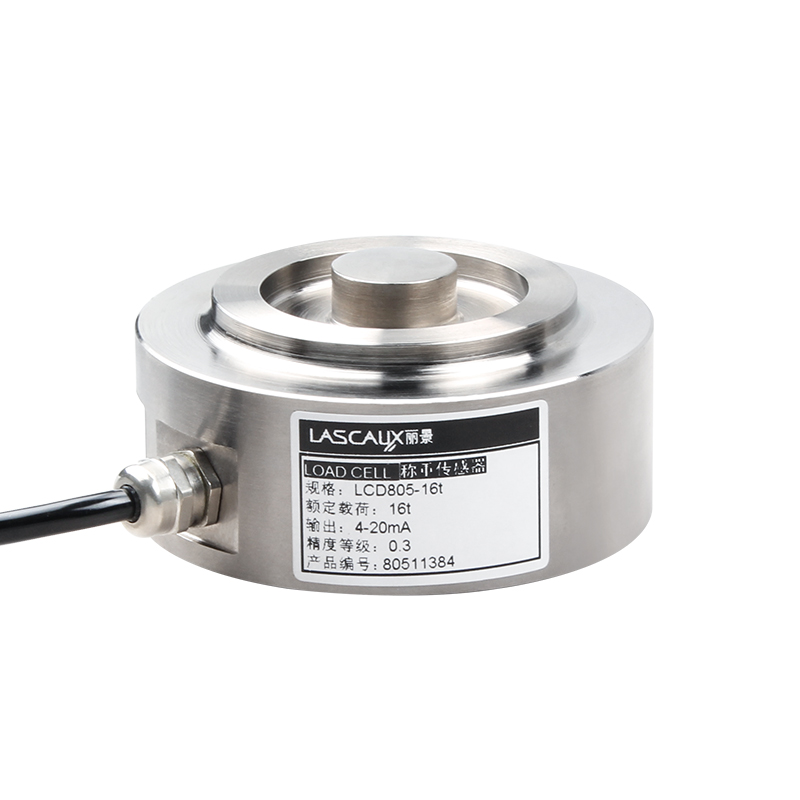

LCD805 Inline Low-Profile Beam Load Cell

Labirinth manufactures the LCD805 low-profile beam load cell from alloy steel. It also has IP68 protection. It supports a weighing capacity ranging from 1 ton to 16 tons.

Features:

1. Capacities (t): 1 to 16
2. Compact structure, easy to install
3. Compression load cell
4. Low profile, spherical designing
5. High quality alloy steel with nickel plating
6. Degree of protection can reach to IP68
7. Analog output 4-20mA is optional
8. The height is very low, the height is less than 48mm

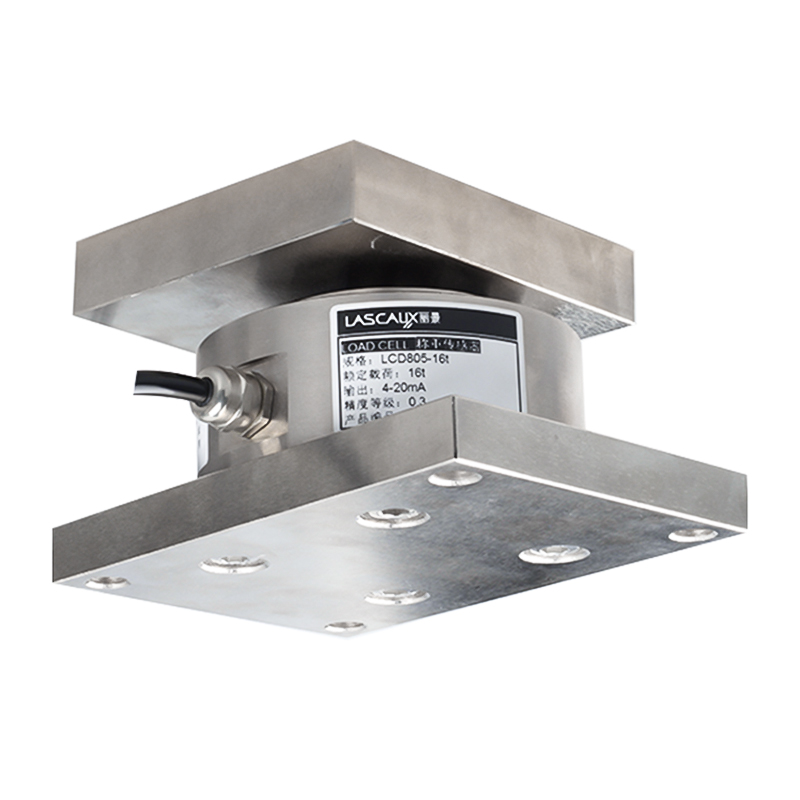

9. Be matched with top plate and bottom plate

Applications:

1. Weighing level meter
2. Level control of liquid and bulk materials

Description:

LCD805 is a low profile circular plate load cell, 1t to 16t, made of alloy steel, nickel-plated on the surface, the analog output is optional in millivolts or 4-20mA, and the built-in circuit board integrates the digital chip into the sensor elastic element Among them, the cost of the transmitter is saved, and calibration-free is realized, thereby solving the problem of difficult on-site calibration, and is suitable for force measurement and control of material level.

Dimensions:

Parameters：
