LCD820 Low Profile Disk Load Cell Force Transducer For Weighing Systems
Short Description:
Through Hole Load Cell from Labirinth load cell manufacturers,LCD820 Low Profile Disk Load Cell Force Transducer For Weighing System is made of alloy steel, which is IP66 protection. The weighing capacity is from 1 ton to 50 ton.
Payment: T/T, L/C, PayPal
Features:
- Capacities (t): 1 to 50
- Compact structure, easy to install
- Compression load cell
- Low profile, spherical designing
- Alloy steel or Stainless Steel material
- Degree of Protection reaches to IP66
- For Static and Dynamic Applications
- Strain Gauge type transducers
Applications:
- Force control and measurement
Description:

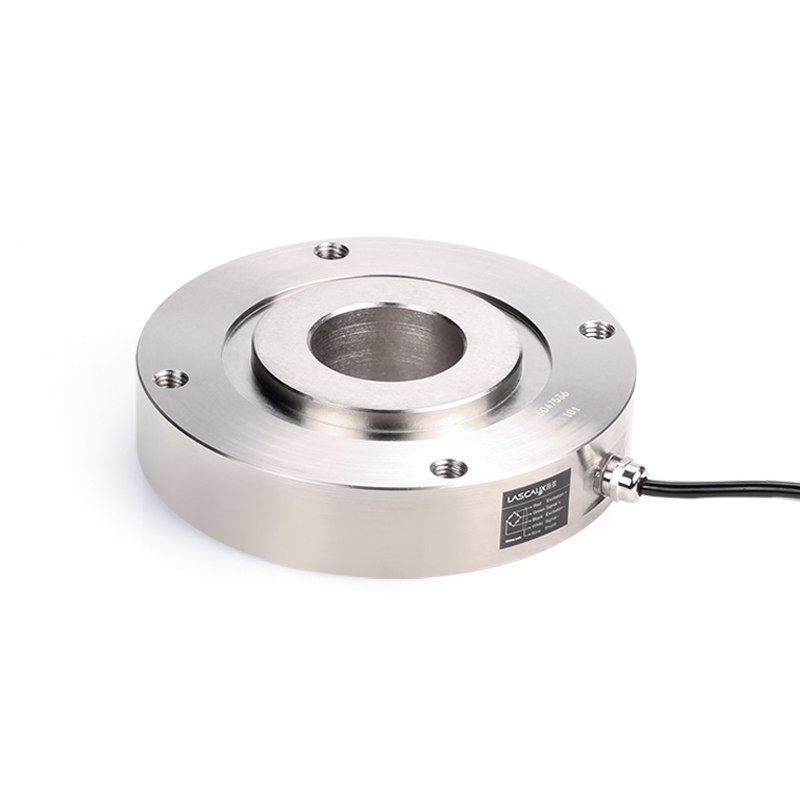

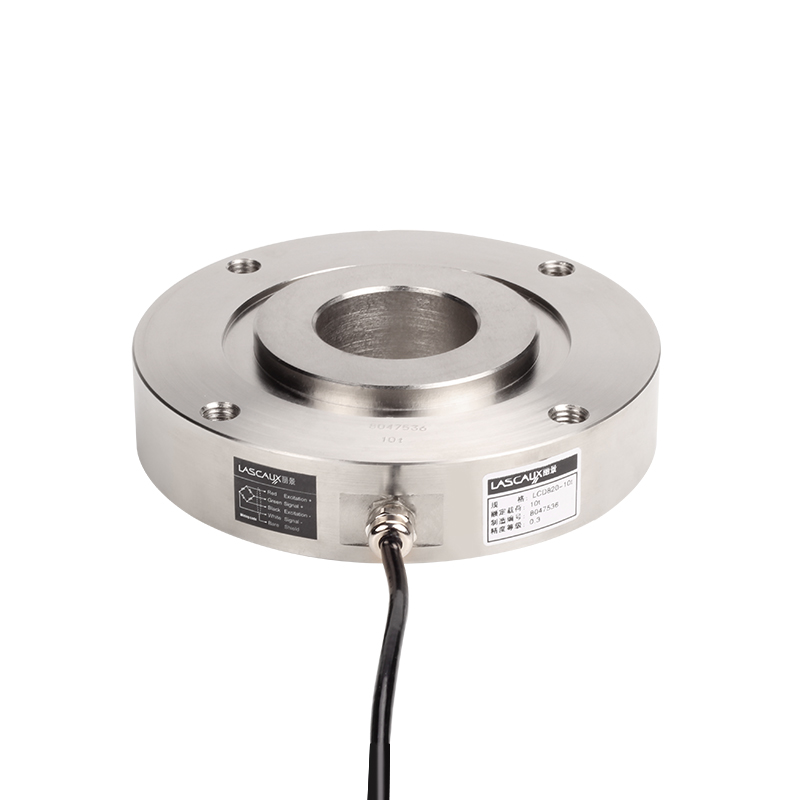

LCD820 is a circular plate weighing load cell with compact structure, low installation height, high protection level and wide measuring range, from 1t to 50t. It is made of high-quality alloy steel and nickel-plated on the surface. The sensor is suitable for force control and measurement, and this sensor also supports non-standard customization.

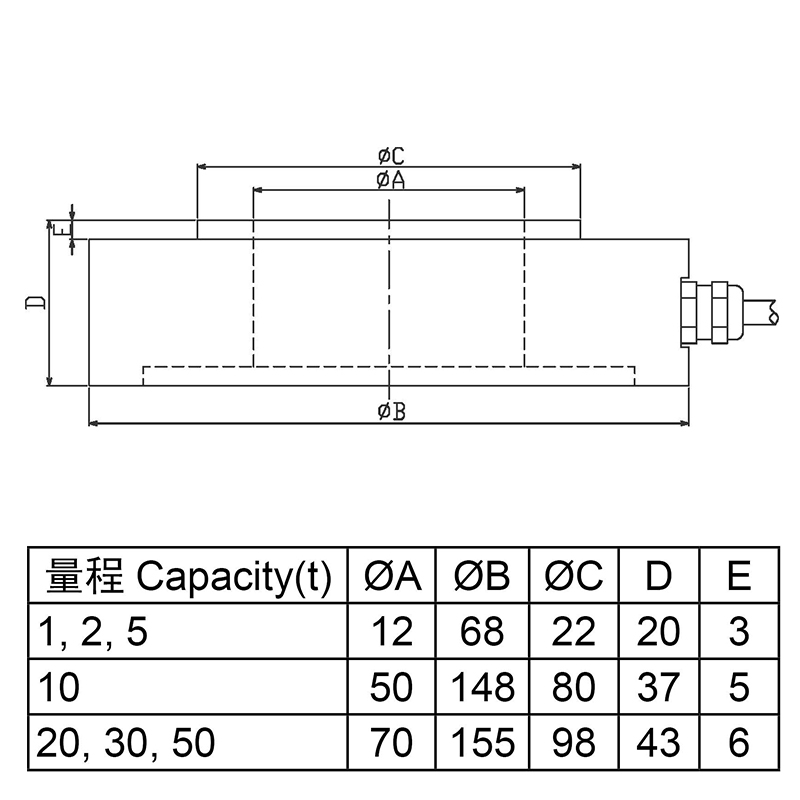

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | t | 1,2,5,10,20,50 |
| Rated Output | mV/V | 1.2-1.5 |
| Zero Balance | %R.O. | ±1 |
| Comprehensive Error | %R.O. | ±0.5 |
| Non-linearity | %R.O. | ±0.3 |
| Hysteresis | %R.O. | ±0.1 |
| Repeatability | %R.O. | ±0.3 |
| Creep/30 minutes | %R.O. | ±0.1 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Maximum Excitation Voltage | VDC | 15 |
| Input impedance | Ω | 770±10 |
| Output impedance | Ω | 700±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Material | Alloy Steel | |
| Degree of protection | IP66 | |
| The length of the cable | m | 5m |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
| Shield: | Bare | |
