Short Description:

The LCD832 micro tension force sensor measures and controls force with precision. This product, made of stainless steel, has an IP65/IP67 rating. It delivers strong performance in tough industrial settings without fail. It can measure from 5 kg to 5000 kg. This is great for devices that measure force, testing machines, and force control tasks.

Payment: T/T, L/C, PayPal

Features:

  1. Capacities (kg): 5 to 5000
  2. Compact structure, easy to install
  3. Compression and tension load cell
  4. Small size with Low profile
  5. Aluminum and Stainless steel material
  6. Static and Dynamic Applications
  7. Applications:
  8. force measuring device, testing machine, force measuring machine
  9. For force measurement and control

Description:

LCD832 is a dual-purpose disc load cell for tension and compression, with a wide range of capacity, from 5kg to 5t, compact structure, low profile, aluminum alloy for small capacity, light weight and easy operation, stainless steel for more than 50kg, corrosion resistance Strong, can be used in humid and corrosive environments, screw-type design, easy and quick installation and disassembly, suitable for force measuring devices, testing machines, force measuring machines and other equipment, pulling direction measurement.

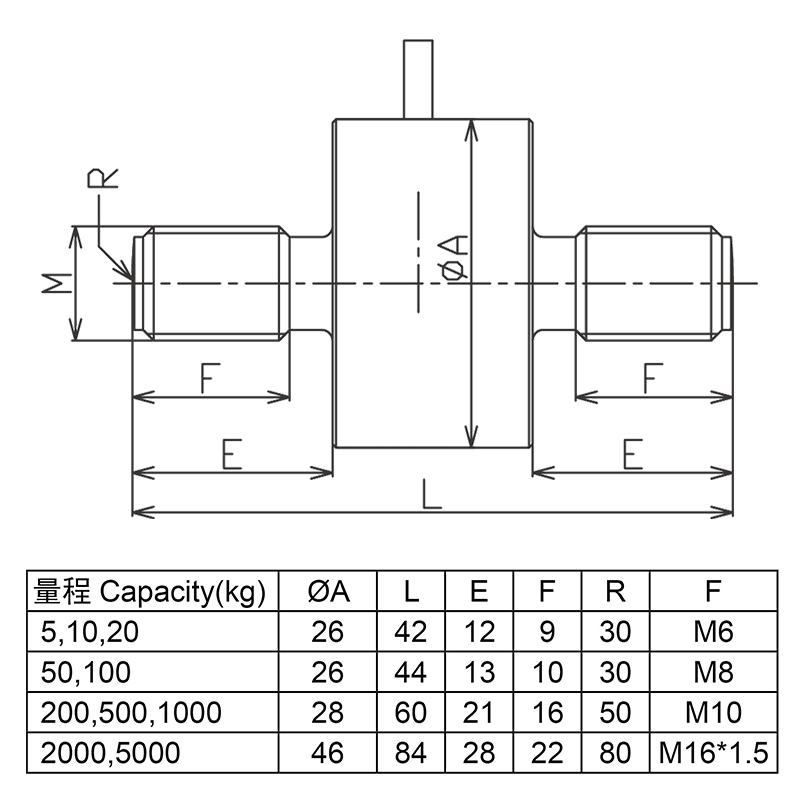

Dimensions:

LCD832 Micro Tension Force Sensor for Force Measurement and Control

Parameters:

Specifications:
Rated Load kg 5,10,20,50,100,200,500
t 1,2,5
Rated Output mV/V 1
Zero Balance %R.O. ±1
Creep after 30 minutes %R.O. ±0.1
Comprehensive Error %R.O. ±0.3
Compensated Temp.Range ℃ -10~+40
Operating Temp.Range ℃ -20~+70
Temp.effect/10℃ on output %R.O./10℃ ±0.1
Temp.effect/10℃ on zero %R.O./10℃ ±0.1
Recommended Excitation Voltage VDC 5-12
Input impedance Ω 350±5
Input impedance Ω 350±3
Insulation resistance MΩ =5000(50VDC)
Safe Overload %R.C. 150
Ultimate Overload %R.C. 300
Material Alloy Steel(5-20kg)/Stainless Steel(50-5000kg)
Degree of protection IP65/IP67
