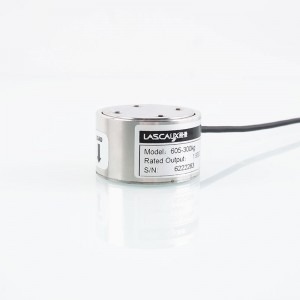

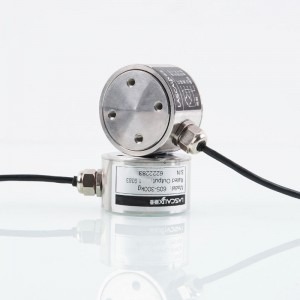

LCF605 Load Cell 100kg Pancake 500kg Spoke 1000kg Weighing Sensor
Short Description:
The LCF605 Load Cell series from Labirinth includes top-notch Pancake and Spoke type load cells. These sensors come in two versions: 100kg Pancake and 500kg Spoke. They can handle weights between 10 and 1000 tons. Manufacturers make them from durable aluminum alloy, and they have IP65 protection. This means they perform their functions with consistent accuracy for industrial weighing tasks.
Introduction：
Maximum capacity (Emax) , Rated Load(kg):
10, 20, 30，50, 100, 200, 500，1000
Be suitable for a wide range of applications including testing
or weighing systems.
Application：
Weighing sensors are widely used and are suitable for force measurement and control, testing machines and other force measuring devices. They can be applied to weighing tanks, hoppers, and silos according to actual needs.

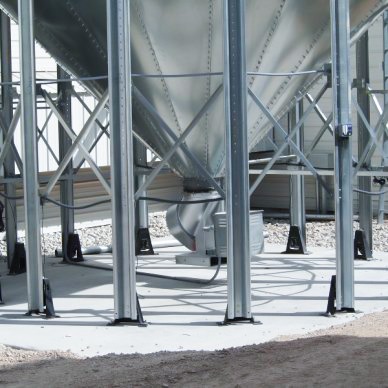

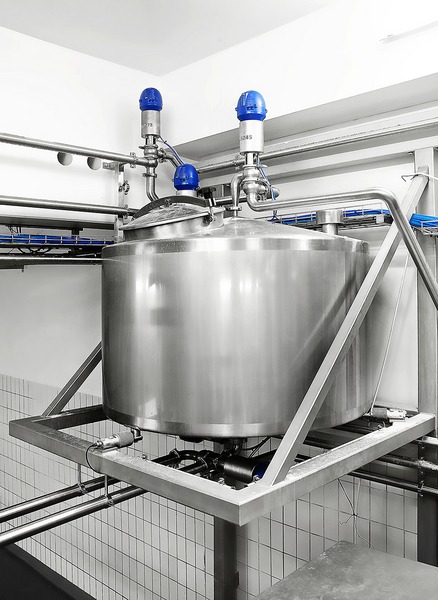

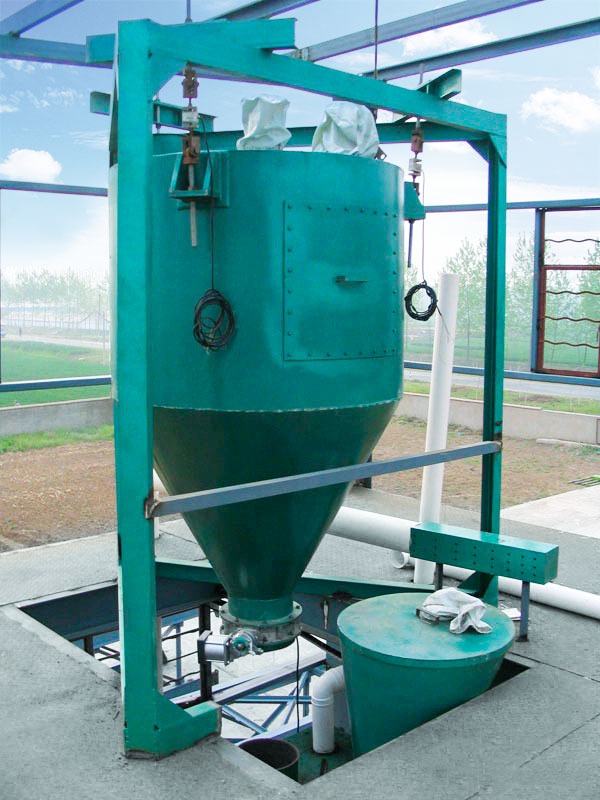

The following are actual applications reported by our customers.

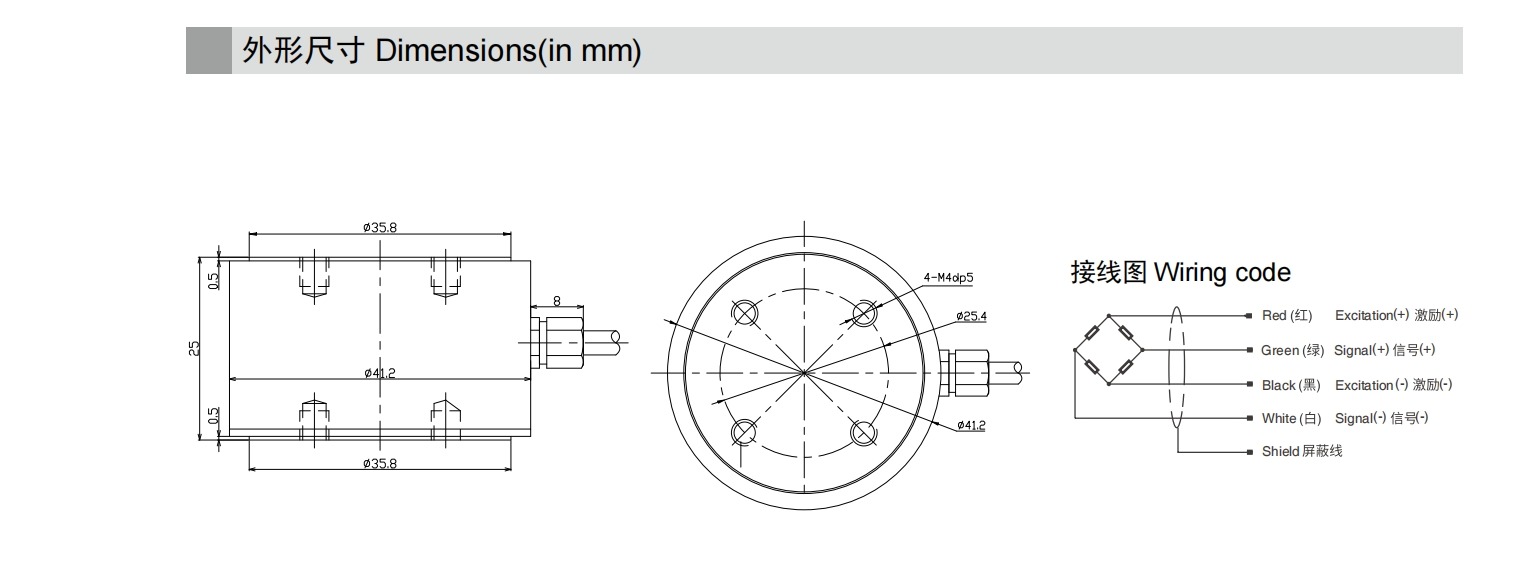

Dimensions：
Dimensions：
| Rated Load | 10,20,30,50,100,200,500,1000 | kg |
| Rated Output | 2.0±10% | mV/V |
| Zero Out put | ±2 | %R.O. |
| Comprehensive Error | 0.3 | %R.O. |
| Repeatability | 0.3 | %R.O. |
| Creep after 30 minutes | 0.5 | %R.O. |
| Recommended excitation voltage | 10 | VDC |
| Input impedance | 350±5 | Ω |
| Output impedance | 350±3 | Ω |
| Insulation resistance | ≥3000 (50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| Ultimate overload | 200 | %R.C. |
| Material | Stainless Steel | |
| The length ofthe cable | 2 | m |
| Degree of protection | P65 | |
| Wiring code | Ex: | Red:+ Black:- |
| Sig: | Green:+White:- |
