LRH Food and Drug Industry High Precision Checkweigher
Short Description:
High Speed Dynamic Checkweigher
Product model: LRH
Weighing range (g): 600, 1000, 1500, 3000, 6000, 15000
Payment: T/T, L/C, PayPal
Features：
10″ TFT touch screen color display
The whole machine is made of 304 stainless steel
Protection class: IP54
100% inspection, more secure than random inspection
The conveyor belt is food-grade PU conveyor belt, which can be in direct contact with food
Weigh up to 120 products per minute (depending on weight and size)
Fully automatic inspection to avoid wrong rejection and rework caused by human error
Quick and easy cleaning with specially developed body and belt quick change system
Optional accessories：
Windshield
Rejector
USB connection
Print function
Warning light, buzzer
Bandwidth/band length can be adjusted according to customer requirements
Description：
The modular design makes the LRH dynamic checkweigher suitable for testing products in automated production lines and packaging lines, such as: net weight detection, damage detection, missing packaging detection, missing parts detection, etc. It is especially suitable for the production line to detect whether the product has few grains or many grains; whether the powder bag product is missing or has multiple bags; whether the weight of the canned product meets the standard requirements; the detection of missing accessories (such as instructions, desiccant, etc.). Widely used in food, medicine, daily chemical, industrial manufacturing, printing, logistics and other industries.
Specifications：
| Specification | Weighing range | Calibration value | Maximum speed | Teleport height | Bandwidth (Bw) | Belt length (BL) |
| LRH600 | 600g | 0.2g | 100m/min | 750-1150mm | 100mm | 200-750mm |
| LRH1500 | 1000/1500g | 0.2g/1g | 80m/min | 100-230mm | 150-750mm | |
| LRH3000 | 3000g | 0.5g/1g | 80m/min | 150-300mm | 200-750mm | |
| LRH6000 | 6000g | 1/2g | 80m/min | 230-400mm | 330-750mm | |
| LRH15000 | 15000g | 2/5g | 45m/min | 230-400mm | 330-750mm |
| Transmission direction | Left to Right / Right to Left |
| Standard display | 10″ color touch screen |
| Rejection system | Push rod type/blowing type/flap type |
| Interface | RS232, RS485, Industrial Ethernet, USB, support multiple bus protocols |
| Options | External printers, third-party data transparent transmission devices, etc. |
| Degree of protection | IP54 (whole machine) IP65 (load cell) |
| Material | 304 stainless steel |
| Voltage | 100-240V 50-60HZ 500-750VA |
| Operating temperature | 0°C to 40°C |
| Humidity | 20-90%, non-condensing |

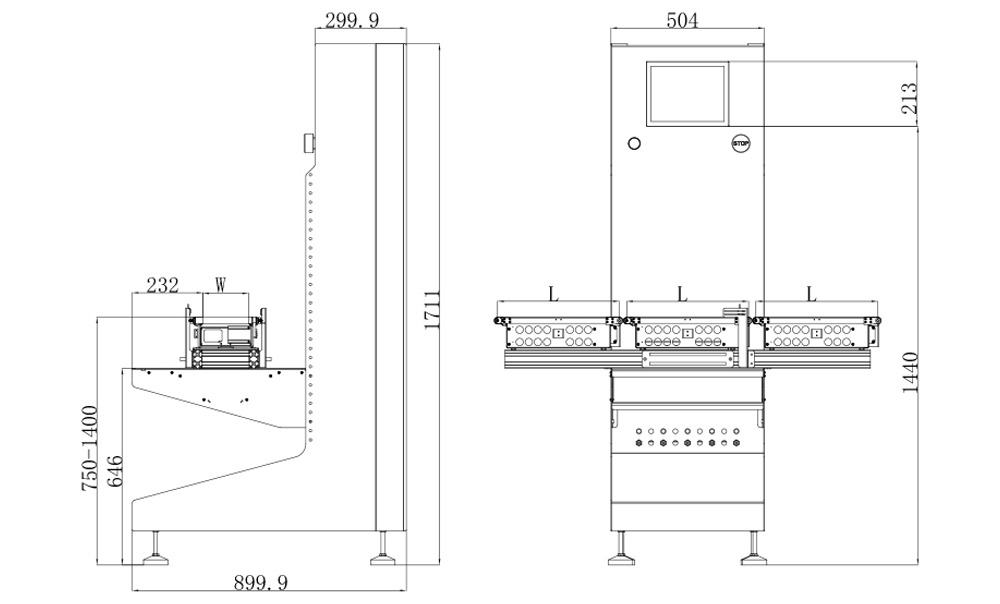

Dimensions：
