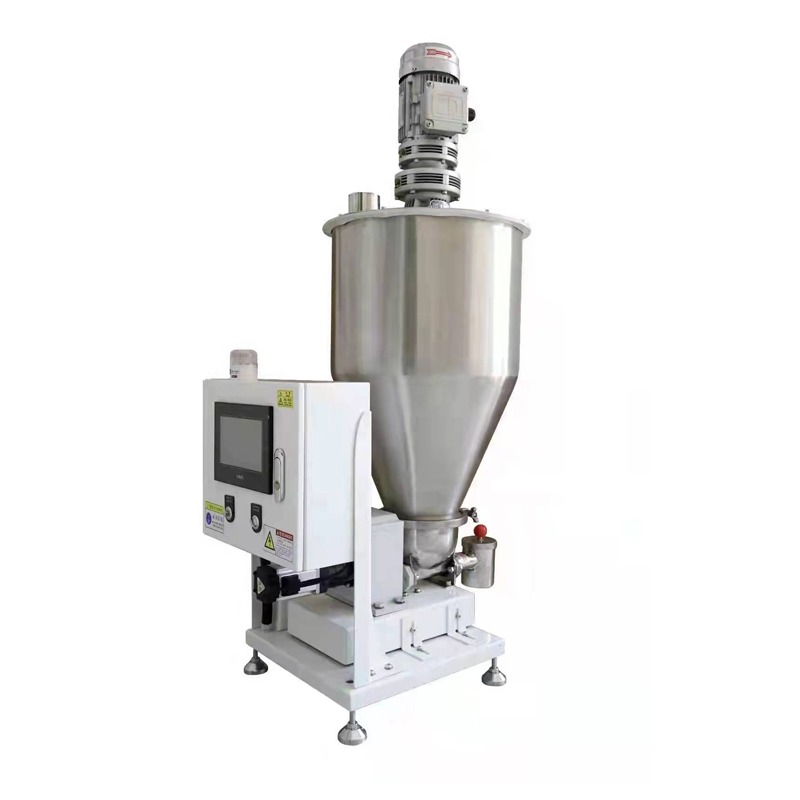

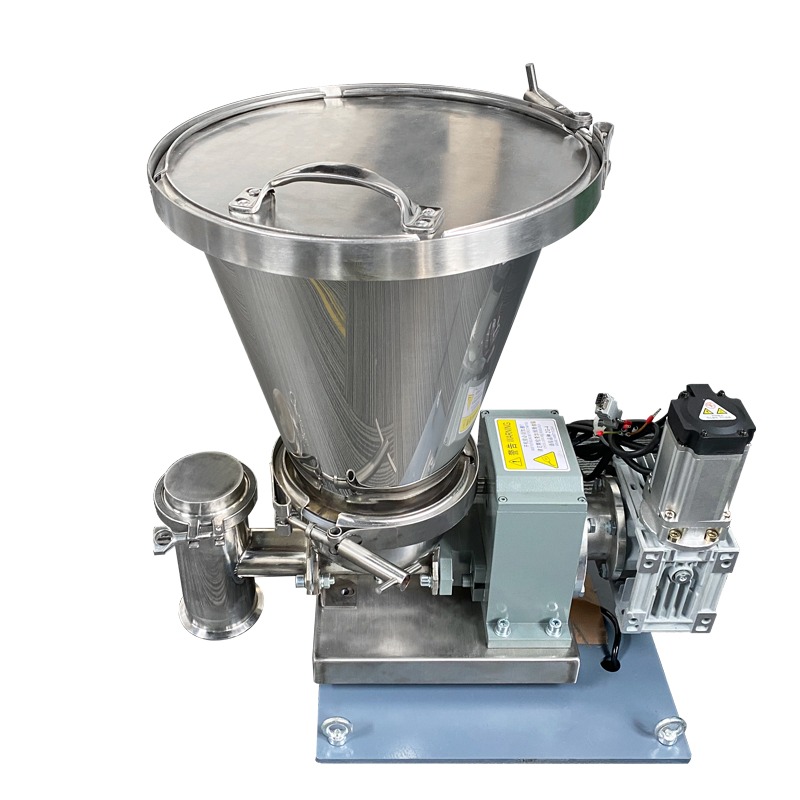

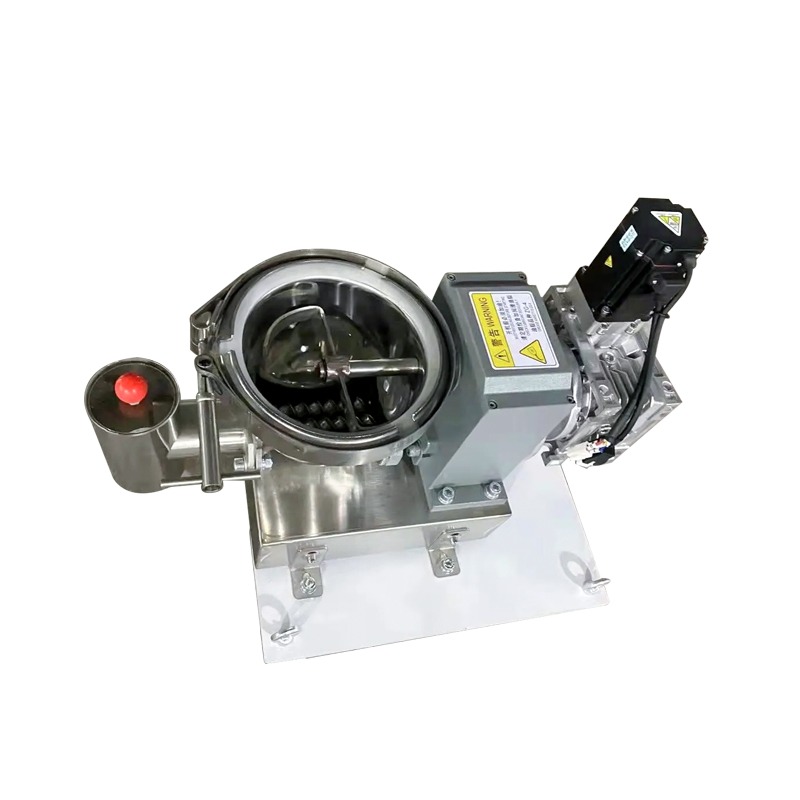

LSC Powder Granule Loss-In-Weight Scale Feeder
Short Description:
Loss of weight scale
Examples of suitable raw materials:
Granules / Resin Powder / Calcium Carbonate / Talc / Titanium Oxide / Carbon Black / Flake Crushed / Glass Fiber / Carbon Fiber / Wheat Flour / Corn Starch
Payment: T/T, L/C, PayPal
Features：
1. Independent research and development of W-DSP technology, higher feeding accuracy and stability, can achieve high-precision online micro-feeding.
2. The feeding part adopts stainless steel twin-screw, the screw does not stick to the material, has the function of self-cleaning, easy to disassemble, easy to clean, replace and maintain.
3. Horizontal agitation plus optional vertical agitation with optimized design has high anti-bridging performance.
4. Different models adopt a universal screw interface, which can easily replace different types of screws, and realize a wider feeding range of one equipment.
5. The speed fluctuation of the feeding motor is ±0.2%, the instantaneous flow accuracy of the material is ±0.2%, and the cumulative total is ±0.2%.
The feeding motors of the whole series are equipped with DS servo motors with higher resolution and planetary reducers as standard.
Specifications：
| Specification | Measure range L/H | A | B | C | DФ | EФ | H1 | H2 | L(1) | Accuracy% |
| (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| LSC-18 | 1-50 2-100 | 680 | 348 | 348 | 76 | 430 | 394 | 900 | 20/60 | ≤0.2 |
| LSC-28 | 5-2000 10-400 | 780 | 404 | 464 | 108 | 630 | 394 | 930 | 80 | ≤0.2 |
| LSC-38 | 10-500 20-1000 | 840 | 424 | 574 | 108 | 630 | 39
4 |
980 | 100 | ≤0.2 |

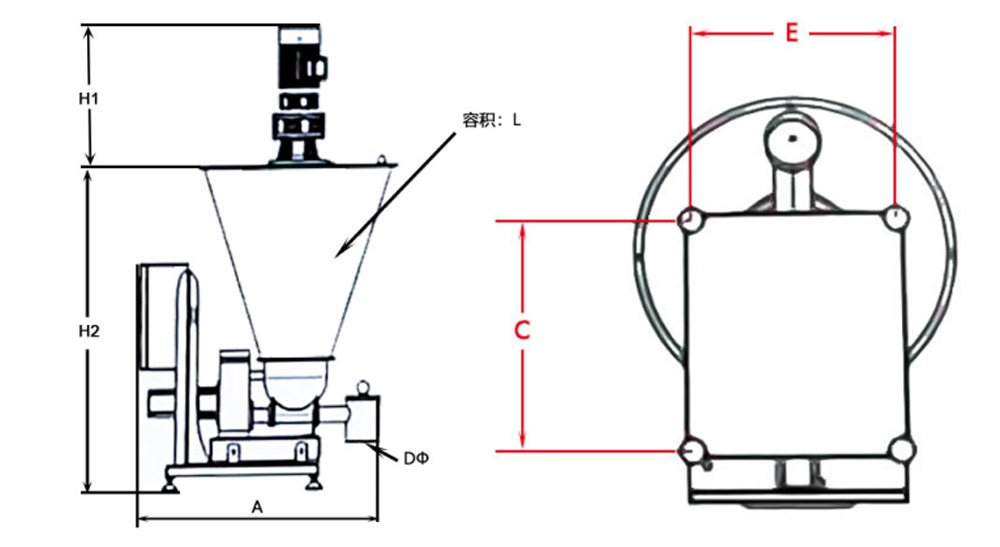

Dimensions：
