Short Description:

Engineers created this wire tension sensor using aluminum alloy. It has IP65 protection. It has flexible installation and provides stable force measurements from 200 g to 2000 g. It is suitable for food, pharmaceutical, and industrial process weighing and control applications.

Payment: T/T, L/C, PayPal

Features:

  1. Capacities (g): 200 to 2000
  2. Resistance strain measurement methods
  3. Compact structure, save the space
  4. Various installation ways: overlapping style or threaded style
  5. Many installations types can satisfy various needs
  6. It can accurately measure in the low tension
  7. Durable in use，Highly optimized for general use
  8. Roller is made of Aluminum

Applications:

  1. platformScales
  2. Packaging Scales
  3. Dosing scales
  4. Industries of food , Pharmaceuticals, industrial processweighing and control

Description:

LT tension sensor, made of aluminum alloy, uses resistance strain measurement principle. Compact shape design, stackable design, solid structure, strong versatility, and accurate measurement under low tension conditions. Various installation methods: stacked or through-hole, which can meet various installation needs. It is used for unwinding, rewinding and running tension detection, and the detection objects include wires, metal wires, glass fibers, rubber and composite materials, etc.

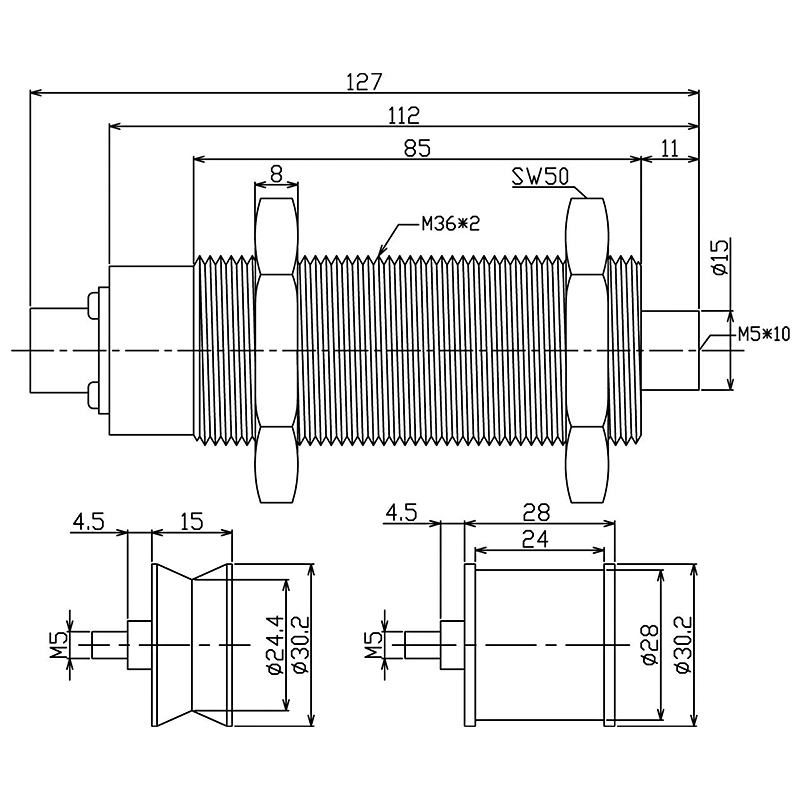

Dimensions:

LT Wire Tension Sensor for Food, Pharmaceutical and Process Weighing

Parameters:

Specifications:
Rated Load g 20,050,010,002,000
Rated Output mV/V 1
Zero Balance %R.O. ±1
Comprehensive Error %R.O. ±0.3
Compensated Temp. Range ‌℃ -10~+40
Operating Temp. Range ‌℃ -20~+70
Temp. effect/10℃ on output %R.O./10 ℃ ±0.02
Temp. effect/10℃ on zero %R.O./10 ℃ ±0.02
Recommended Excitation Voltage VDC 5-12
Maximum Excitation Voltage VDC 15
Input impedance Ω 380±10
Output impedance Ω 350±5
Insulation resistance MΩ ≥5000（50VDC）
Safe Overload %R.C. 150
Ultimate Overload %R.C. 300
Material Aluminum
Degree of protection IP65
The length of the cable m 3
Wiring code Ex: Red：＋ Black：–
Sig: Green：＋ White：–
Shield: Bare
