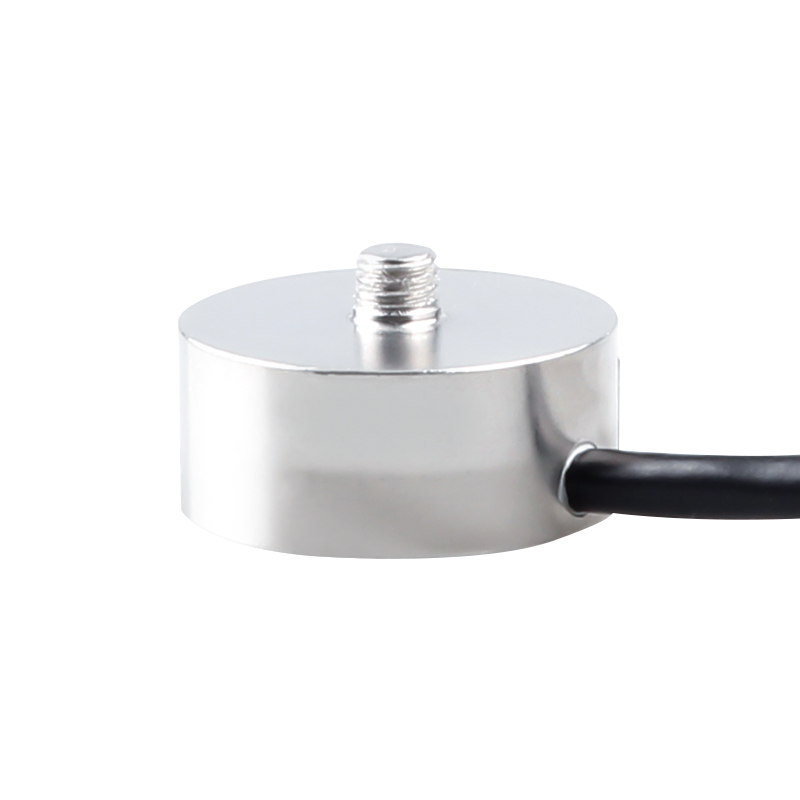

Short Description:

MDS Stainless Steel Miniature Button-Type Force Sensor comes from Labirinth Load Cell Manufacturers. It provides precise micro force measurements in a small design. Made from strong stainless steel and with IP65 protection, it can handle loads from 2 kg to 2000 kg. This makes it perfect for industrial, laboratory, and precision weighing tasks.

Features:

  1. Capacities (kg): 2 to 2000
  2. Force Transducer
  3. Compact structure, easy mounting
  4. Delicate structure, low profile
  5. Aluminum and Stainless Steel material
  6. Degree of protection reaches to IP65
  7. High comprehensive precision, high stability
  8. Compression Load Cell
  9. Diameter is 25.4mm, the height is less than 15mm
  10. For Static and Dynamic Applications
  11. Strain gauge Type Transducer

Applications:

  1. Suitable for force control and measurement
  2. It can be installed inside the instrument to monitor the force of the working process

Description:

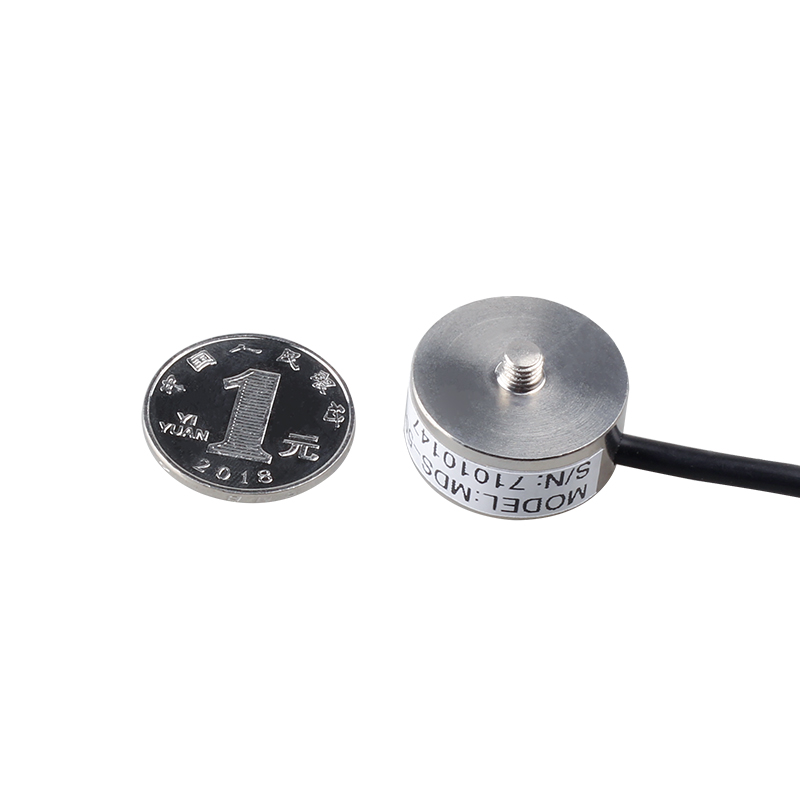

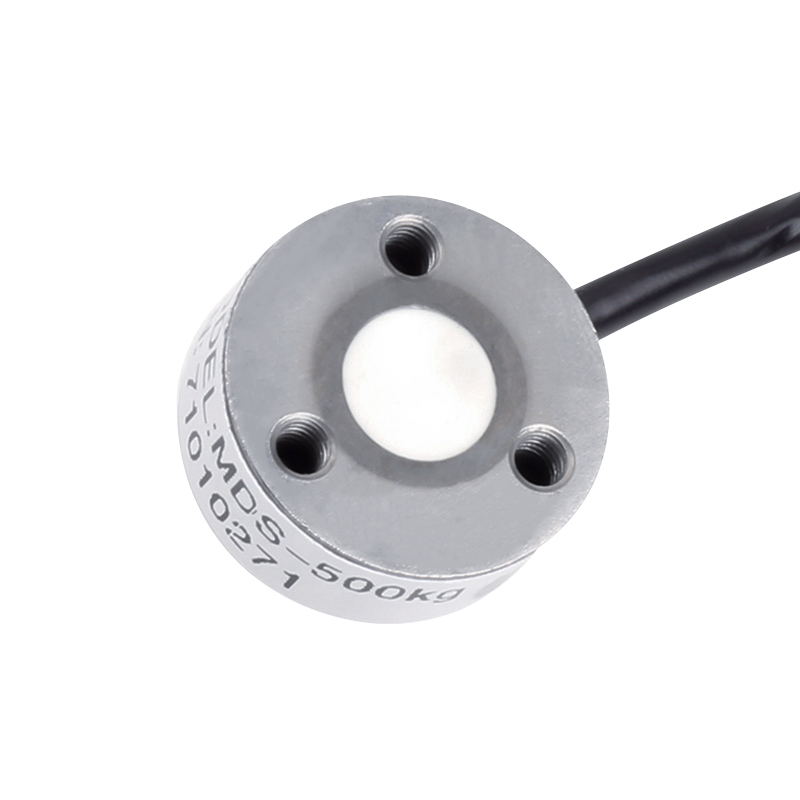

MDS type is a miniature force sensor, because its shape is similar to a button, it is also called a button sensor. It is made of stainless steel and can be used normally in a corrosive and humid environment. 15mm, diameter 25.4mm, suitable for use in narrow spaces, and can be installed inside the instrument to monitor the force of the working process.

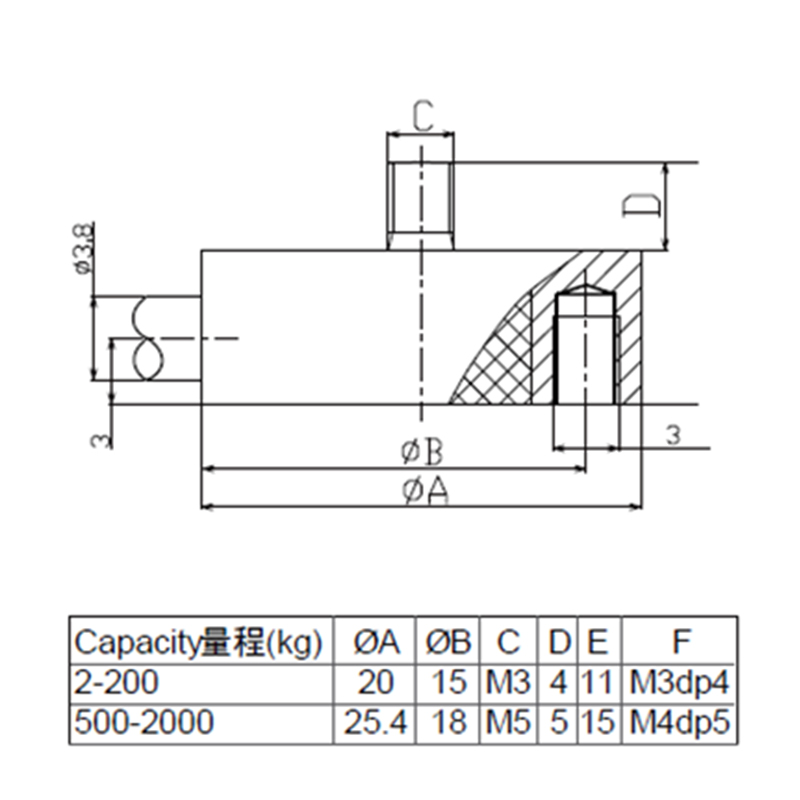

Dimensions:

MDS Compact Stainless Steel Miniature Button Force Sensor

Parameters:

Specifications:
Rated Load kg 7.5,15,20,30,50,75,100,150
Rated Output mV/V 2.0±0.2
Zero Balance %R.O. ±1
Creep after 30 minutes %R.O. ±0.02
Comprehensive Error %R.O. ±0.02
Compensated Temp. Range ‌℃ -10~+40
Operating Temp. Range ℃ -20~+70
Temp. effect/10℃ on output %R.O./10 ℃ ±0.02
Temp. effect/10℃ on zero %R.O./10 ℃ ±0.02
Recommended Excitation Voltage VDC 5-12
Input impedance Ω 410±10
Output impedance Ω 350±5
Insulation resistance MΩ ≥5000（50VDC）
Safe Overload %R.C. 150
Ultimate Overload %R.C. 200
Material Aluminum
Degree of protection IP65
The length of the cable m 2
Recommended Platform size mm 400*400
Tightening Torque N·m 7.5kg-30kg:7N·m  50kg-150kg:10N·m
Wiring code Ex: Red：＋ Black：–
Sig: Green：＋ White：–
Shield: Bare
