MDS Mini Button Force Sensor for Force Control
Short Description:
The MDS Mini Button Force Sensor by Labirinth is a small, stainless steel device. It’s made for force control tasks. This device has IP65 protection and measures from 2 kg to 2000 kg. It’s perfect for built-in installation in precision instruments.
Features:
- Capacities (kg): 2 to 2000
- Force Transducer
- Compact structure, easy mounting
- Delicate structure, low profile
- Aluminum and Stainless Steel material
- Degree of protection reaches to IP65
- High comprehensive precision, high stability
- Compression Load Cell
- Diameter is 25.4mm, the height is less than 15mm
- For Static and Dynamic Applications
- Strain gauge Type Transducer
Applications:
- Suitable for force control and measurement
- It can be installed inside the instrument to monitor the force of the working process
Description:

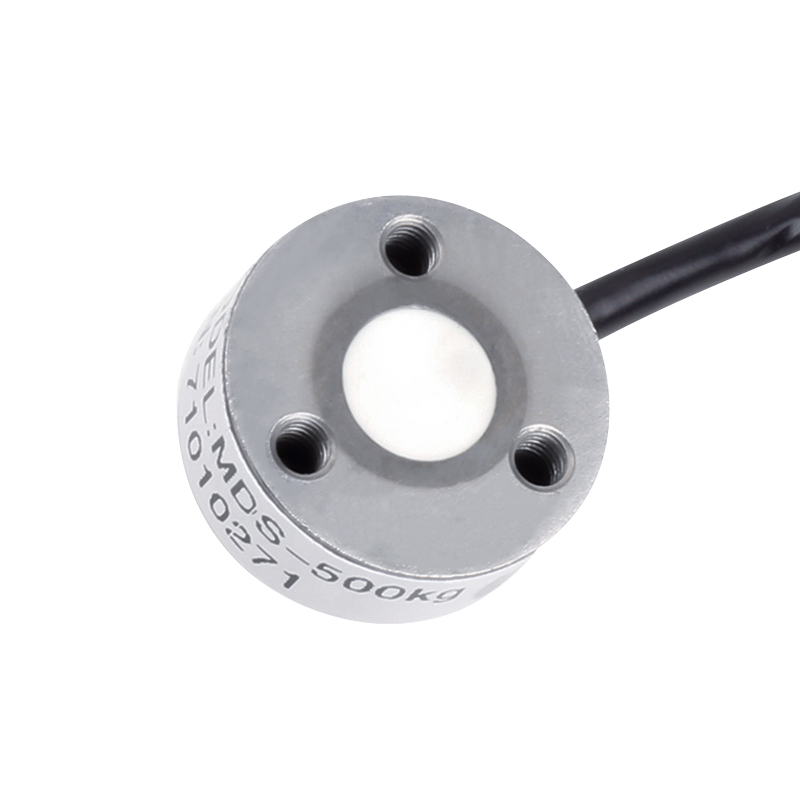

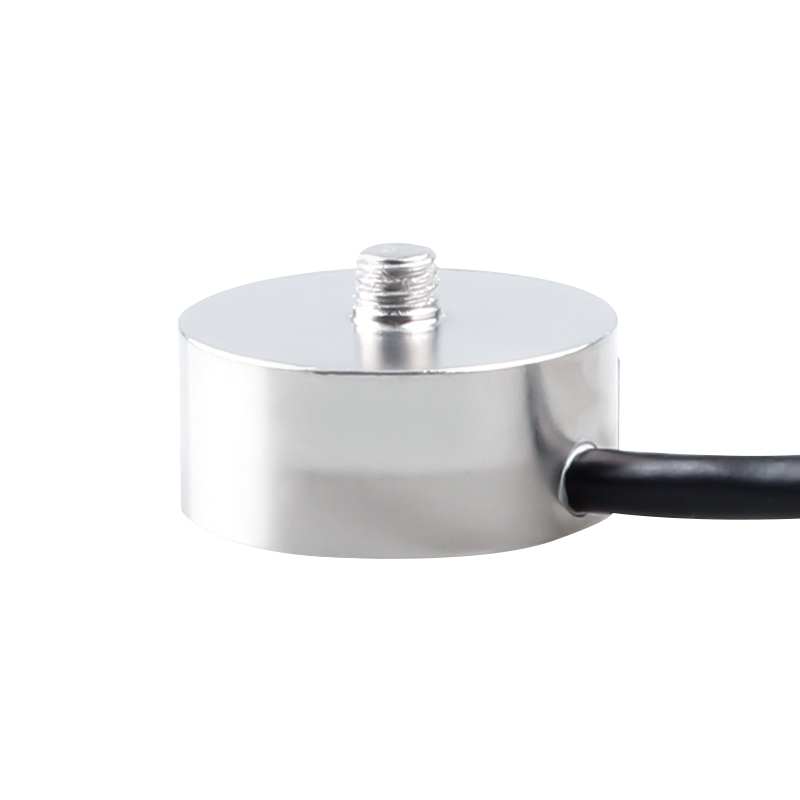

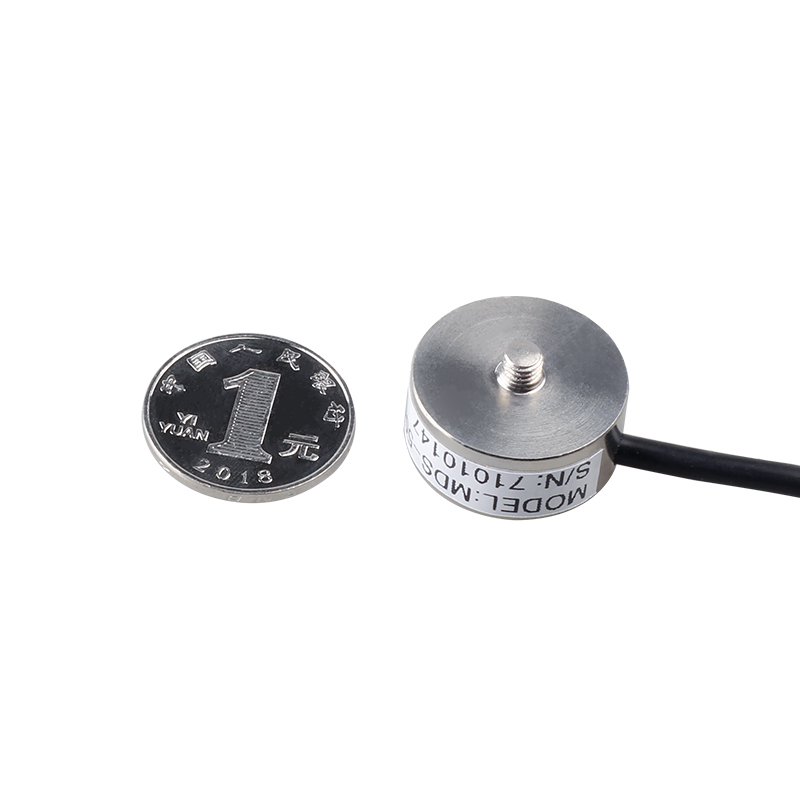

MDS type is a miniature force sensor, because its shape is similar to a button, it is also called a button sensor. It is made of stainless steel and can be used normally in a corrosive and humid environment. 15mm, diameter 25.4mm, suitable for use in narrow spaces, and can be installed inside the instrument to monitor the force of the working process.

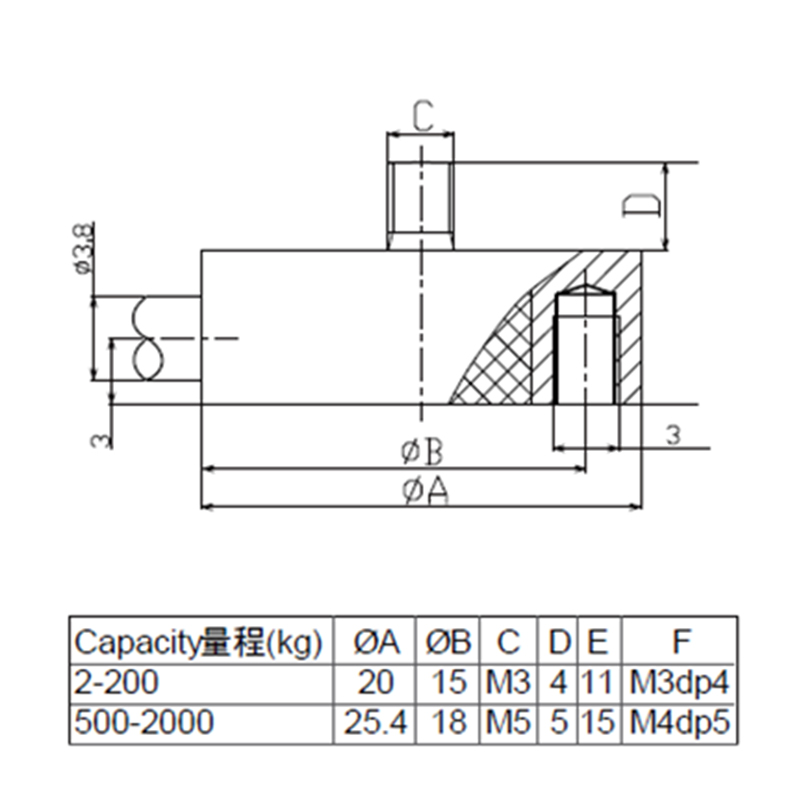

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 7.5,15,20,30,50,75,100,150 |
| Rated Output | mV/V | 2.0±0.2 |
| Zero Balance | %R.O. | ±1 |
| Creep after 30 minutes | %R.O. | ±0.02 |
| Comprehensive Error | %R.O. | ±0.02 |
| Compensated Temp. Range | ℃ | -10~+40 |
| Operating Temp. Range | ℃ | -20~+70 |
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
| Recommended Excitation Voltage | VDC | 5-12 |
| Input impedance | Ω | 410±10 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Aluminum | |
| Degree of protection | IP65 | |
| The length of the cable | m | 2 |
| Recommended Platform size | mm | 400*400 |
| Tightening Torque | N·m | 7.5kg-30kg:7N·m 50kg-150kg:10N·m |
