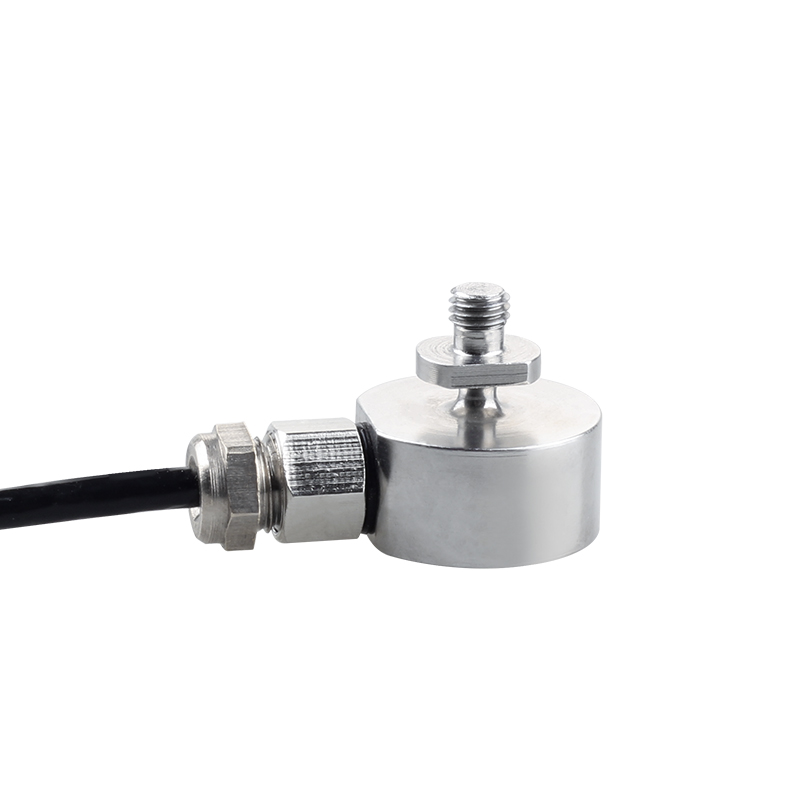

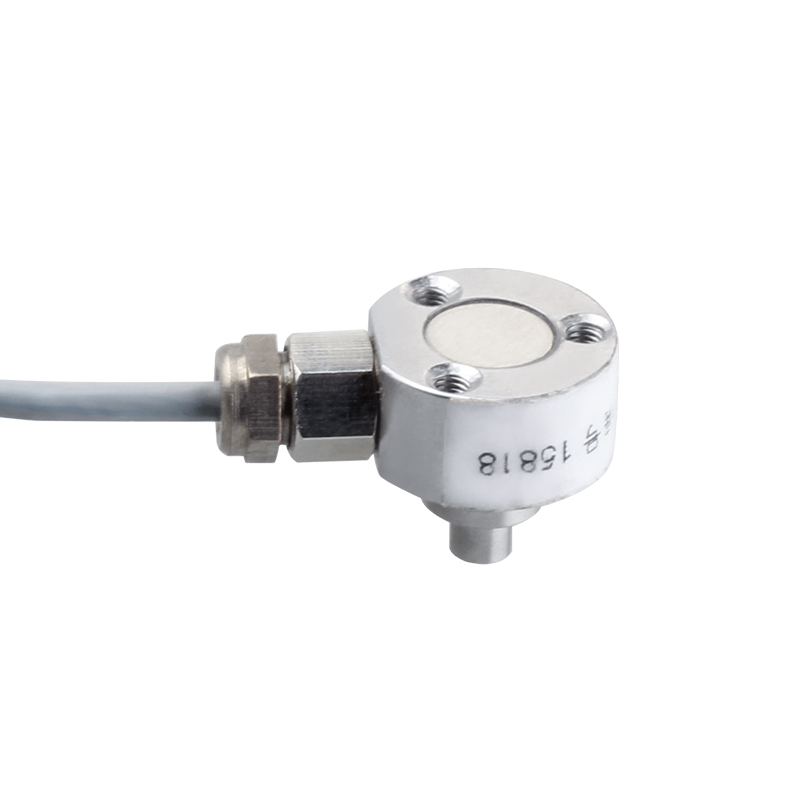

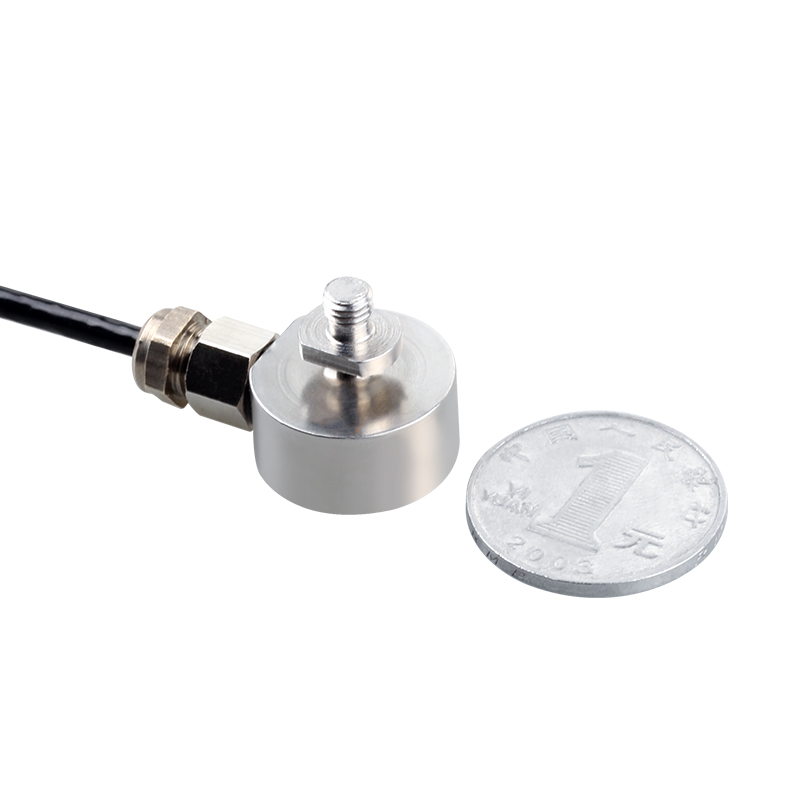

MDT Mini Load Cell for Compression and Tension
Short Description:
Miniature Button Load Cell by Labirinth – MDT Compression & Tension Micro Force Transducer. Engineers built this compact load cell using stainless steel. It has IP66 protection. It measures forces ranging from 5 kg to 50 kg with precision. This makes it ideal for industrial, lab, and precision weighing applications.
Features:
- Capacities (kg): 5 to 50
- Force Transducer
- Compact structure, easy mounting
- Delicate structure, low profile
- Stainless steel material, corrosion resistance
- Degree of protection reaches to IP66, High quality silica gel
- High comprehensive precision, high stability
- Compression and tension are available
Applications:
- Suitable for force control and measurement
- It can be installed inside the instrument to monitor the force of the working process
Description:
MDT is a miniature load cell, which is dual-purpose for tension and compression. It is made of stainless steel and can be used normally in corrosive and humid environments. It is small in size, compact in structure, easy to install, high in comprehensive accuracy, and good in stability. Inside the instrument, in order to monitor the force of the working process.

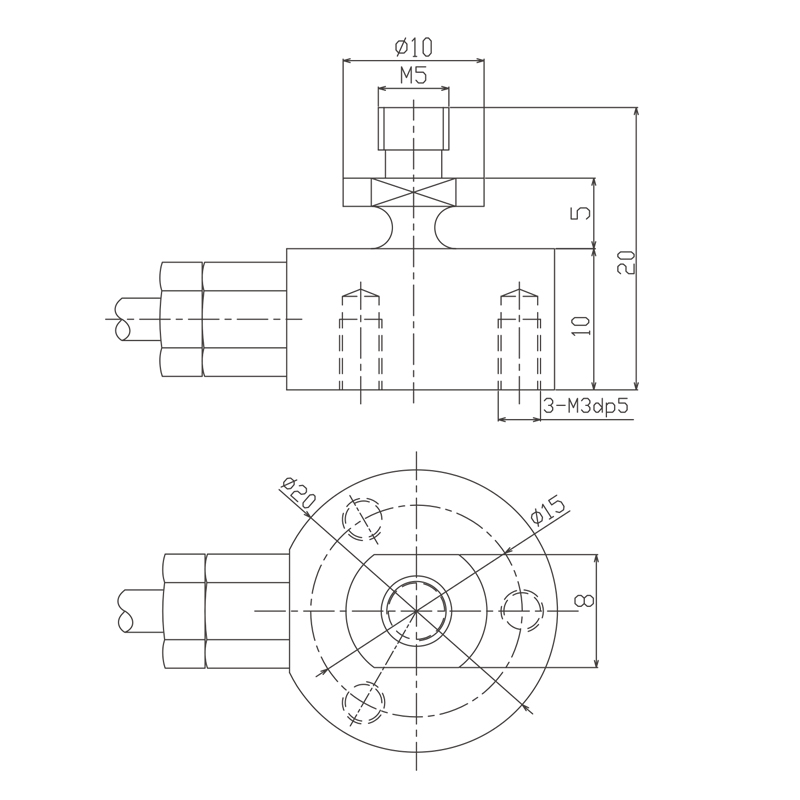

Dimensions:
Parameters:
| Specifications: | ||
| Rated Load | kg | 5,10,20,50 |
| Rated Output | mV/V | 1.6~1.8 |
| Zero Output | %F.S. | ±2 |
| Creep after 30 minutes | %F.S. | ±0.5 |
| Comprehensive Error | %F.S. | ±0.5 |
| Respeatability Error | %F.S. | ±0.3 |
| Temp. effect/10℃ on output | %F.S./10 ℃ | ±0.1 |
| Temp. effect/10℃ on zero | %F.S./10 ℃ | ±0.1 |
| Recommended Excitation Voltage | VDC | 3-5 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥5000（50VDC） |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Material | Stainless Steel | |
| Degree of protection | IP65 | |
| Wiring code | Ex: | Red：＋ Black：– |
| Sig: | Green：＋ White：– | |
| Shield: | Bare | |
