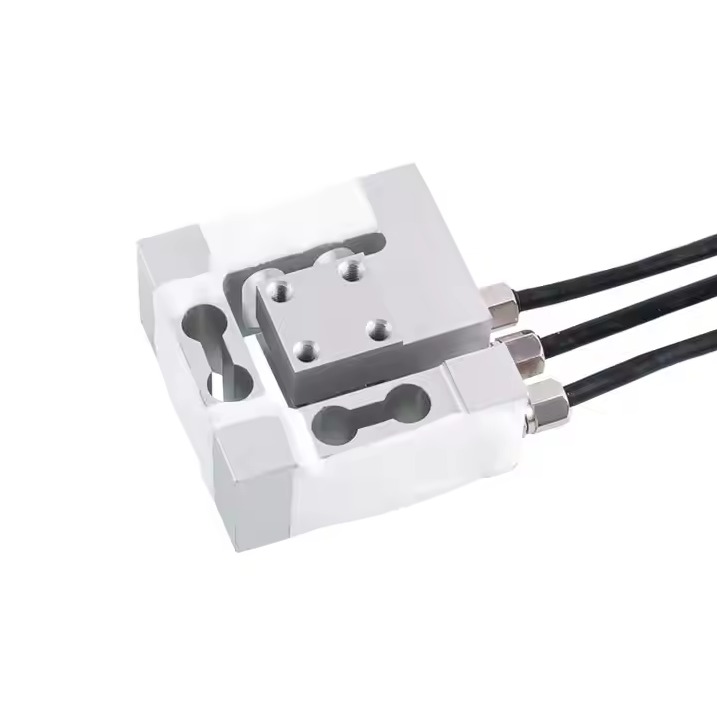

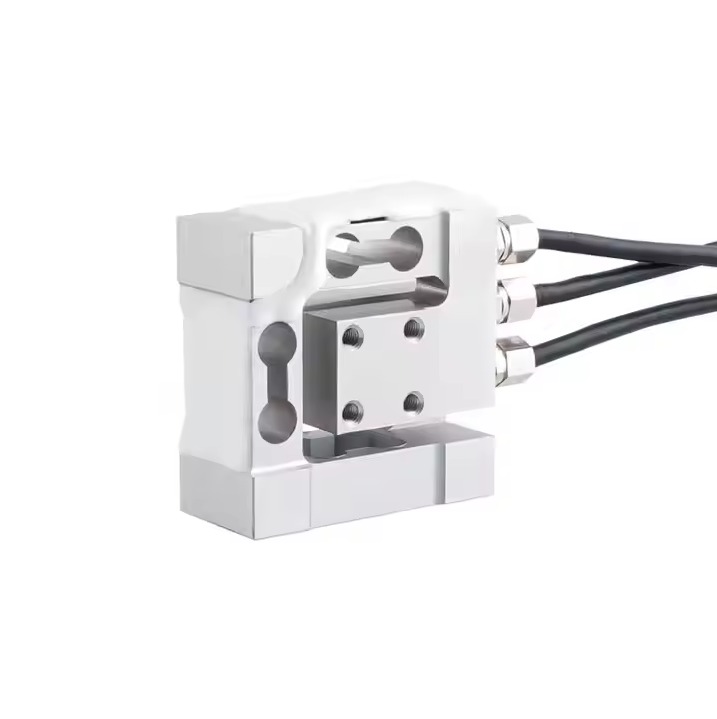

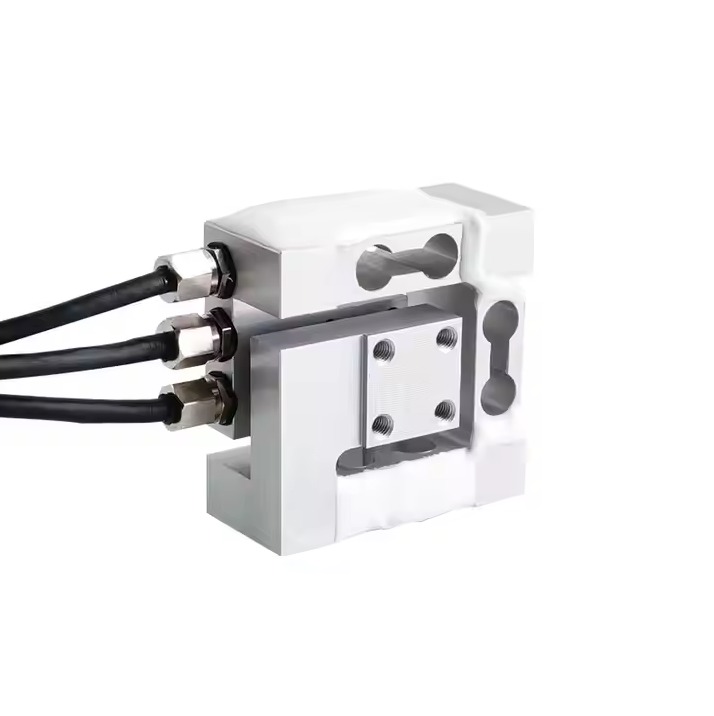

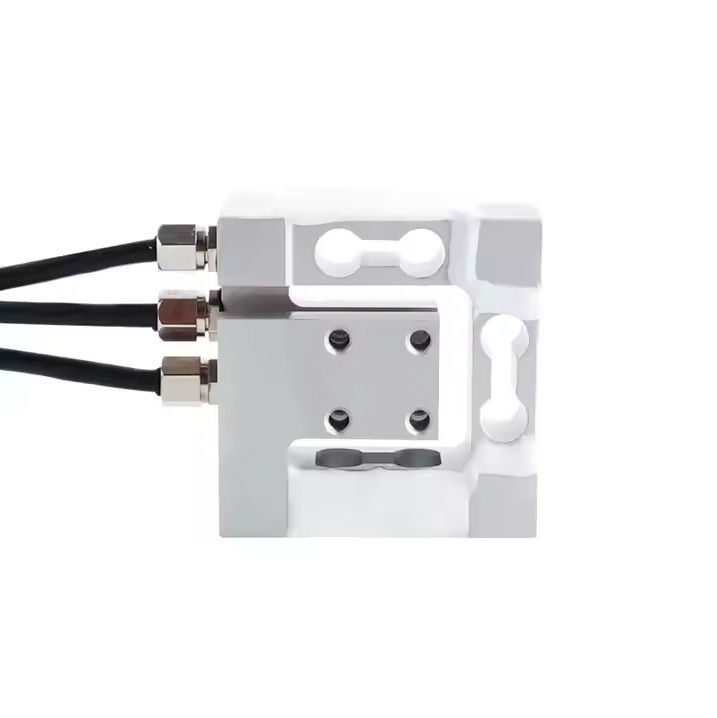

N40 High-Precision 3-Axis Grip Force Sensor
Short Description:
Multi-Axis Force Sensor from Labirinth, N40 High-Precision 3-Axis Sensor for Grip Control.
Payment: T/T, L/C, PayPal
Features：
1. Capacities (kg): 5-20kg
2. High comprehensive precision, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. High quality alloy steel with nickel plating
6. The four deviations has been adjusted
7. Shell installing
Applications：
The N40 3 Axial Force Sensor suits many uses. These include industrial automation and scientific research. Researchers can use it in aerospace, robotics, and automotive fields. Also, in medical (orthopedics and biomechanics) research. The N40 3 Axial Force Sensor provides precise force control in tough, complex settings. They make it from aerospace-grade aluminum. It measures forces along three axes (Fx, Fy, Fz). It provides reliable data for critical decisions.

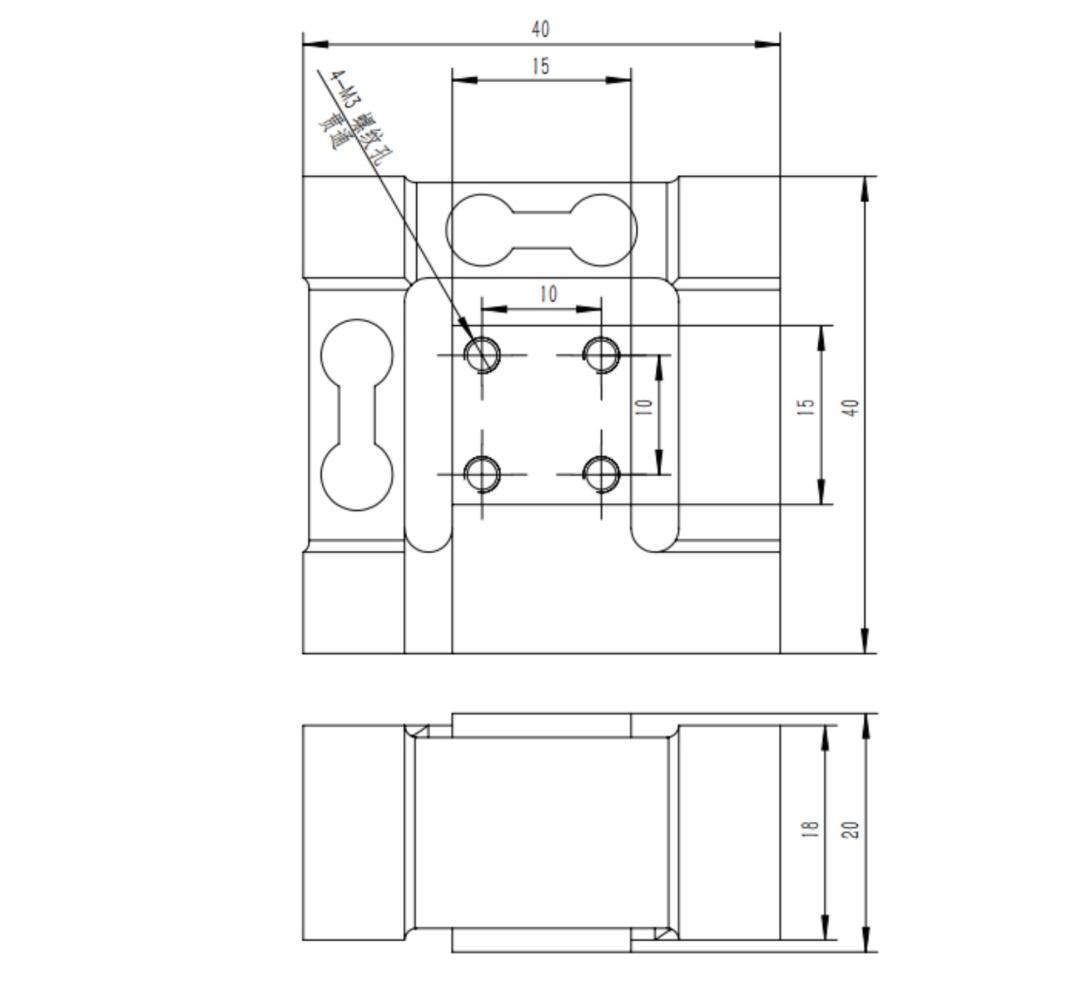

Dimensions：
Parameters：
| Specifications | ||
| Rated Load | kg | 5,10,20 |
| Sensitivity(X,Y,Z) | mV/V | 2.0±0.2 |
| Zero output | %FS | ≤±5 |
| Comprehensive Error (X,Y,Z) | %R.O | ±0.02 |
| Cross-talk(X,Y,Z) | %FS | ±2.2 |
| Repeatability | %R.O. | ±0.05 |
| Creep/30 minutes | %R.O. | ±0.05 |
| Excitation Voltage | VDC | 10 |
| Maximum Excitation Voltage | VDC | 15 |
| Output resistance | Ω | 350±3 |
| Insulation resistance | MΩ | ≥3000(50VDC) |
| Safe Overload | %R.C | 150 |
| Ultimate Overload | %R.C | 200 |
| Material | Aluminum Alloy | |
| Degree of protection | IP65 | |
| The length of the cable | m | 3 |
| Wiring code | Ex. | Red+Black- |
| Sig: | Green:+White- | |
