QS1 Double Shear Beam Load Cell for Truck and Rail Scales
Short Description:

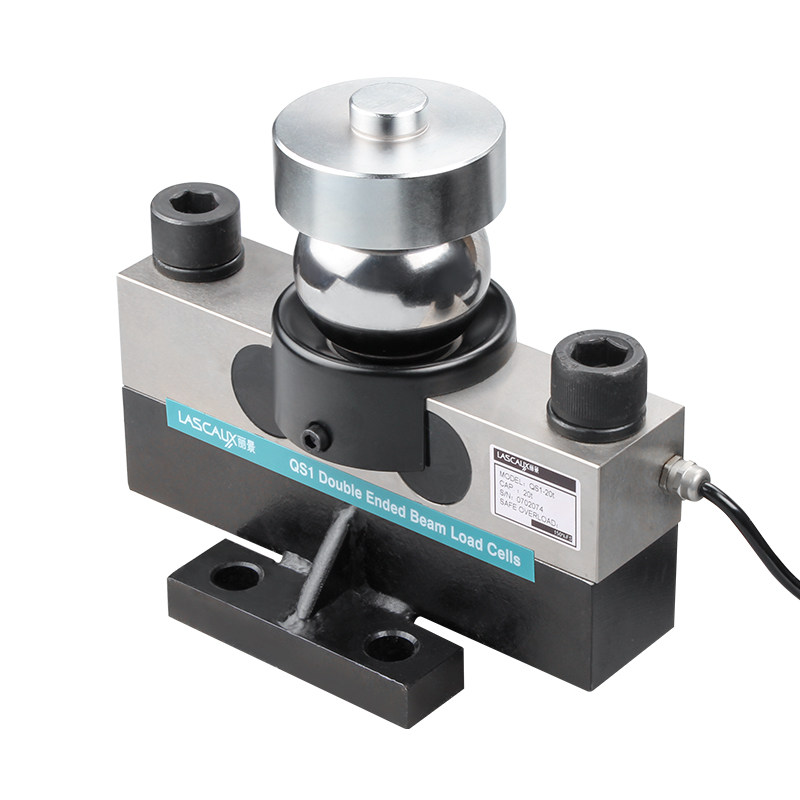

The QS1 double-ended shear beam load cell from Labirinth load cell manufacturer is made of alloy steel with IP66 protection. Designed for truck scales, rail scales, and bridge weighing applications, it offers a weighing capacity ranging from 10 ton to 30 ton.
Features：
• Range: 10t…30t

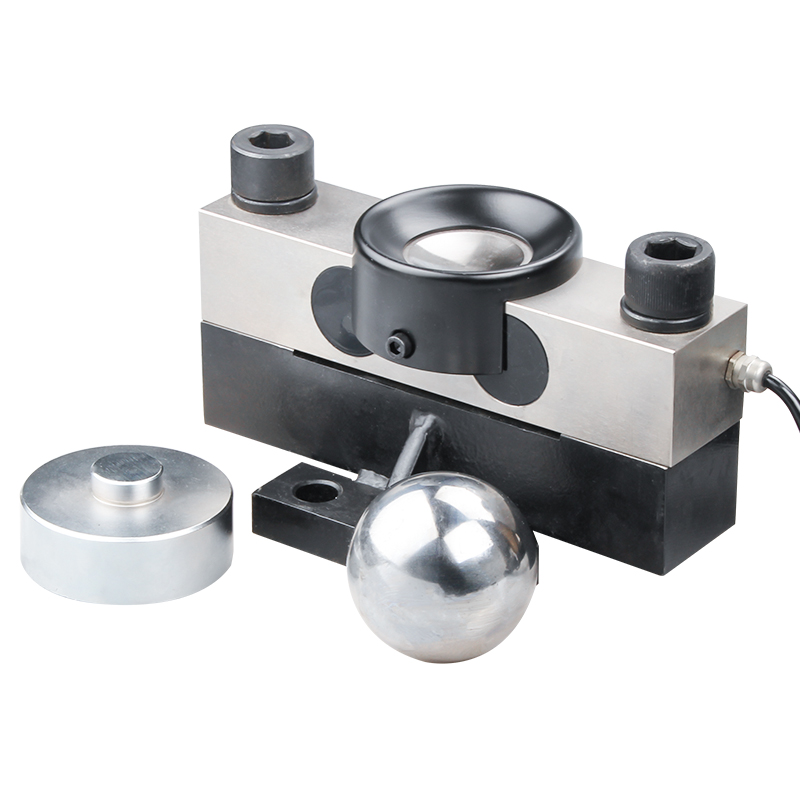

• Automatic reset and centering with steel ball and pressure head
• High overall accuracy and good interchangeability
• Good long-term stability
• High-quality alloy steel, nickel-plated surface
• IP66 protection grade
Applications：
• Truck scale
• Railway scale
• Floor scale
• Hopper/silo/tank scale
Description:

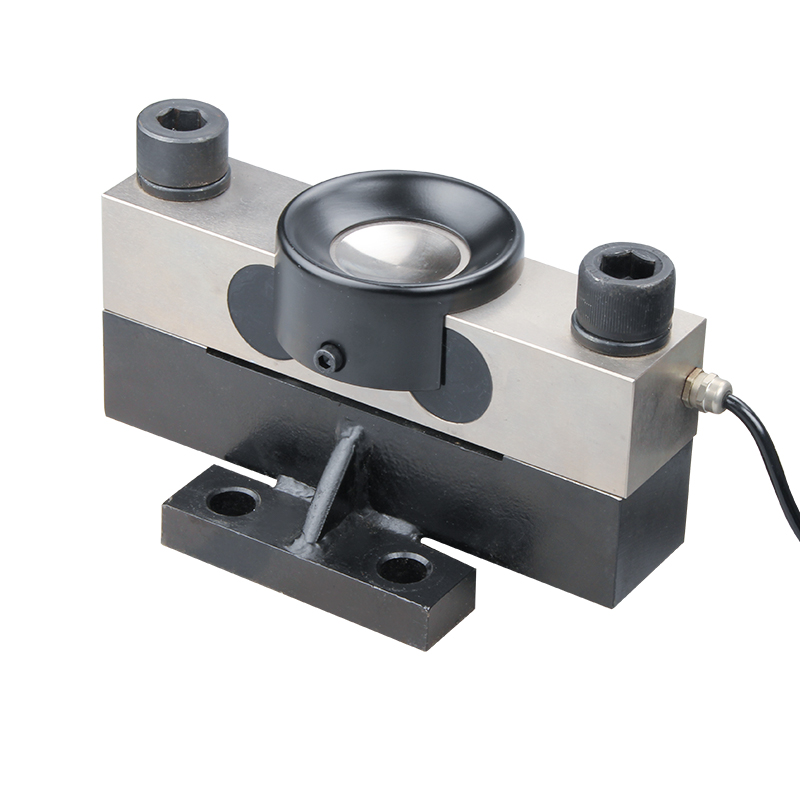

QS1 double shear beam weighing sensor. Made of alloy steel, nickel-plated surface. Automatic reset and centering with steel ball and pressure head. High overall accuracy, good long-term stability and good interchangeability. Designed for truck scale, railroad scale and floor scale. Can also be used for hopper scale and various special scales.
Dimensions:
Parameters:
| Specifications: | ||||
| Rated Load | t | 10,15,20,25,30 | ||
| Rated Output | mV/V | 2.0±0.0050 | ||
| Zero Balance | %R.O. | ±1 | ||
| Creep after 30 minutes | %R.O. | ±0.03 | ||
| Comprehensive Error | %R.O. | ±0.03 | ||
| Compensated Temp. Range | ℃ | -10~+40 | ||
| Operating Temp. Range | ℃ | -20~+70 | ||
| Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 | ||
| Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 | ||
| Recommended Excitation Voltage | VDC | 5-12 | ||
| Input impedance | Ω | 770±10 | ||
| Output impedance | Ω | 700±5 | ||
| Insulation resistance | MΩ | ≥5000（50VDC） | ||
| Safe Overload | %R.C. | 150 | ||
| Ultimate Overload | %R.C. | 300 | ||
| Material | Alloy Steel | |||
| Degree of protection | IP66 | |||
| The length of the cable | m | 13 | ||
| Wiring code | Ex: | Red：＋ Black：– | ||
| Sig: | Green：＋ White：– | |||
