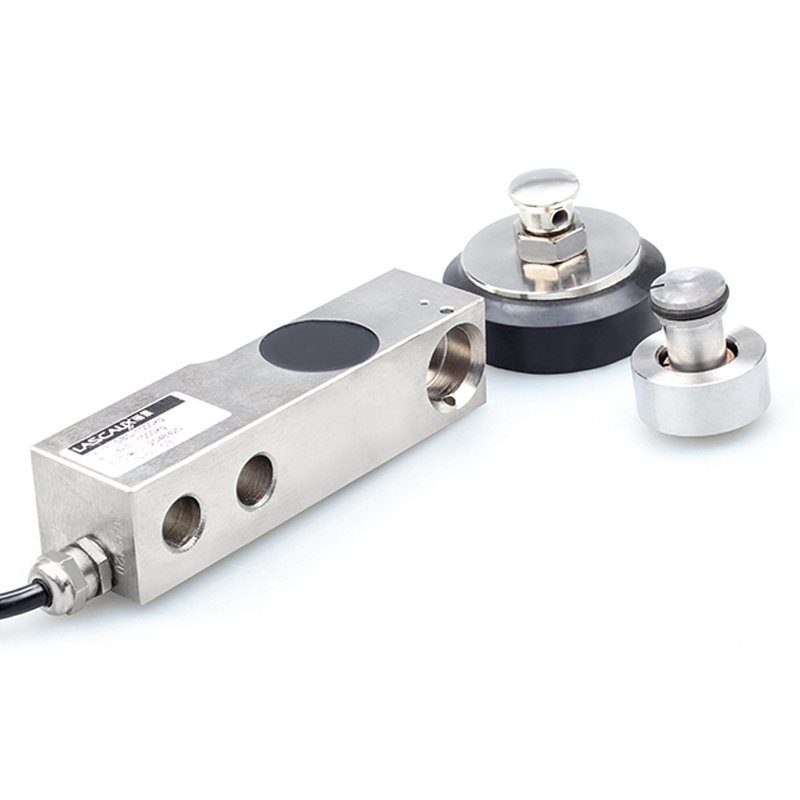

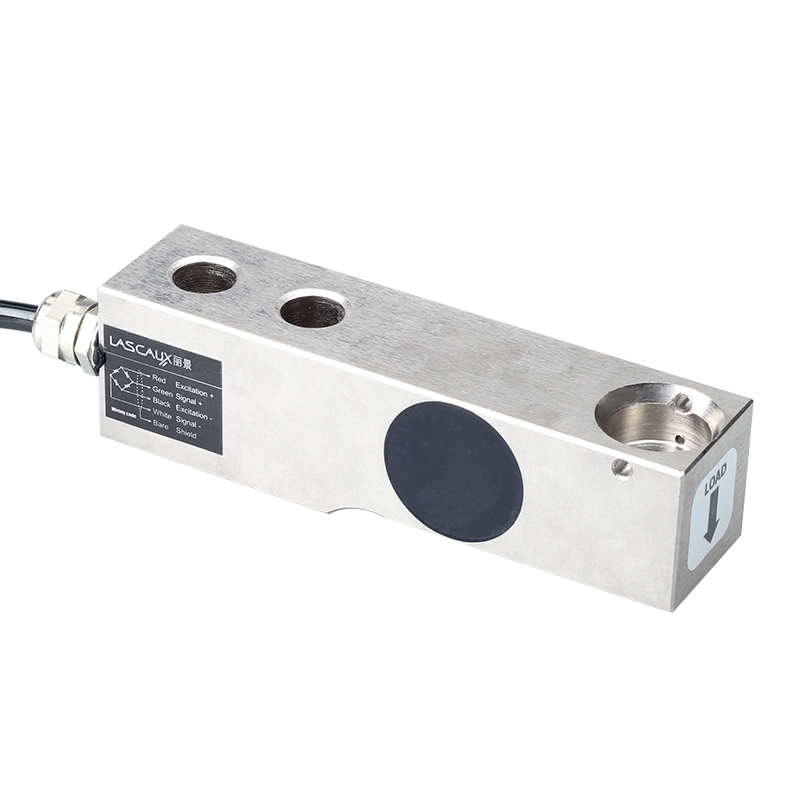

SBC Shear Beam Load Cell for Small Weighbridge & Mixer Systems
Short Description:
Labirinth shear beam load cell manufacturers produce the SBC small weighbridge and mixer station shear beam load cell using stainless steel with an IP68 protection rating. The weighing capacity ranges from 0.5 tons to 5 tons.
Features:
- Capacities (t): 0.5 to 5
- Compact structure, easy to install
- High comprehensive precision, high stability
- Stainless Steel material
- Degree of protection reaches to IP68
- Module installing
Applications:
- Hopper scales, tank scales
- Belt scales, packing scales
- Mixing Station
- Ingredient weighing control in chemical, food, pharmaceutical and other industries
Description:
SBC cantilever beam load cell, wide range, optional from 0.5t to 5t, compact structure, easy installation, made of 40CrNiMoA alloy steel, with A indicating that it is a high-grade high-quality steel, and the impurity content of this material will be lower than that of 40CrNiMo Some have good processability, small processing deformation and good fatigue resistance. Stainless steel material is optional, one end is fixed, one end is loaded, and can be used in multiples. With the corresponding installation accessories, it can be applied to small weighbridges or assembled into modules for use in tanks, tanks and other equipment. It has strong anti-eccentric load capacity.

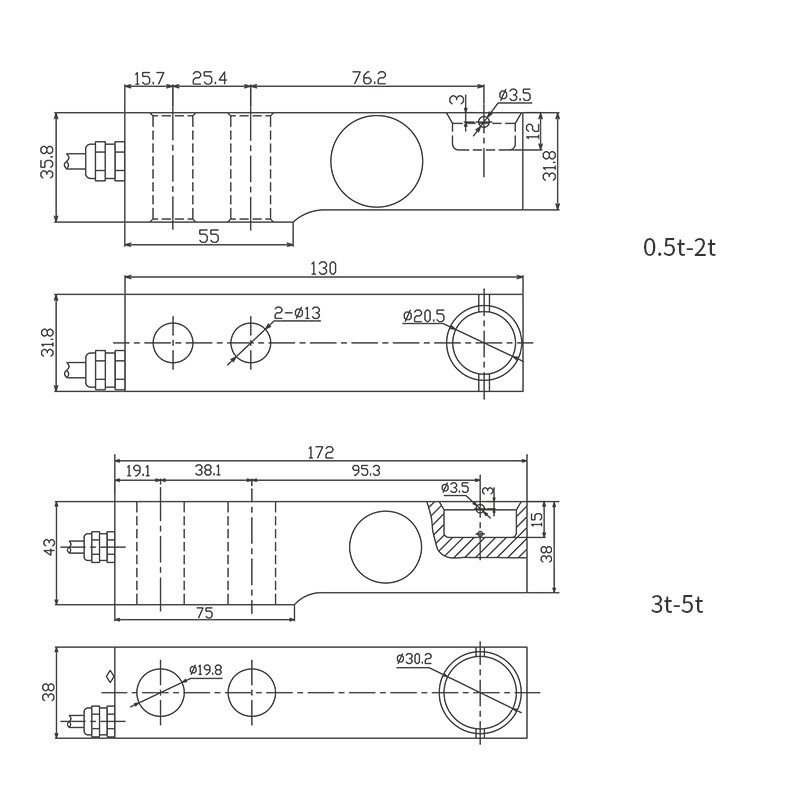

Dimensions:
