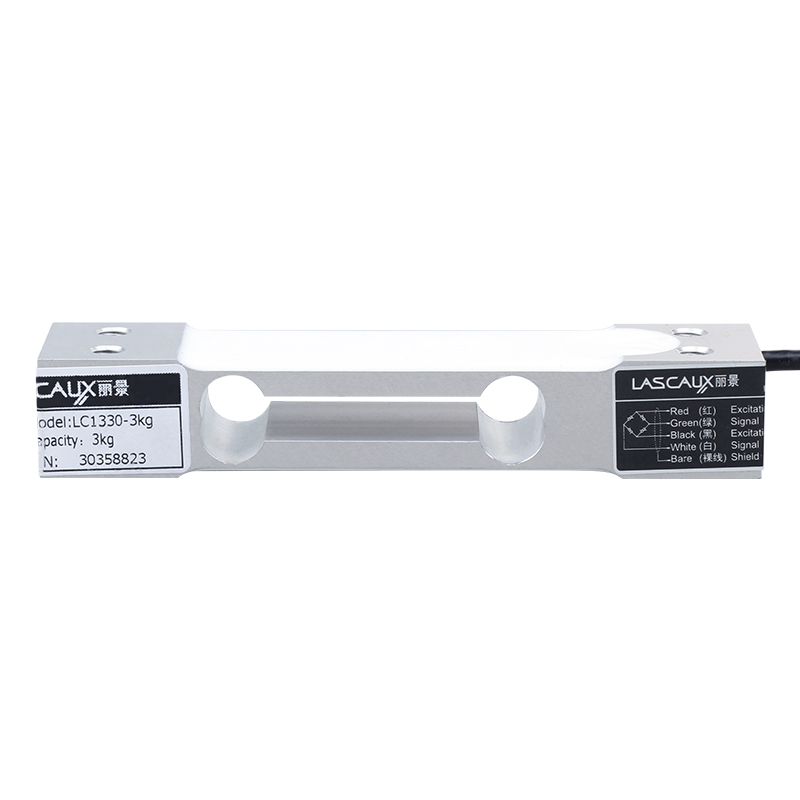

LC1330 Single Point Load Cell

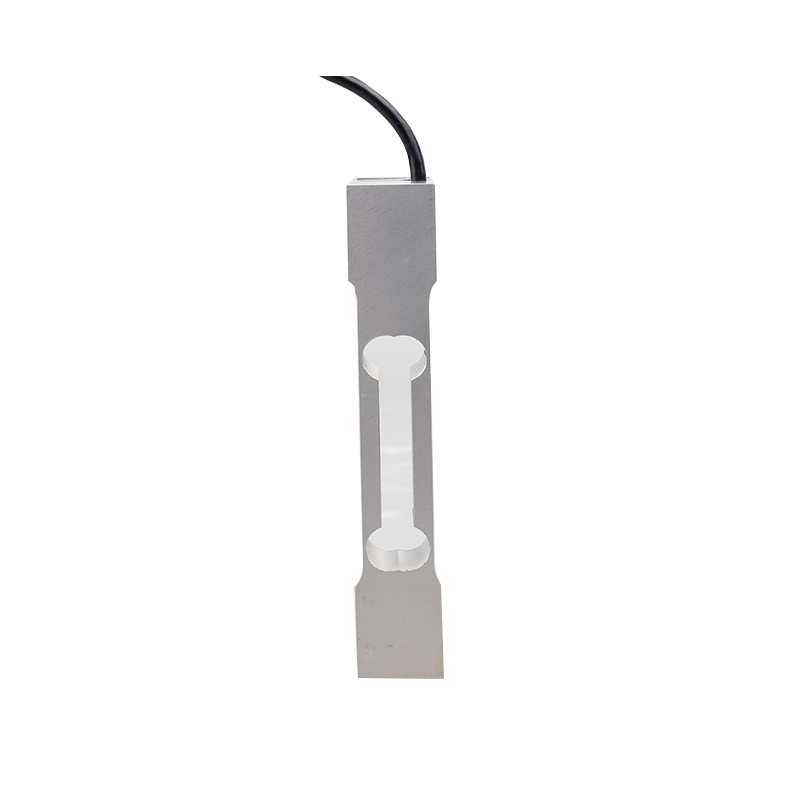

LC1330 Single Point Load Cell

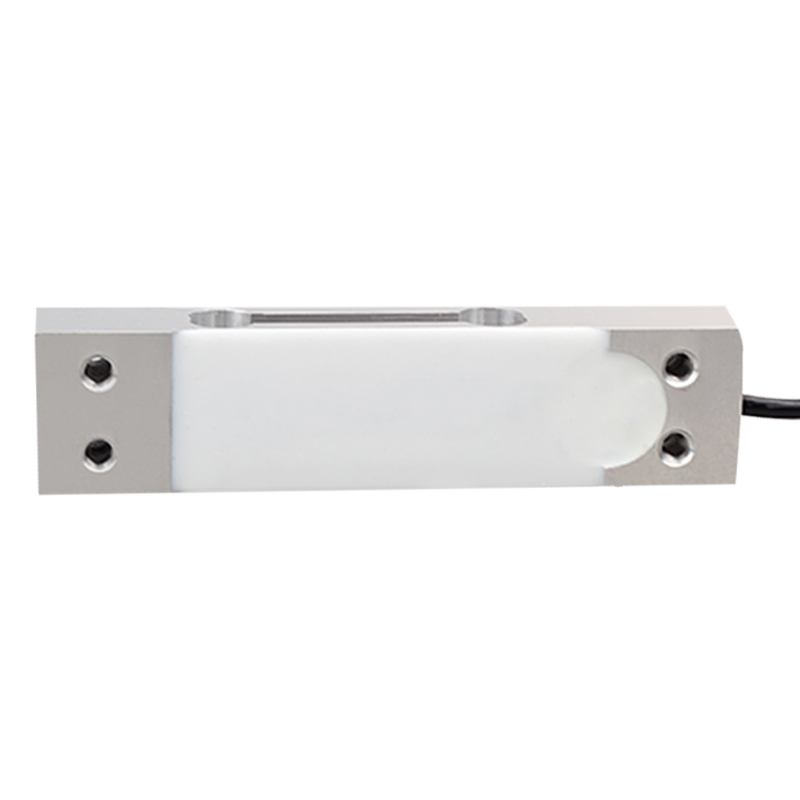

LC1330 Single Point Load Cell

Single Point Load Cell LC1330 For Platform Scale

Short Description:

The LC1330 is a low-profile load cell made by Labirinth. It’s built for single point use in platform scales. It’s made from strong aluminum and has IP65 protection. This keeps it safe from dust and water. The LC1330 can weigh from 3 kg to 50 kg. It provides stable, accurate, and consistent measurements. This makes it great for many industrial weighing tasks.

Features:

  1. Capacities : 3 to 50kg
  2. High comprehensive precision, high stability
  3. Compact structure, easy to install
  4. Small size with low profile
  5. Anodized Aluminum Alloy
  6. The four deviations has been adjusted
  7. Recommended Platform size: 300mm*300mm

Applications:

  1. Electronic Scales, Counting Scales
  2. Packaging Scales,Postal Scales
  3. Unmanned retail cabinet
  4. Industries of Foods, Pharmaceuticals, industrial process weighing and control

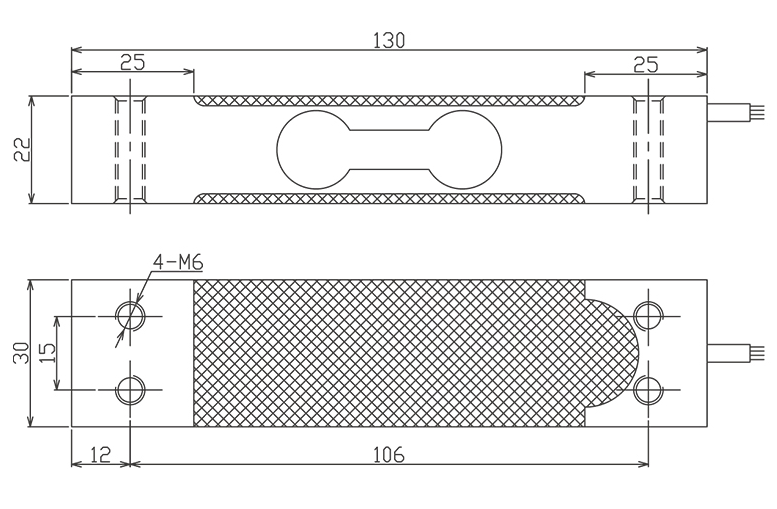

Description: LC1330 is a high-precision low-range single point load cell, 3kg to 50kg, made of aluminum alloy, surface anodized, simple structure, easy to install, good bending and torsion resistance, protection level is IP66, can be applied in many in a complex environment. The four-corner deviation has been adjusted, and the recommended table size is 300mm*300mm. It is mainly suitable for weighing systems such as postage scales, packaging scales, and small platform scales. It is also one of the ideal sensors for the unmanned retail industry. Dimensions: LC1330 Single Point Load Cell Parameters:

Specifications:
Rated Load kg 3,6,10,15,20,30,50
Rated Output mV/V 2.0±0.2
Zero Balance %R.O. ±1
Comprehensive Error %R.O. ±0.02
Compensated Temp. Range ‌℃ -10~+40
Operating Temp. Range ℃ -20~+70
Temp. effect/10℃ on output %R.O./10 ℃ ±0.02
Temp. effect/10℃ on zero %R.O./10 ℃ ±0.02
Recommended Excitation Voltage VDC 5-12
Maximum Excitation Voltage VDC 15
Input impedance Ω 410±10
Output impedance Ω 350±5
Insulation resistance MΩ ≥5000（50VDC）
Safe Overload %R.C. 150
Ultimate Overload %R.C. 200
Material Aluminum
Degree of protection IP65
The length of the cable m 0.4
Recommended Platform size mm 300*300
Tightening Torque N·m 3kg-30kg:7N·m  50kg:10N·m
Wiring code Ex: Red：＋ Black：–
Sig: Green：＋ White：–
