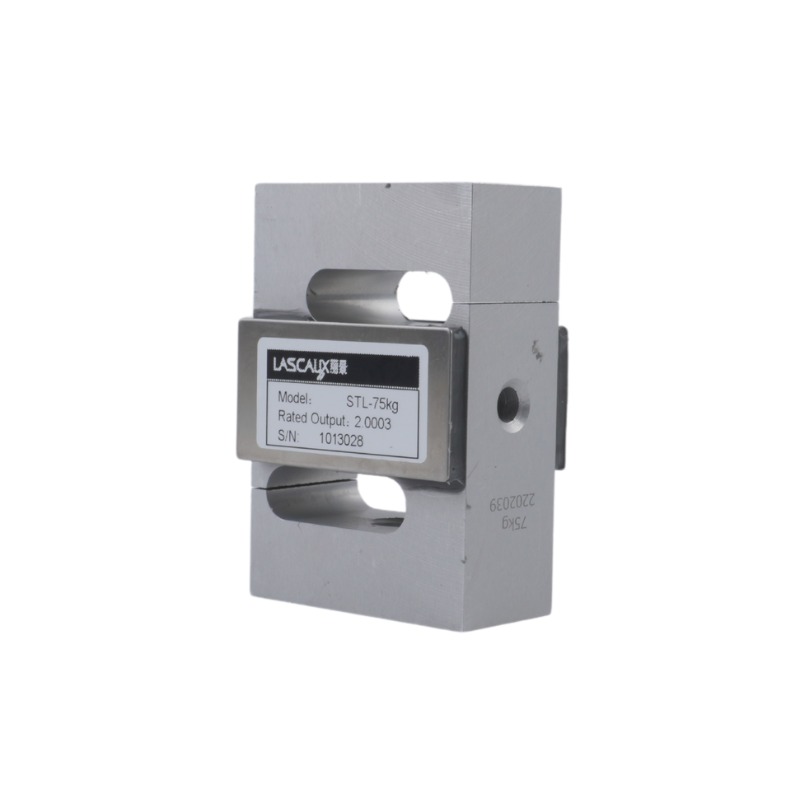

STL S Type Alloy Steel Load Cell For Tank Scales
Short Description:
Our STL S Type Alloy Steel Load Cell for Tank Scales gives accurate and reliable weight readings for industry. Built with durable alloy steel, it delivers reliable performance in harsh environments. This load cell is perfect for weighing tanks and vessels. It helps with material control, boosts operational efficiency, and enhances measurement accuracy.
Features：
Load Cell Range: 2kg…50kg
Compact structure, easy to install
Bidirectional force measurement, both tension and compression
High overall accuracy, good long-term stability
Aluminum alloy material, anodized surface
Protection level IP65
Applications：
Push-pull force gauge
Pull-pressure test
Description：
The S-type load cell is named for its special shape. It is a tension and compression dual-purpose sensor. STP is made of aluminum alloy, anodized surface, and glue-sealed. It is small in size and light in weight. It can be used alone with a transmitter for tension and pressure testing.
Dimensions：
Parameters：
| Specification | ||
| Specification | Value | Unit |
| Rated load | 2,5,10,20,50 | kg |
| Rated output | 1(2kg),2(5-50kg) | mV/V |
| Zero balance | ±1 | %R.O. |
| Comprehensive Error | ±0.05 | %R.O. |
| Repeatability | ±0.05 | %R.O. |
| Creep (after 30 minutes) | ±0.05 | %R.O. |
| Normal operating temperature range | -10~+40 | ℃ |
| Allowable operating temperature range | -20~+70 | ℃ |
| Effect of temperature on zero point | ±0.02 | %R.O./10℃ |
| Effect of temperature on sensitivity | ±0.02 | %R.O./10℃ |
| Recommended excitation voltage | VDC | |
| Input impedance | 350±5 | Ω |
| Output impedance | 350±3 | Ω |
| Insulation Resistance | ≥5000(50VDC) | MΩ |
| Safe overload | 150 | %R.C. |
| Limit overload | 200 | %R.C. |
| Material | Aluminum | |
| Protection Class | IP65 | |
| Cable length | 0.2 | m |
